FOD4108 Series

Triac Driver Output Optocoupler, 6-Pin DIP 800V Zero Crossing

Catalog

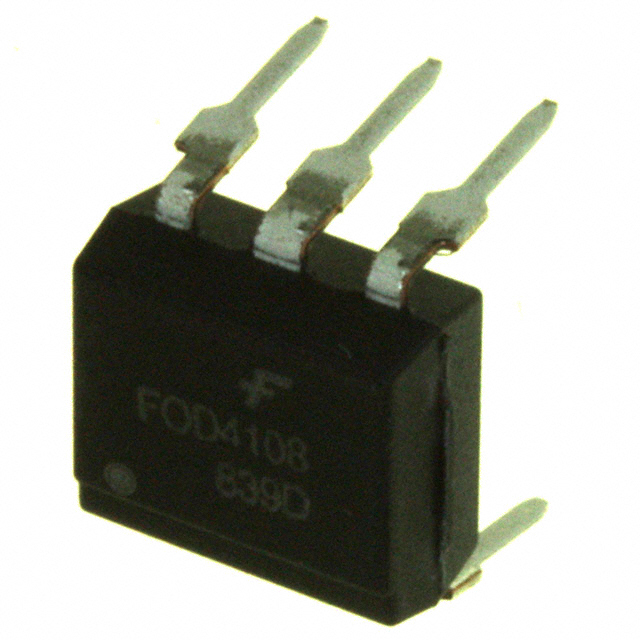

Triac Driver Output Optocoupler, 6-Pin DIP 800V Zero Crossing

Part	Supplier Device Package	Turn On Time	Number of Channels	Voltage - Off State	Current - LED Trigger (Ift) (Max) [Max]	Voltage - Forward (Vf) (Typ)	Output Type	Current - DC Forward (If) (Max) [Max]	Approval Agency	Package / Case	Package / Case	Package / Case	Current - Hold (Ih)	Static dV/dt (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case
ON Semiconductor FOD4108T	6-DIP	60 µs	1	800 V	2 mA	1.25 V	Triac	30 mA	CSA UL	6-DIP	10.16 mm	10.16 mm	500 µA	10 kV/µs	100 °C	-55 °C	Through Hole
ON Semiconductor FOD410V	6-DIP	60 µs	1	600 V	2 mA	1.25 V	Triac	30 mA	CSA UL VDE	6-DIP		7.62 mm	500 µA	10 kV/µs	100 °C	-55 °C	Through Hole	0.3 in
ON Semiconductor FOD4108SD	6-SMD	60 µs	1	800 V	2 mA	1.25 V	Triac	30 mA	CSA UL	6-SMD Gull Wing			500 µA	10 kV/µs	100 °C	-55 °C	Surface Mount
ON Semiconductor FOD4108SV	6-SMD	60 µs	1	800 V	2 mA	1.25 V	Triac	30 mA	CSA UL VDE	6-SMD Gull Wing			500 µA	10 kV/µs	100 °C	-55 °C	Surface Mount
ON Semiconductor FOD410SD	6-SMD	60 µs	1	600 V	2 mA	1.25 V	Triac	30 mA	CSA UL	6-SMD Gull Wing			500 µA	10 kV/µs	100 °C	-55 °C	Surface Mount
ON Semiconductor FOD410TV	6-DIP	60 µs	1	600 V	2 mA	1.25 V	Triac	30 mA	CSA UL VDE	6-DIP	10.16 mm	10.16 mm	500 µA	10 kV/µs	100 °C	-55 °C	Through Hole
ON Semiconductor FOD410SDV	6-SMD	60 µs	1	600 V	2 mA	1.25 V	Triac	30 mA	CSA UL VDE	6-SMD Gull Wing			500 µA	10 kV/µs	100 °C	-55 °C	Surface Mount
ON Semiconductor FOD410	6-DIP	60 µs	1	600 V	2 mA	1.25 V	Triac	30 mA	CSA UL	6-DIP	10.16 mm	10.16 mm	500 µA	10 kV/µs	100 °C	-55 °C	Through Hole
ON Semiconductor FOD410SV	6-SMD	60 µs	1	600 V	2 mA	1.25 V	Triac	30 mA	CSA UL VDE	6-SMD Gull Wing			500 µA	10 kV/µs	100 °C	-55 °C	Surface Mount
ON Semiconductor FOD4108V	6-DIP	60 µs	1	800 V	2 mA	1.25 V	Triac	30 mA	CSA UL VDE	6-DIP		7.62 mm	500 µA	10 kV/µs	100 °C	-55 °C	Through Hole	0.3 in

Catalog

Triac Driver Output Optocoupler, 6-Pin DIP 800V Zero Crossing

Key Features

• 300mA on-state current

• Zero-voltage crossing

• High blocking voltage

• 800V (FOD4108, FOD4118)

• 600V (FOD410, FOD4116)

• High trigger sensitivity

• 1.3mA (FOD4116, FOD4118)

• 2mA (FOD410, FOD4108)

• High static dv/dt (10,000V/µs)

• UL, VDE, CSA approved

• Lead free assembly

Description

The FOD410, FOD4108, FOD4116 and FOD4118 devices consist of an infrared emitting diode coupled to a hybrid triac formed with two inverse parallel SCRs which form the triac function capable of driving discrete triacs. The FOD4116 and FOD4118 utilize a high efficiency infrared emitting diode which offers an improved trigger sensitivity. These devices are housed in a standard 6-pin dual in-line (DIP) package.
