RS2BR Series

Manufacturer: Adam Tech

Catalog

CONN SOCKET STRIP RCP 20 POS 2.54MM SOLDER RA THRU-HOLE

Part	Contact Material	Insulation Material	Contact Finish Thickness - Post	Contact Shape	Contact Finish - Mating	Termination	Connector Type	Number of Positions	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Voltage Rating	Fastening Type	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Pitch - Mating	Pitch - Mating	Insulation Color	Material Flammability Rating	Number of Positions Loaded	Number of Rows [custom]	Contact Type	Current Rating (Amps)	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]

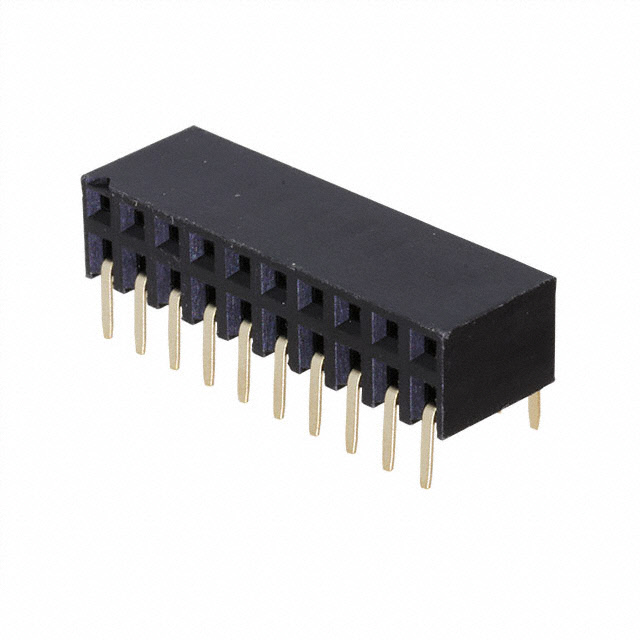

Adam Tech RS2BR-20-G	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	Flash	Square	Gold	Solder	Receptacle	20	Gold	0.118 in	3 mm	250 VAC	Push-Pull	Flash	0.1 in	2.54 mm	Right Angle Through Hole	0.1 "	2.54 mm	Black	UL94 V-0	All	2	Female Socket	3 A	0.23 "	5.85 mm	-40 C	105 ░C

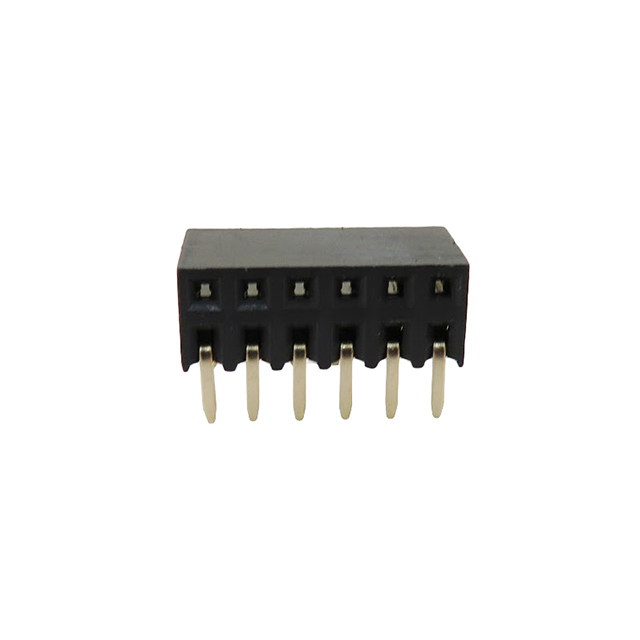

Adam Tech RS2BR-12-G	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	Flash	Square	Gold	Solder	Receptacle	12	Gold	0.118 in	3 mm	250 VAC	Push-Pull	Flash	0.1 in	2.54 mm	Right Angle Through Hole	0.1 "	2.54 mm	Black	UL94 V-0	All	2	Female Socket	3 A	0.23 "	5.85 mm	-40 C	105 ░C

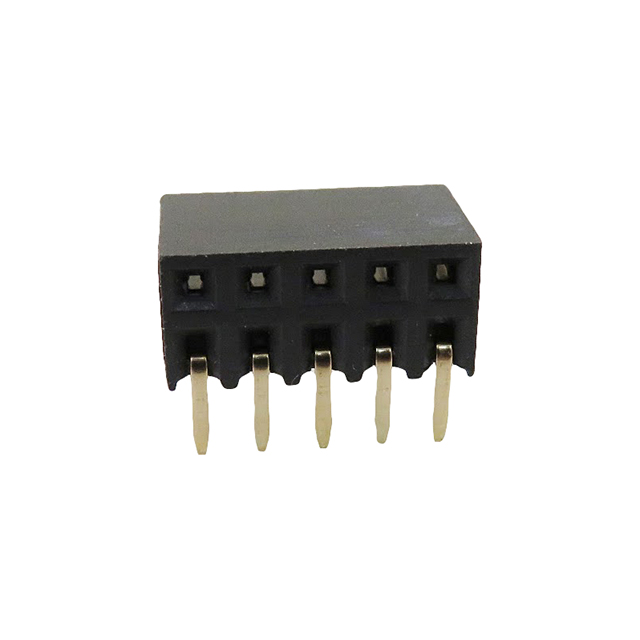

Adam Tech RS2BR-10-G	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	Flash	Square	Gold	Solder	Receptacle	10	Gold	0.118 in	3 mm	250 VAC	Push-Pull	Flash	0.1 in	2.54 mm	Right Angle Through Hole	0.1 "	2.54 mm	Black	UL94 V-0	All	2	Female Socket	3 A	0.23 "	5.85 mm	-40 C	105 ░C

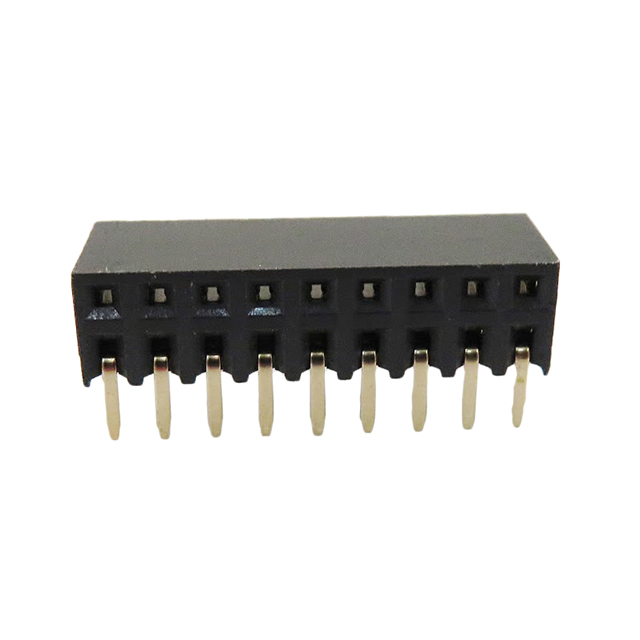

Adam Tech RS2BR-18-G	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	Flash	Square	Gold	Solder	Receptacle	18	Gold	0.118 in	3 mm	250 VAC	Push-Pull	Flash	0.1 in	2.54 mm	Right Angle Through Hole	0.1 "	2.54 mm	Black	UL94 V-0	All	2	Female Socket	3 A	0.23 "	5.85 mm	-40 C	105 ░C

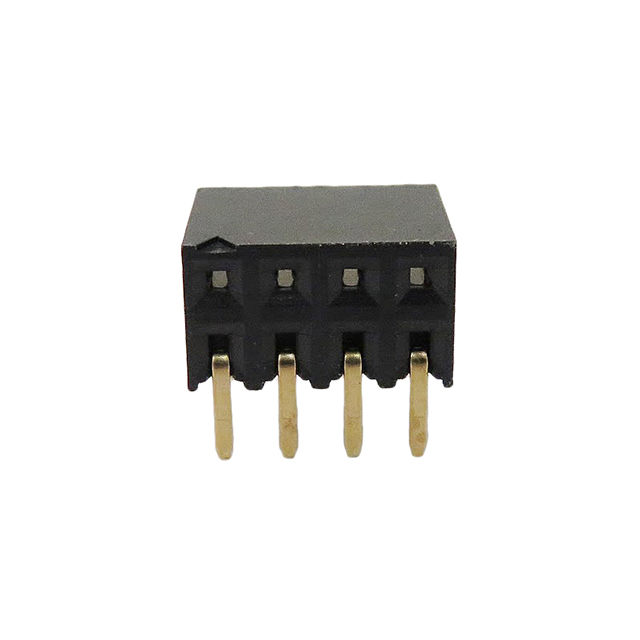

Adam Tech RS2BR-08-G	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	Flash	Square	Gold	Solder	Receptacle	8	Gold	0.118 in	3 mm	250 VAC	Push-Pull	Flash	0.1 in	2.54 mm	Right Angle Through Hole	0.1 "	2.54 mm	Black	UL94 V-0	All	2	Female Socket	3 A	0.23 "	5.85 mm	-40 C	105 ░C
Adam Tech RS2BR-06-G	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	Flash	Square	Gold	Solder	Receptacle	6	Gold	0.118 in	3 mm	250 VAC	Push-Pull	Flash	0.1 in	2.54 mm	Right Angle Through Hole	0.1 "	2.54 mm	Black	UL94 V-0	All	2	Female Socket	3 A	0.23 "	5.85 mm	-40 C	105 ░C
