ML62Q2534-NNNGD(Taping) Series

General-Purpose MCUs(16bit)

Catalog

General-Purpose MCUs(16bit)

Part	RAM Size	Package / Case	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	EEPROM Size	Connectivity	Program Memory Size	Core Processor	Speed	Core Size	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Program Memory Type	Mounting Type	Oscillator Type	Number of I/O	Peripherals	Data Converters

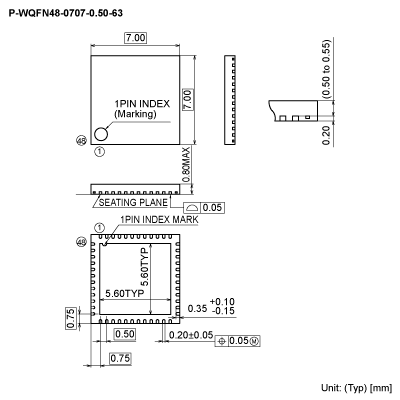

Rohm Semiconductor ML62Q2534-NNNGDZW5BX	8 K	48-WFQFN Exposed Pad	1.8 V	5.5 V	4K x 8	FIFO I2C SSIO UART/USART	128 KB	nX-U16/100	25 MHz	16-Bit	48-WQFN (7x7)	-40 °C	105 °C	FLASH	Surface Mount	External Internal	40	POR PWM Voltage Detect WDT	A/D 14x12b SAR

Catalog

General-Purpose MCUs(16bit)

Description

ML62Q2500 group is a high performance CMOS 16-bit MCU equipped with an 16-bit CPU nX-U16/100 and integrated with program memory(Flash memory), data memory(RAM), data Flash (Erase unit:128byte, Write unit:1byte) and rich peripheral functions such as the multiplier/divider, CRC generator, Clock generator, Timer, General Purpose Ports, UART, Synchronous serial port, I2C bus interface unit(Master, Slave), Voltage Level Supervisor(VLS), High-speed Successive approximation type 12bit A/D converter, Safety function (IEC60730/60335 Class B) and so on.The CPU nX-U16/100 is capable of efficient instruction execution in 1-instruction 1-clock mode by pipeline architecture parallel processing.The built-in on-chip debug function enables debugging and programming the software. Also, ISP (In-System Programming) function supports the Flash programming in production line.
