QBLP677 Series

Catalog

LED YELLOW CLEAR 4PLCC SMD

Part	Configuration	Package / Case	Height (Max) [z]	Viewing Angle	Voltage - Forward (Vf) (Typ)	Lens Style	Lens Color	Millicandela Rating	Lens Transparency	Current - Test	Color	Wavelength - Dominant	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Lens Size [diameter]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test	Wavelength - Dominant	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]

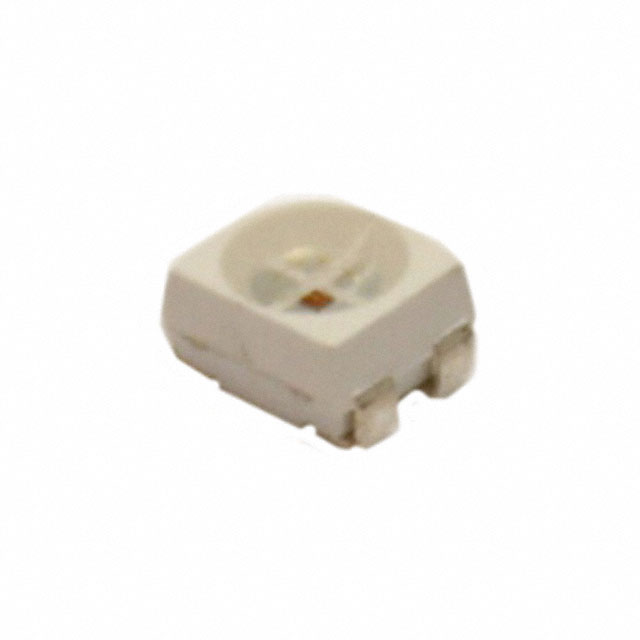

QT Brightek (QTB) QBLP677-Y	Common Anode Standard	4-PLCC 4-SMD J-Lead	1.9 mm	120 °	2 V	Round with Flat Top	Colorless	780 mcd	Clear	20 mA	Yellow	588 nm	4-PLCC	2.8 mm	3.2 mm	Surface Mount	2.4 mm Dia

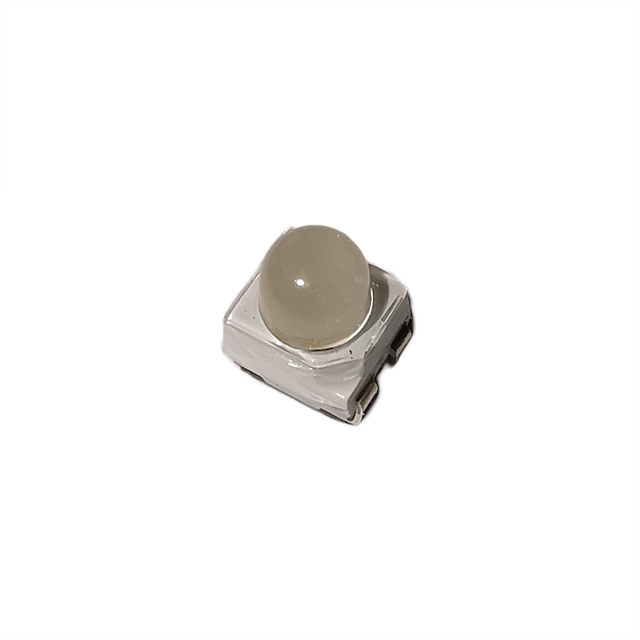

QT Brightek (QTB) QBLP677AD-RGB5	Common Anode	4-PLCC 4-SMD J-Lead	3.6 mm	30 °	2 V 2.8 V 3.1 V	Round with Domed Top	Colorless		Clear		Blue Green Red		4-PLCC	2.8 mm	3.2 mm	Surface Mount	2.4 mm Dia	500 mcd	4500 mcd	550 mcd	20mA Blue 20mA Green 20mA Red	465nm Blue 525nm Green 622nm Red
QT Brightek (QTB) QBLP677BD-RGB5	Common Cathode	4-PLCC 4-SMD J-Lead	3.6 mm	30 °	2 V 3.1 V 3.2 V	Round with Domed Top	Colorless		Clear		Blue Green Red		4-PLCC	2.8 mm	3.5 mm	Surface Mount	2.4 mm Dia	120 mcd	340 mcd	200 mcd	20mA Blue 20mA Green 20mA Red		525 nm	620 nm	465 nm

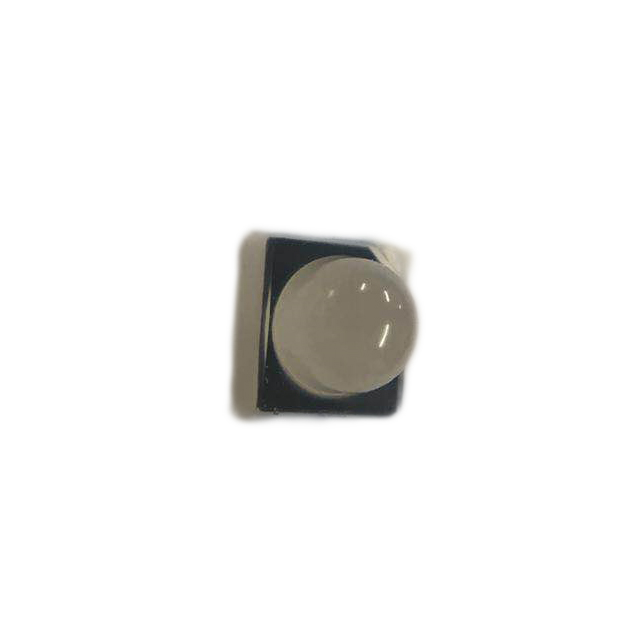

QT Brightek (QTB) QBLP677AD-RGB2	Common Anode	4-PLCC 4-SMD J-Lead	3.6 mm	30 °	2 V 2.8 V 3.1 V	Round with Domed Top	White		Diffused		Blue Green Red		4-PLCC			Surface Mount	2.4 mm Dia	300 mcd	2340 mcd	760 mcd	20mA Blue 20mA Green 20mA Red		525 nm	620 nm	465 nm
