ADS5295 Series

Catalog

OCTAL CHANNEL 12-BIT, 100MSPS HIGH-SNR AND LOW-POWER ADC

Part	Input Type	Mounting Type	Package / Case	Reference Type	Architecture	Number of A/D Converters	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Bits	Ratio - S/H:ADC	Number of Inputs	Data Interface	Sampling Rate (Per Second)	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Configuration	Supplier Device Package	Utilized IC / Part	Supplied Contents	Power (Typ) @ Conditions	Input Range
Texas Instruments ADS5295PFPR	Differential	Surface Mount	80-TQFP Exposed Pad	External Internal	Pipelined	8	85 °C	-40 °C	Simultaneous Sampling	12 bits	1:1	8	LVDS - Serial	100M	1.9 V	1.7 V	1.7 V	1.9 V	S/H-ADC	80-HTQFP (12x12)
Texas Instruments ADS5295PFP	Differential	Surface Mount	80-TQFP Exposed Pad	External Internal	Pipelined	8	85 °C	-40 °C	Simultaneous Sampling	12 bits	1:1	8	LVDS - Serial	100M	1.9 V	1.7 V	1.7 V	1.9 V	S/H-ADC	80-HTQFP (12x12)

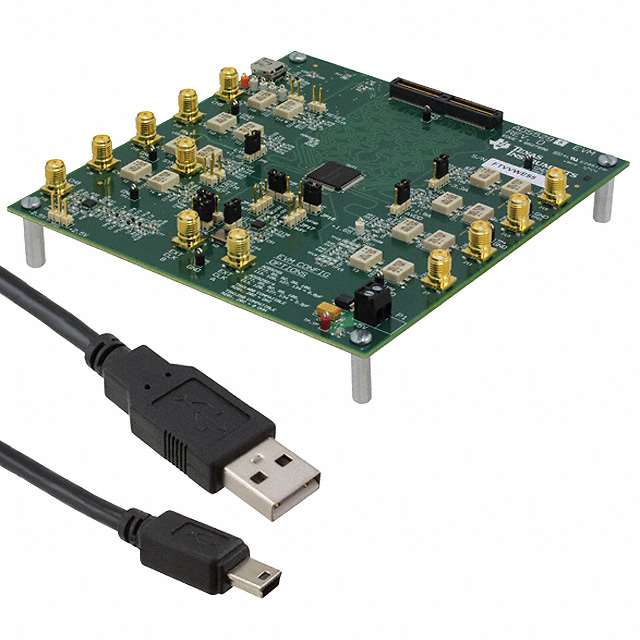

Texas Instruments ADS5295EVM						8				12 bits			LVDS - Serial	100M							ADS5295	Board(s)	640.8 mW	2 Vpp
Texas Instruments ADS5295PFPT	Differential	Surface Mount	80-TQFP Exposed Pad	External Internal	Pipelined	8	85 °C	-40 °C	Simultaneous Sampling	12 bits	1:1	8	LVDS - Serial	100M	1.9 V	1.7 V	1.7 V	1.9 V	S/H-ADC	80-HTQFP (12x12)
