153W Series

Manufacturer: Serpac

Catalog

ENCLOSURES, BOXES, & CASES 5.63 X 3.25 X 2.51 GRAY WALL MOUNT

Part	Weight	Weight	Design	Color	Material Flammability Rating	Container Type	Features	Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Thickness	Thickness	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Ratings

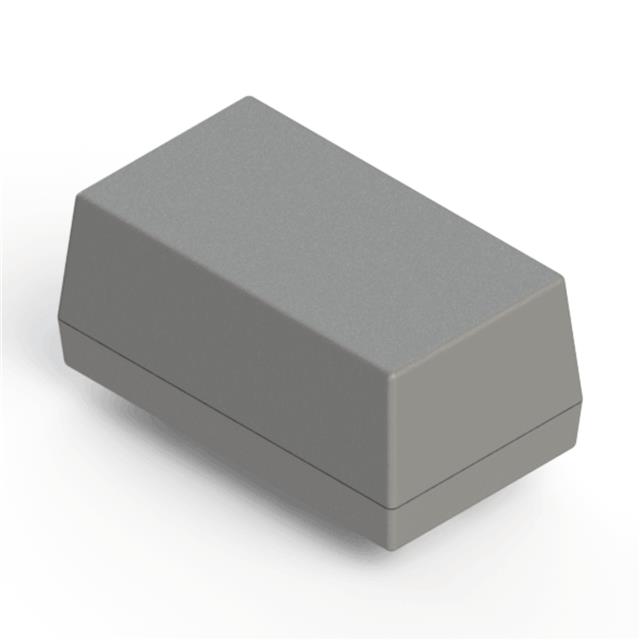

Serpac 153W,GY	0.291 lb	132 g	Hand Held Split Sides	Gray	UL94 HB	Box	PCB Supports Wall Mount	ABS Plastic	5.62 "	142.75 mm	82.55 mm	3.25 "	2.54 mm	0.1 in	18.3 in²	118 cm²	2.5 in	63.5 mm	IP40 NEMA 1
Serpac 153W,BK	0.291 lb	132 g	Hand Held Split Sides	Black	UL94 HB	Box	PCB Supports Wall Mount	ABS Plastic	5.62 "	142.75 mm	82.55 mm	3.25 "	2.54 mm	0.1 in	18.3 in²	118 cm²	2.5 in	63.5 mm	IP40 NEMA 1

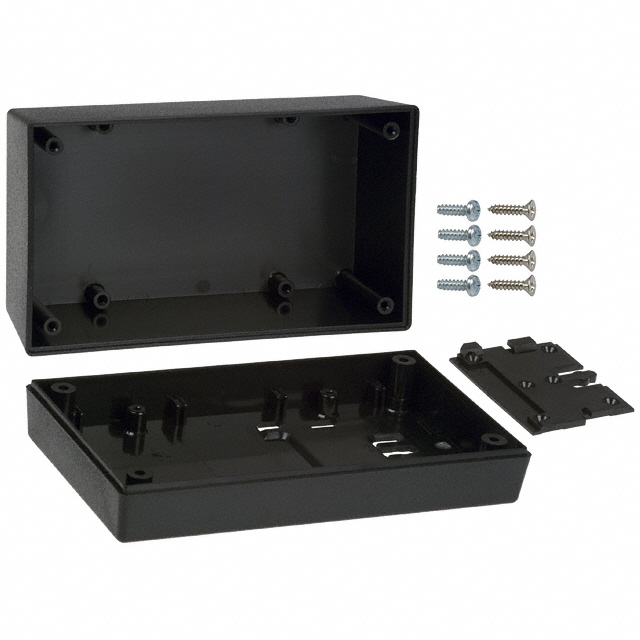

Serpac 153WI,BK	0.291 lb	132 g	Hand Held Split Sides	Black	UL94 HB	Box	PCB Supports Wall Mount	ABS Plastic	5.62 "	142.75 mm	82.55 mm	3.25 "	2.54 mm	0.1 in	18.3 in²	118 cm²	2.5 in	63.5 mm	IP40 NEMA 1
Serpac 153WI,GY	0.291 lb	132 g	Hand Held Split Sides	Gray	UL94 HB	Box	PCB Supports Wall Mount	ABS Plastic	5.62 "	142.75 mm	82.55 mm	3.25 "	2.54 mm	0.1 in	18.3 in²	118 cm²	2.5 in	63.5 mm	IP40 NEMA 1

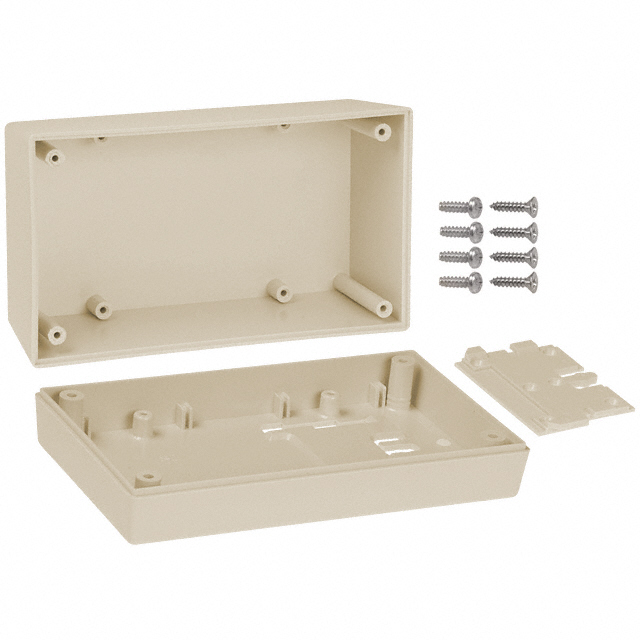

Serpac 153WI,AL	0.291 lb	132 g	Hand Held Split Sides	Almond	UL94 HB	Box	PCB Supports Wall Mount	ABS Plastic	5.62 "	142.75 mm	82.55 mm	3.25 "	2.54 mm	0.1 in	18.3 in²	118 cm²	2.5 in	63.5 mm	IP40 NEMA 1

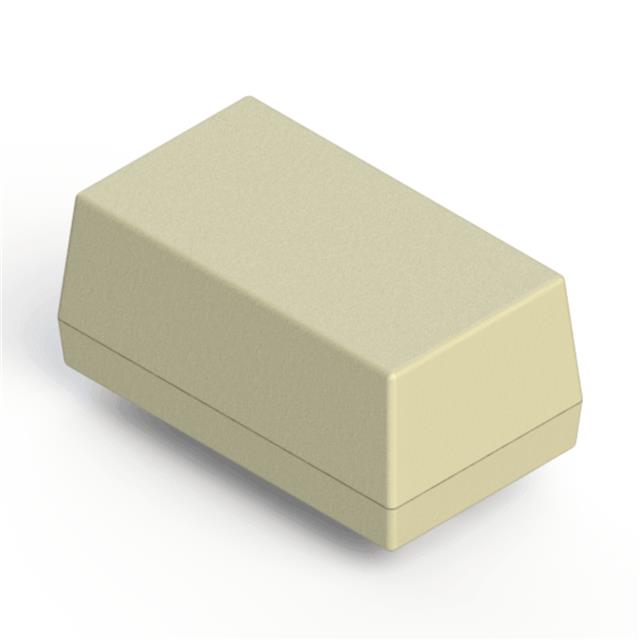

Serpac 153W,AL	0.291 lb	132 g	Hand Held Split Sides	Almond	UL94 HB	Box	PCB Supports Wall Mount	ABS Plastic	5.62 "	142.75 mm	82.55 mm	3.25 "	2.54 mm	0.1 in	18.3 in²	118 cm²	2.5 in	63.5 mm	IP40 NEMA 1
