eg Series

Manufacturer: E-Switch

Catalog

SWITCH: SLIDE; POS: 2; DPDT; 0.2A/30VDC; BBM (NON-SHORTING),ON-ON

Part	Current Rating (Amps)	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Timing	Switch Function	Actuator Length [x]	Actuator Type	Circuit	Mounting Type	Contact Material	Voltage Rating - DC	Operating Force	Switch Travel	Operating Force [Max]	Operating Force [Min]
E-Switch EG2201D	200 mA	PC Pin	-20 ░C	70 °C	Silver	Non-Shorting (BBM)	On-On	4.5 mm	Standard	DPDT	Through Hole	Copper Alloy	30 V

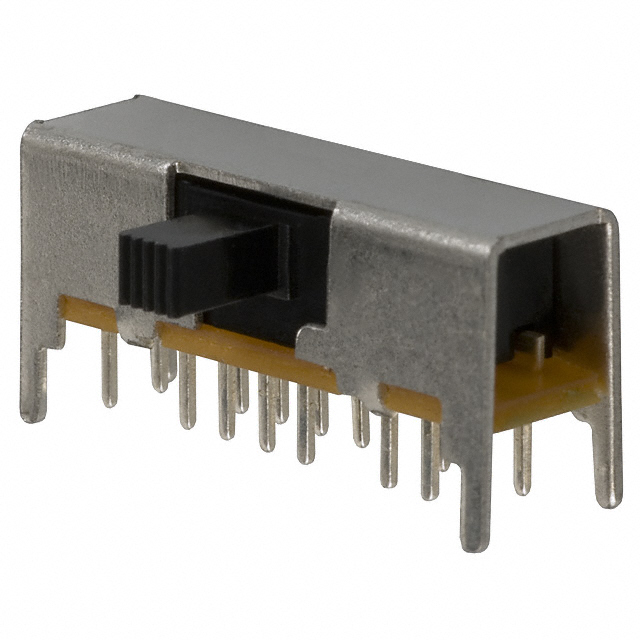

E-Switch EG4319	200 mA	PC Pin	-20 ░C	70 °C	Silver	Not Specified	On-On-On	5 mm	Standard	4P3T	Right Angle Through Hole	Copper Alloy	30 V	0.25 kgf 400 gf 600 gf	2 mm
E-Switch EG2209	100 mA	PC Pin	-20 ░C	70 °C	Silver		On-On	2 mm	Standard	DPDT	Through Hole	Copper Alloy	12 V

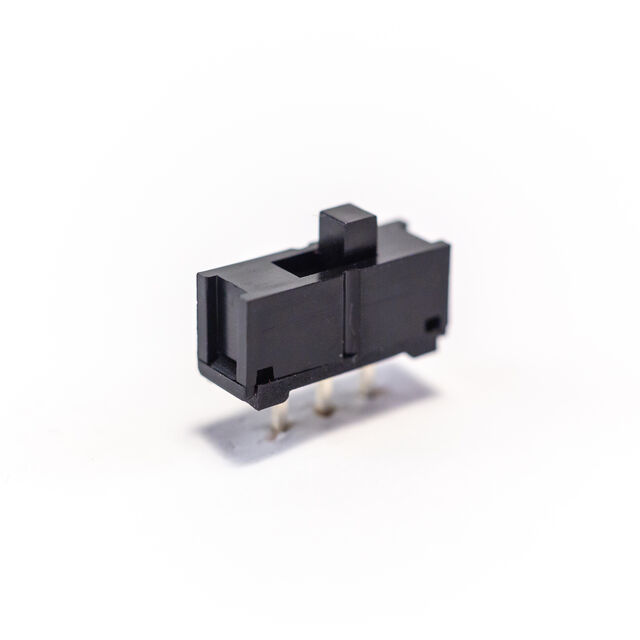

E-Switch EG1218A	200 mA	PC Pin	-20 ░C	70 °C	Silver	Non-Shorting (BBM)	On-On	2 mm	Standard	SPDT	Through Hole	Copper Alloy	30 V	0.25 kgf	2.5 mm

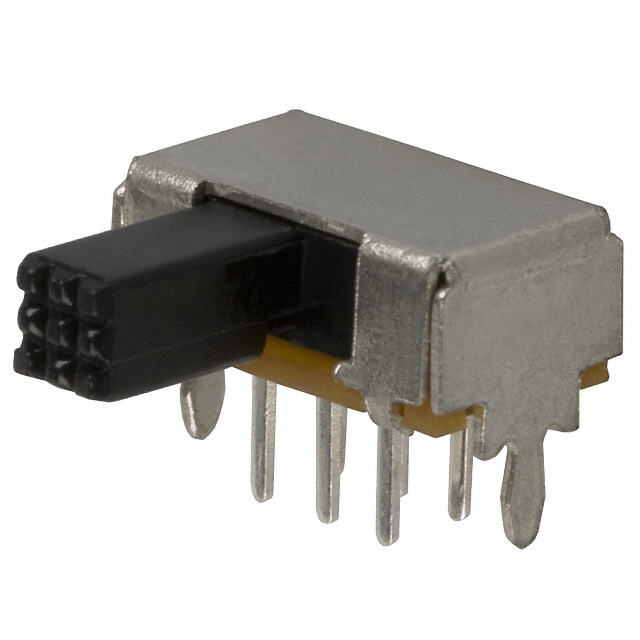

E-Switch EG2211A	200 mA	PC Pin	-20 ░C	70 °C	Silver	Not Specified	On-On	2 mm	Standard	DPDT	Right Angle Through Hole	Copper Alloy	30 V	0.25 kgf	2 mm
E-Switch EG2201B	200 mA	PC Pin	-20 ░C	70 °C	Silver	Non-Shorting (BBM)	On-On	9 mm	Standard	DPDT	Through Hole	Copper Alloy	30 V

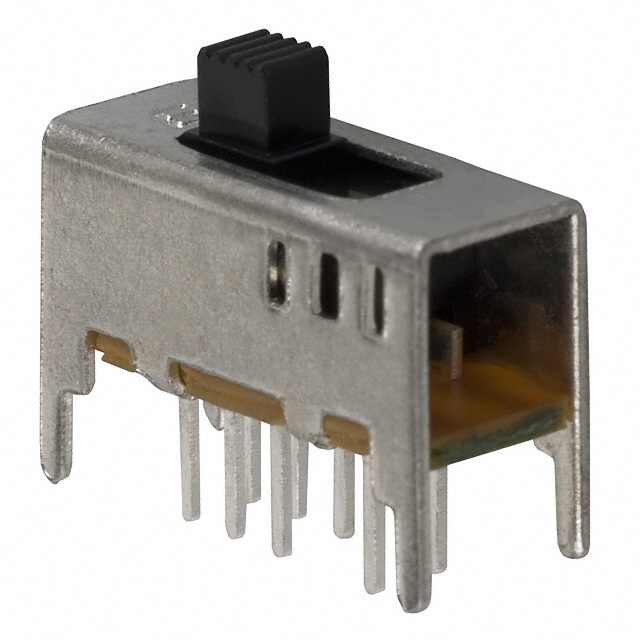

E-Switch EG2301	200 mA	PC Pin	-20 ░C	70 °C	Silver	Not Specified	On-On-On	3 mm	Standard	DP3T	Through Hole	Copper Alloy	30 V		2 mm	300 gf	200 gf

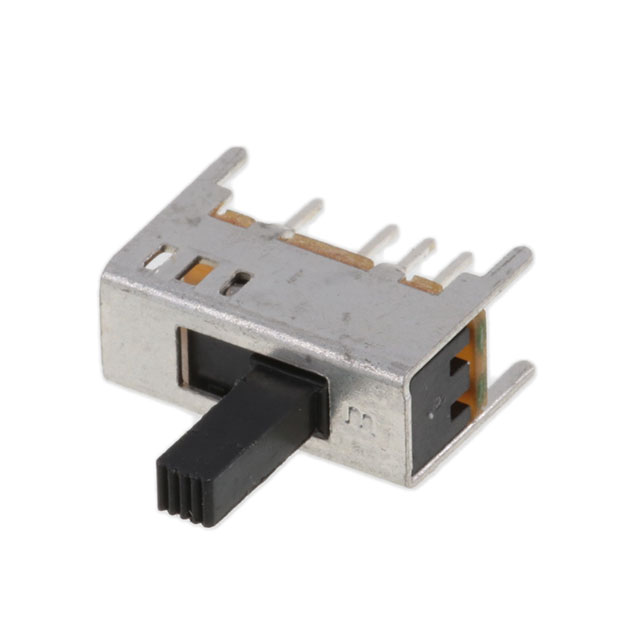

E-Switch EG2301B	200 mA	PC Pin	-20 ░C	70 °C	Silver	Not Specified	On-On-On	9 mm	Standard	DP3T	Through Hole	Copper Alloy	30 V		2 mm	300 gf	200 gf
