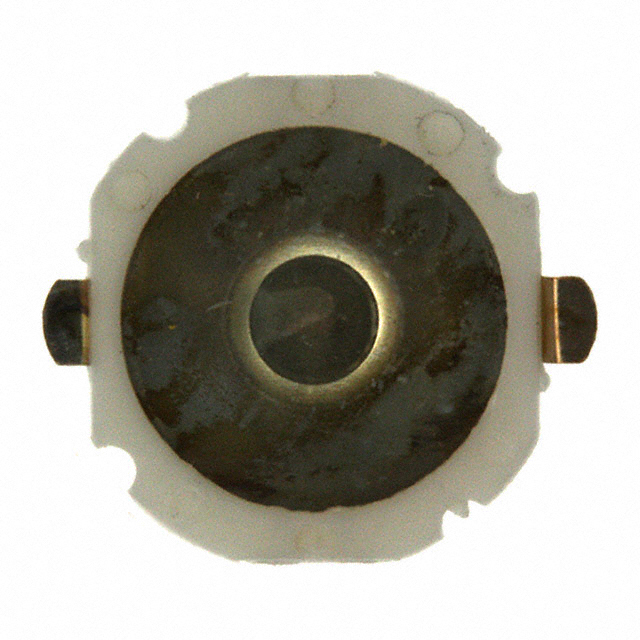

EDM650 Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K
SWITCH TACT SPST-NO 0.05A 100V
| Part | Mechanical Life | Termination Style | Mounting Type | Switch Function | Features | Circuit | Switch Travel | Contact Rating @ Voltage | Actuator Type | Actuator Orientation | Illumination | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Height off PCB, Vertical [z] | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 1000000 Cycles | SMD (SMT) Tab | Surface Mount | Off-Mom | Tactile Feedback | SPST-NO | 0.4 mm | 0.05 A 100 VAC/DC | Snap Dome | Top Actuated | Non-Illuminated | 70 °C | -25 °C | 1.2 mm | 650 gf |
 Littelfuse/Commercial Vehicle Products | 1000000 Cycles | PC Pin | Through Hole | Off-Mom | Tactile Feedback | SPST-NO | 0.4 mm | 0.05 A 100 VAC/DC | Snap Dome | Top Actuated | Non-Illuminated | 70 °C | -25 °C | 1.2 mm | 650 gf |
 Littelfuse/Commercial Vehicle Products | 1000000 Cycles | PC Pin | Through Hole | Off-Mom | Tactile Feedback | SPST-NO | 0.4 mm | 0.05 A 100 VAC/DC | Snap Dome | Top Actuated | Non-Illuminated | 85 °C | -55 °C | 1.2 mm | 650 gf |
