R19170 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
N FEMALE - C MALE STRAIGHT ADAPT
| Part | Body Finish | Center Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Dielectric Material | Frequency - Max [Max] | Adapter Series | Convert From (Adapter End) | Center Contact Plating | Impedance | Style | Adapter Type | Conversion Type | Mounting Type | Convert To (Adapter End) | Fastening Type | Fastening Type | Center Gender | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

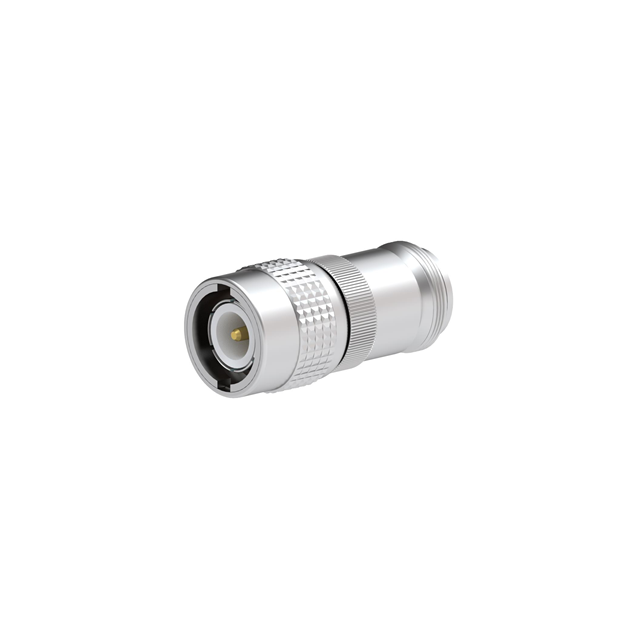

 Radiall USA, Inc. | Nickel | Beryllium Copper | 155 C | -55 C | Brass | Polytetrafluoroethylene (PTFE) | 11 GHz | N to C | Female Socket N Jack | Gold | 50 Ohms | Straight | Jack to Jack | Between Series | Free Hanging (In-Line) | C Jack Male Pin | Threaded | Bayonet Lock | ||
 Radiall USA, Inc. | Nickel | Beryllium Copper | 155 C | -55 C | Brass | Polytetrafluoroethylene (PTFE) | 11 GHz | N to C | N Plug Male Pin | Gold | 50 Ohms | Straight | Plug to Jack | Between Series | Free Hanging (In-Line) | C Jack Female Socket | Threaded | Bayonet Lock | ||

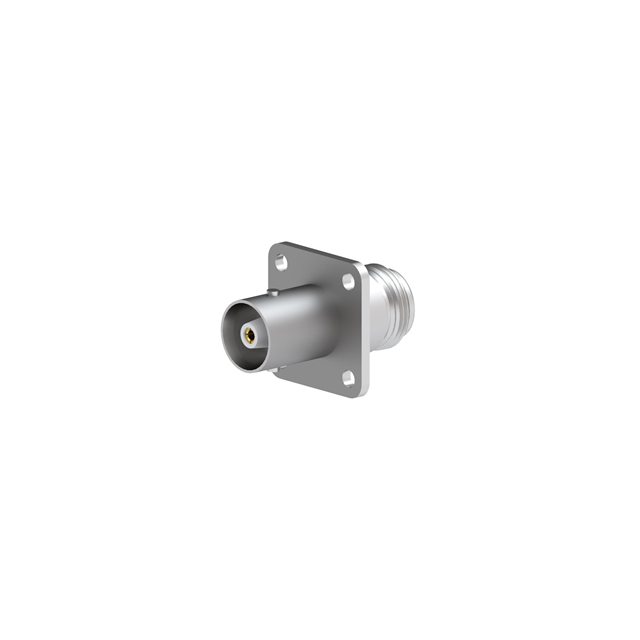

 Radiall USA, Inc. | Nickel | 11 GHz | N to C | Female Socket N Jack | Gold | 50 Ohms | Straight | Jack to Jack | Between Series | Panel Mount | C Jack Female Socket | Threaded | Bayonet Lock | Female to Female | Flange |
