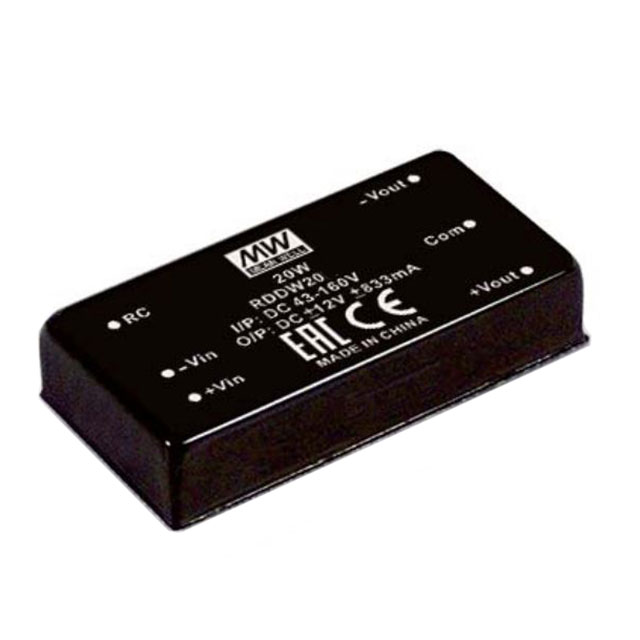

RDDW20H Series

Catalog

DC/DC CONVERTER

Part	Voltage - Output 1	Voltage - Isolation	Voltage - Output 2	Number of Outputs	Type	Size / Dimension	Voltage - Input (Min) [Min]	Package / Case	Efficiency	Features	Current - Output (Max)	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Mounting Type	Approval Agency	Current - Output (Max)
MEAN WELL USA Inc. RDDW20H-12	12 V	3000 V	-12 V	2	Isolated Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	43 V	6-DIP Module	89 %	Adjustable Output Remote On/Off	1.833 A	44 W	-40 °C	85 °C	160 V	Through Hole	CE EAC UKCA
MEAN WELL USA Inc. RDDW20H-15	15 V	3000 V	-15 V	2	Isolated Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	43 V	6-DIP Module	88.5 %	Adjustable Output Remote On/Off	667 mA	20 W	-40 °C	85 °C	160 V	Through Hole	CE EAC UKCA	667 mA
