M2013SD Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SPDT 6A 125V
| Part | Electrical Life | Actuator Material | Bushing Thread | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Length [x] | Panel Cutout Dimensions [diameter] | Features | Illumination | Ingress Protection | Actuator Type | Termination Style | Switch Function | Voltage Rating - AC | Current Rating (Amps) | Mounting Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

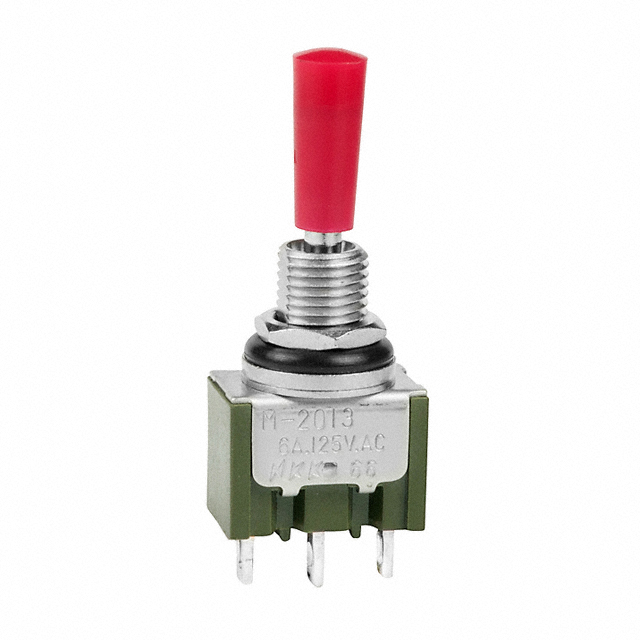

 NKK Switches | 25000 Steps | Brass Chrome Plated | 1/4-40 | 30 V | 85 °C | -30 ░C | 13.1 mm | 6.5 mm | Red Cap | Non-Illuminated | IP67 - Dust Tight Waterproof | Standard Round with Cap | Solder Lug | On-Off-On | 125 V | 3 A 6 A | Panel Mount | SPDT |
 NKK Switches | 50000 Cycles | Brass Chrome Plated | 1/4-40 | 28 V | 85 °C | -30 ░C | 6.5 mm | Epoxy Sealed Terminals | Non-Illuminated | IP67 - Dust Tight Waterproof | Standard Round | Solder Lug | On-Off-On | 28 V | 0.4 VA | Panel Mount | SPDT | |
 NKK Switches | 25000 Steps | Brass Chrome Plated | 1/4-40 | 30 V | 85 °C | -30 ░C | 6.5 mm | Epoxy Sealed Terminals | Non-Illuminated | IP67 - Dust Tight Waterproof | Standard Round | Solder Lug | On-Off-On | 125 V | 3 A 6 A | Panel Mount | SPDT |
