AMPMODU PC/104 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

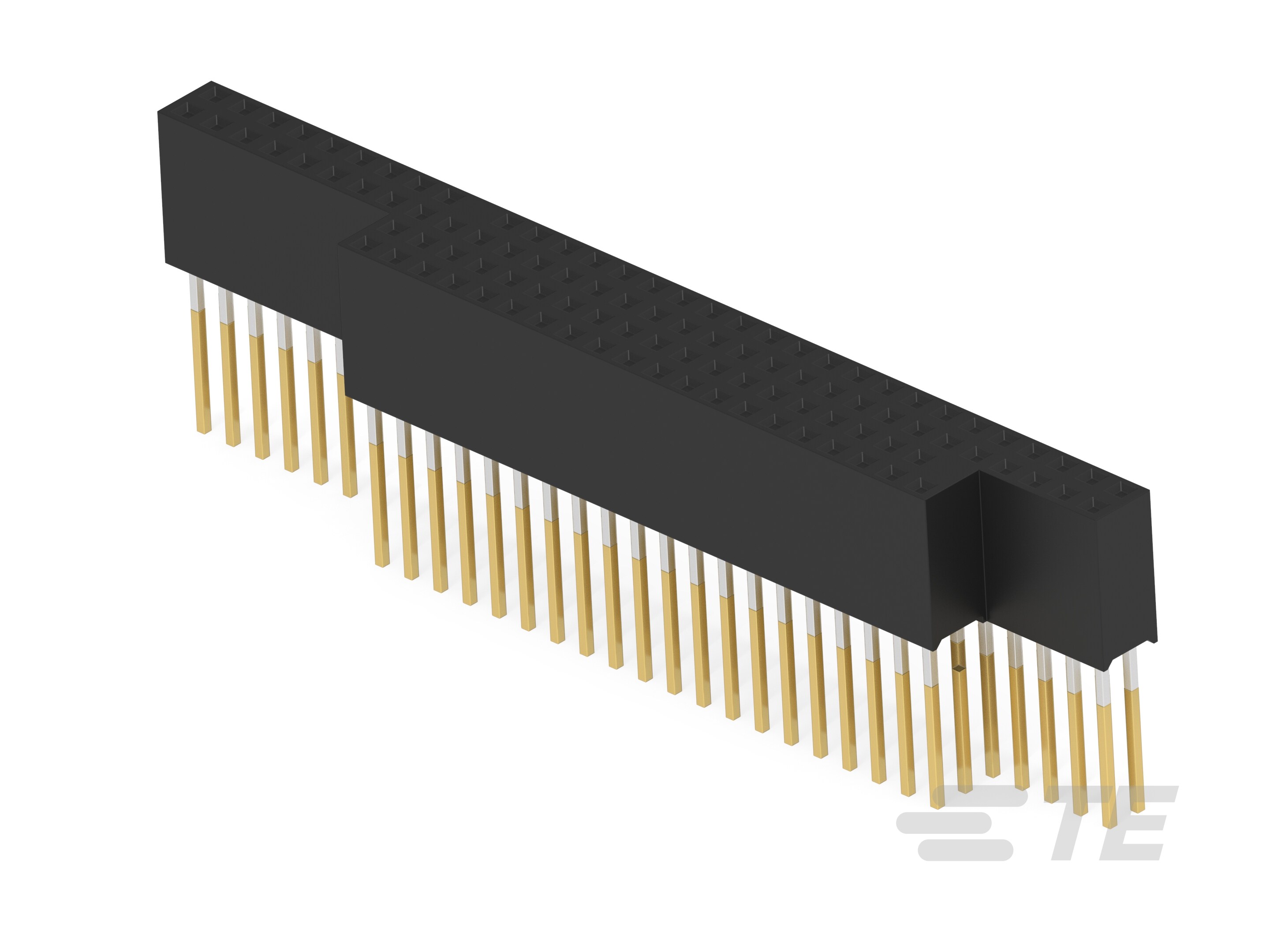

CONNECTOR, 119 CONTACTS, 2 MM, RECEPTACLE, PRESS FIT, 4 ROWS
| Part | Connector Type | Color | Mounting Type | Number of Positions | Connector Style | Contact Finish | Number of Positions Loaded | Contact Finish Thickness | Contact Finish Thickness | Termination | Pitch [x] | Pitch [x] | Number of Positions Loaded | Features | Pitch | Pitch | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Stackthrough Keyed (PC/104) | Black | Through Hole | 120 | PC/104 Plus | Gold | 119 | 0.38 µm | 15 µin | Press-Fit Long Post | 0.079 in | 2 mm | |||||||
 TE Connectivity AMP Connectors | Non-Stackthrough Unkeyed (PC/104) | Black | Through Hole | 120 | PC/104 Plus | Gold | 0.38 µm | 15 µin | Press-Fit | 0.079 in | 2 mm | All | Screwlocks (2) | ||||||
 TE Connectivity AMP Connectors | Non-Stackthrough Keyed (PC/104) | Black | Through Hole | 104 | PC/104 | Gold | 102 | 0.38 µm | 15 µin | Press-Fit | 0.1 " | 2.54 mm | |||||||
 TE Connectivity AMP Connectors | Non-Stackthrough Unkeyed (PC/104) | Black | Through Hole | 120 | PC/104 Plus | Gold | 0.38 µm | 15 µin | Press-Fit | 0.079 in | 2 mm | All | |||||||
 TE Connectivity AMP Connectors | Non-Stackthrough Keyed (PC/104) | Black | Through Hole | 104 | PC/104 | Gold | 102 | 0.38 µm | 15 µin | Press-Fit | 0.1 " | 2.54 mm | UL94 V-0 | -55 C | 105 ░C | ||||
TE Connectivity AMP Connectors | Stackthrough Keyed (PC/104) | Black | Through Hole | 120 | PC/104 Plus | Gold | 119 | 0.38 µm | 15 µin | Press-Fit Long Post | 0.079 in | 2 mm | UL94 V-0 | -55 C | 105 ░C | ||||
 TE Connectivity AMP Connectors | Non-Stackthrough Keyed (PC/104) | Black | Through Hole | 120 | PC/104 Plus | Gold | 119 | 0.38 µm | 15 µin | Press-Fit | 0.079 in | 2 mm | UL94 V-0 | -55 C | 105 ░C | ||||
TE Connectivity AMP Connectors | Non-Stackthrough Keyed (PC/104) | Black | Through Hole | 120 | PC/104 Plus | Gold | 119 | 0.38 µm | 15 µin | Press-Fit | 0.079 in | 2 mm | Screwlocks (2) | ||||||
 TE Connectivity AMP Connectors | Stackthrough Keyed (PC/104) | Black | Through Hole | 104 | PC/104 | Gold | 102 | 0.38 µm | 15 µin | Press-Fit Long Post | 0.1 " | 2.54 mm | UL94 V-0 | -55 C | 105 ░C | ||||
TE Connectivity AMP Connectors | Non-Stackthrough Unkeyed (PC/104) | Black | Through Hole | 120 | PC/104 Plus | Gold | 0.38 µm | 15 µin | Press-Fit | 0.079 in | 2 mm | All | Screwlocks (2) | UL94 V-0 | -55 C | 105 ░C |
