FAA.0S Series

Manufacturer: LEMO

Catalog

CONN TRIAX PLUG STR 50OHM SOLDER

Part	Mating Cycles	Body Finish	Center Contact Plating	Dielectric Material	Includes	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Cable Group	Mounting Type	Housing Color	Ingress Protection	Contact Termination	Number of Ports	Connector Style	Shield Termination	Impedance	Connector Type	Fastening Type	Center Contact Material	Insert Material	Shell Material	Orientation	Shielding	Material Flammability Rating	Color	Primary Material	Current Rating (Amps)	Contact Finish - Mating	Shell Size - Insert	Shell Finish	Contact Material	Number of Positions
LEMO FAA.0S.650.CTAY	1000	Chrome	Gold	Polytetrafluoroethylene (PTFE)	1 Connector 1 Nut	Brass	-55 C	250 °C	Bulkhead - Rear Side Nut	RG-174 RG-178	Panel Mount	Silver	IP50 - Dust Protected	Solder Cup	1	Triaxial	Solder	50 Ohms	Plug Male Pin	Push-Pull	Brass
LEMO FAA.0S.650.CTL	1000	Chrome	Gold	Polytetrafluoroethylene (PTFE)	1 Connector 1 Nut	Brass	-55 C	250 °C	Bulkhead - Rear Side Nut	RG-174 RG-178	Panel Mount	Silver	IP50 - Dust Protected	Solder Cup	1	Triaxial	Solder	50 Ohms	Female Socket Plug	Push-Pull	Beryllium Copper
LEMO FAA.0S.303.CLA							-55 C	250 °C	Bulkhead - Rear Side Nut		Panel Mount		IP50 - Dust Protected						Plug Female Sockets and Male Pins	Push-Pull		Polyetheretherketone (PEEK)	Brass	Keyed	Shielded	UL94 V-0	Silver	Metal	7 A	Gold	303	Chrome	Brass Bronze

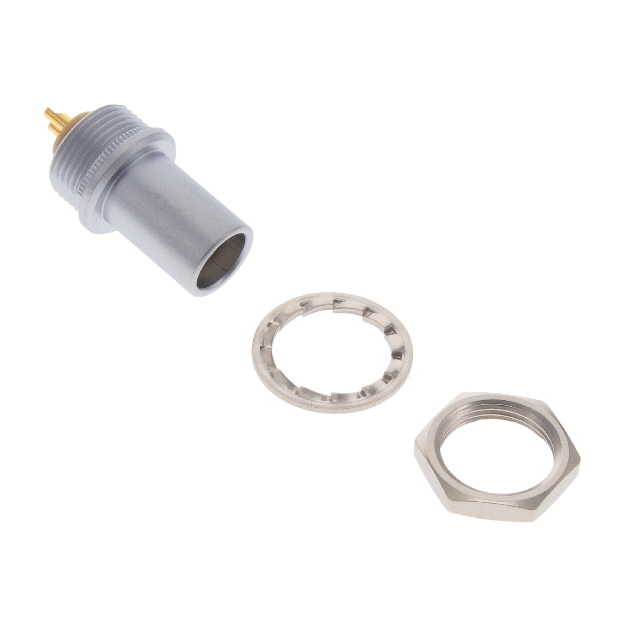

LEMO FAA.0S.302.CLA							-55 C	250 °C	Bulkhead - Rear Side Nut		Panel Mount		IP50 - Dust Protected						Plug Female Sockets and Male Pins	Push-Pull		Polyetheretherketone (PEEK)	Brass	Keyed	Shielded	UL94 V-0	Silver	Metal	10 A	Gold	302	Chrome	Brass Bronze	2
LEMO FAA.0S.304.CLA							-55 C	250 °C	Bulkhead - Rear Side Nut		Panel Mount		IP50 - Dust Protected						Plug Female Sockets and Male Pins	Push-Pull		Polyetheretherketone (PEEK)	Brass	Keyed	Shielded	UL94 V-0	Silver	Metal	7 A	Gold	304	Chrome	Brass Bronze	4
