77148 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

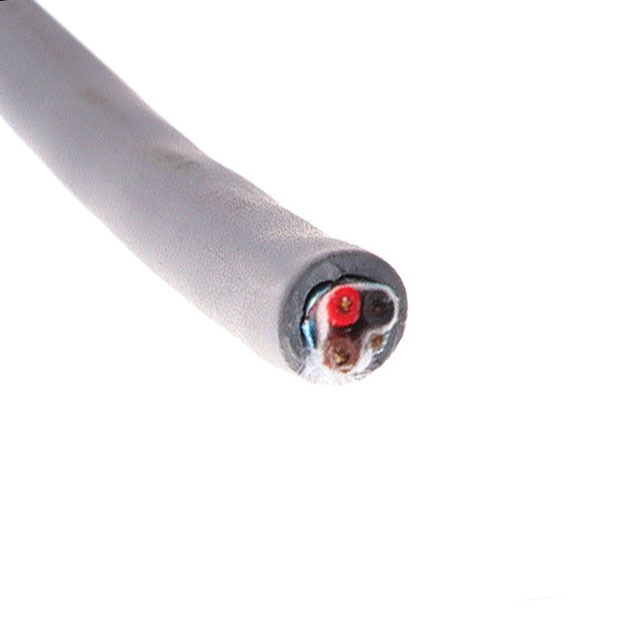

CABLE 3CON 26AWG SLATE SHLD 100'
| Part | Shield Coverage | Shield Material | Wire Gauge | Number of Conductors | Conductor Strand [x] | Conductor Strand [x] | Length [x] | Length [x] | Cable Type | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Shield Type | Jacket (Insulation) Material | Features | Conductor Material | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Jacket Color | Ratings | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 26 AWG | 3 | 34 AWG | 7 | 100 ft | 30.5 m | Multi-Conductor | 600 V | -50 °C | 105 ░C | 0.813 mm | 0.032 in | Polyphenylene Ether Modified (mPPE) | Foil | Polyphenylene Ether Modified (mPPE) | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 0.156 in | 3.96 mm | Slate | ISO 10993 UL Style 21915 | ||
 ALPHA WIRE | 100 % | Aluminum | 26 AWG | 3 | 34 AWG | 7 | Multi-Conductor | 600 V | -50 °C | 105 ░C | 0.813 mm | 0.032 in | Polyphenylene Ether Modified (mPPE) | Foil | Polyphenylene Ether Modified (mPPE) | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 0.156 in | 3.96 mm | Slate | ISO 10993 UL Style 21915 | ||||
ALPHA WIRE | 100 % | Aluminum | 26 AWG | 3 | 34 AWG | 7 | Multi-Conductor | 600 V | -50 °C | 105 ░C | 0.813 mm | 0.032 in | Polyphenylene Ether Modified (mPPE) | Foil | Polyphenylene Ether Modified (mPPE) | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 0.156 in | 3.96 mm | Slate | ISO 10993 UL Style 21915 | 304.8 m | 1000 ft |
