TLR2B Series
Manufacturer: KOA Speer Electronics, Inc.
Beta
⌘K

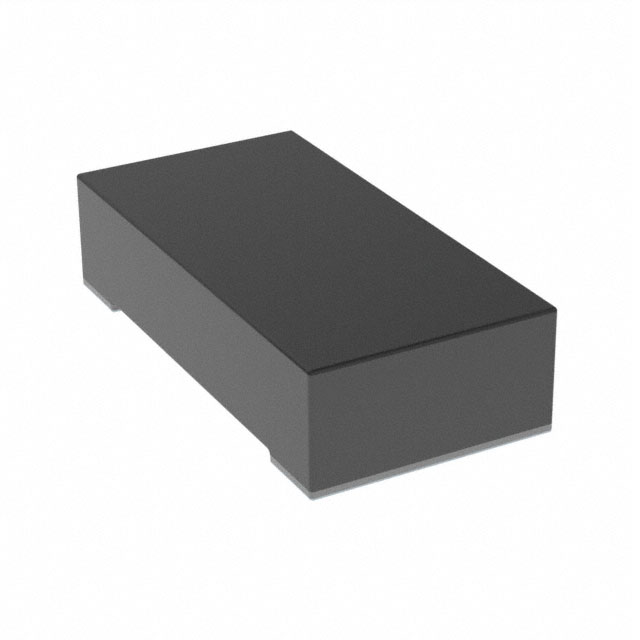

RES 16M OHM 1% 1W 1206
| Part | Package / Case | Composition | Temperature Coefficient | Supplier Device Package | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Resistance | Power (Watts) | Features | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Number of Terminations [custom] | Ratings | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KOA Speer Electronics, Inc. | 1206 (3216 Metric) | Metal Element | 50 ppm/░C | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 16 mOhms | 1 W | Automotive AEC-Q200 Current Sense | 1 % | -65 ░C | 170 °C | 2 | AEC-Q200 | 0.8 mm | 0.032 " | |
KOA Speer Electronics, Inc. | 1206 (3216 Metric) | Metal Element | 75 ppm/°C | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 15 mOhms | 0.5 W | Automotive AEC-Q200 Current Sense | 1 % | -65 ░C | 170 °C | 2 | AEC-Q200 | 0.8 mm | 0.032 " | 0.5 W |
KOA Speer Electronics, Inc. | 1206 (3216 Metric) | Metal Element | 75 ppm/°C | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 15 mOhms | 1 W | Automotive AEC-Q200 Current Sense | 1 % | -65 ░C | 170 °C | 2 | AEC-Q200 | 0.8 mm | 0.032 " | |
KOA Speer Electronics, Inc. | 1206 (3216 Metric) | Metal Element | 75 ppm/°C | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 3 mOhms | 1 W | Automotive AEC-Q200 Current Sense | 1 % | -65 ░C | 170 °C | 2 | AEC-Q200 | 0.8 mm | 0.032 " | |
KOA Speer Electronics, Inc. | 1206 (3216 Metric) | Metal Element | 50 ppm/░C | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 4 mOhms | 1.5 W | Automotive AEC-Q200 Current Sense | 1 % | -65 ░C | 170 °C | 2 | AEC-Q200 | 0.8 mm | 0.032 " | |
KOA Speer Electronics, Inc. | 1206 (3216 Metric) | Metal Element | 75 ppm/°C | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 4 mOhms | 1.5 W 3 W | Automotive AEC-Q200 Current Sense | 1 % | -65 ░C | 170 °C | 2 | AEC-Q200 | 0.8 mm | 0.032 " | |
KOA Speer Electronics, Inc. | 1206 (3216 Metric) | Metal Element | 75 ppm/°C | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 16 mOhms | 0.5 W | Automotive AEC-Q200 Current Sense | 1 % | -65 ░C | 170 °C | 2 | AEC-Q200 | 0.8 mm | 0.032 " | 0.5 W |
KOA Speer Electronics, Inc. | 1206 (3216 Metric) | Metal Element | 50 ppm/░C | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 18 mOhms | 1.5 W | Automotive AEC-Q200 Current Sense | 1 % | -65 ░C | 170 °C | 2 | AEC-Q200 | 0.8 mm | 0.032 " | |
KOA Speer Electronics, Inc. | 1206 (3216 Metric) | Metal Element | 75 ppm/°C | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 12 mOhms | 1 W | Automotive AEC-Q200 Current Sense | 1 % | -65 ░C | 170 °C | 2 | AEC-Q200 | 0.8 mm | 0.032 " | |
KOA Speer Electronics, Inc. | 1206 (3216 Metric) | Metal Element | 75 ppm/°C | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 13 mOhms | 0.5 W | Automotive AEC-Q200 Current Sense | 1 % | -65 ░C | 170 °C | 2 | AEC-Q200 | 0.8 mm | 0.032 " | 0.5 W |
