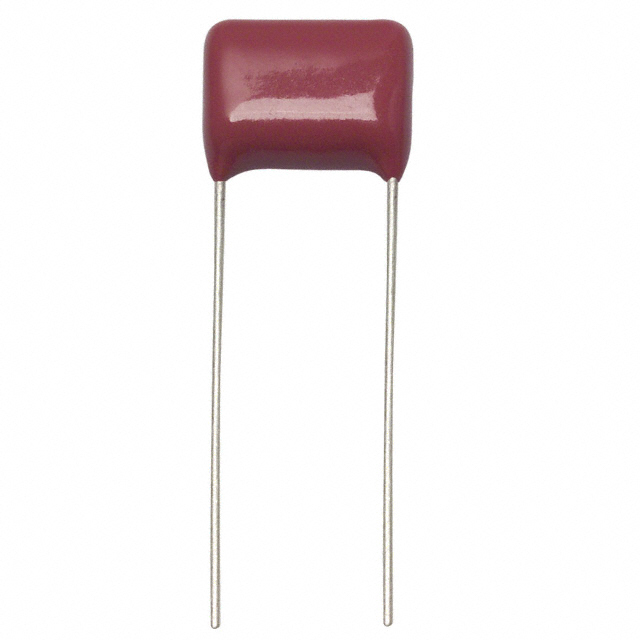

ECH-S1 Series
Manufacturer: Panasonic Industrial Automation Sales
Catalog
CAP FILM 3900PF 5% 50VDC RADIAL
| Part | Mounting Type | Capacitance | Voltage Rating - DC | Termination | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance | Lead Spacing | Lead Spacing | Dielectric Material | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Through Hole | 3900 pF | 50 VDC | PC Pins | 8.8 mm | 0.346 in | Radial | 125 °C | -40 °C | 5 % | 5 mm | 0.197 in | Polyphenylene Sulfide (PPS) | High Frequency Switching | 4 mm | 8.5 mm | 0.335 " | 0.157 in | ||
 Panasonic Industrial Automation Sales | Through Hole | 0.068 µF | 50 VDC | PC Pins | 12.2 mm | 0.48 " | Radial | 125 °C | -40 °C | 5 % | 10 mm | 0.394 in | Polyphenylene Sulfide (PPS) | High Frequency Switching | 5 mm | 14.5 mm | 0.571 in | 0.197 " | ||
 Panasonic Industrial Automation Sales | Through Hole | 0.027 µF | 50 VDC | PC Pins | Radial | 125 °C | -40 °C | 5 % | 7.5 mm | 0.295 in | Polyphenylene Sulfide (PPS) | High Frequency Switching | 4.5 mm | 12 mm | 0.472 in | 0.177 " | 11.4 mm | 0.449 in | ||
 Panasonic Industrial Automation Sales | Through Hole | 0.47 µF | 50 VDC | PC Pins | Radial | 125 °C | -40 °C | 2 % | 12.5 mm | 0.492 in | Polyphenylene Sulfide (PPS) | High Frequency Switching | 10 mm | 17 mm | 0.669 " | 0.394 in | 18.2 mm | 0.717 in | ||
Panasonic Industrial Automation Sales | Through Hole | 10000 pF | 50 VDC | PC Pins | 8.8 mm | 0.346 in | Radial | 125 °C | -40 °C | 5 % | 5 mm | 0.197 in | Polyphenylene Sulfide (PPS) | High Frequency Switching | 4 mm | 8.5 mm | 0.335 " | 0.157 in | ||
Panasonic Industrial Automation Sales | Through Hole | 0.001 µF | 50 VDC | PC Pins | 8.6 mm | 0.339 in | Radial | 125 °C | -40 °C | 2 % | 5 mm | 0.197 in | Polyphenylene Sulfide (PPS) | High Frequency Switching | 4 mm | 8.5 mm | 0.335 " | 0.157 in | ||
Panasonic Industrial Automation Sales | Through Hole | 10000 pF | 50 VDC | PC Pins | 8.8 mm | 0.346 in | Radial | 125 °C | -40 °C | 2 % | 5 mm | 0.197 in | Polyphenylene Sulfide (PPS) | High Frequency Switching | 4 mm | 8.5 mm | 0.335 " | 0.157 in | ||
Panasonic Industrial Automation Sales | Through Hole | 0.47 µF | 50 VDC | PC Pins | Radial | 125 °C | -40 °C | 5 % | 12.5 mm | 0.492 in | Polyphenylene Sulfide (PPS) | High Frequency Switching | 10 mm | 17 mm | 0.669 " | 0.394 in | 18.2 mm | 0.717 in | ||
Panasonic Industrial Automation Sales | Through Hole | 100000 pF | 50 VDC | PC Pins | 13 mm | 0.512 " | Radial | 125 °C | -40 °C | 2 % | 10 mm | 0.394 in | Polyphenylene Sulfide (PPS) | High Frequency Switching | 6 mm | 14.5 mm | 0.571 in | 0.236 in | ||
 Panasonic Industrial Automation Sales | Through Hole | 0.001 µF | 50 VDC | PC Pins | 8.6 mm | 0.339 in | Radial | 125 °C | -40 °C | 1 % | 5 mm | 0.197 in | Polyphenylene Sulfide (PPS) | High Frequency Switching | 4 mm | 8.5 mm | 0.335 " | 0.157 in |
