282830 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERMI-BLOK PLUG 90&180 10P.5

Part	Contact Mating Finish	Torque - Screw	Torque - Screw	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Insulation Height	Insulation Height	Current - UL	Number of Positions	Type	Positions Per Level	Screw Size	Plug Wire Entry	Material Flammability Rating	Termination Style	Features	Wire Strip Length [Max]	Wire Strip Length [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Mounting Type	Voltage - UL	Color	Pitch [x]	Pitch [x]	Contact Material	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]

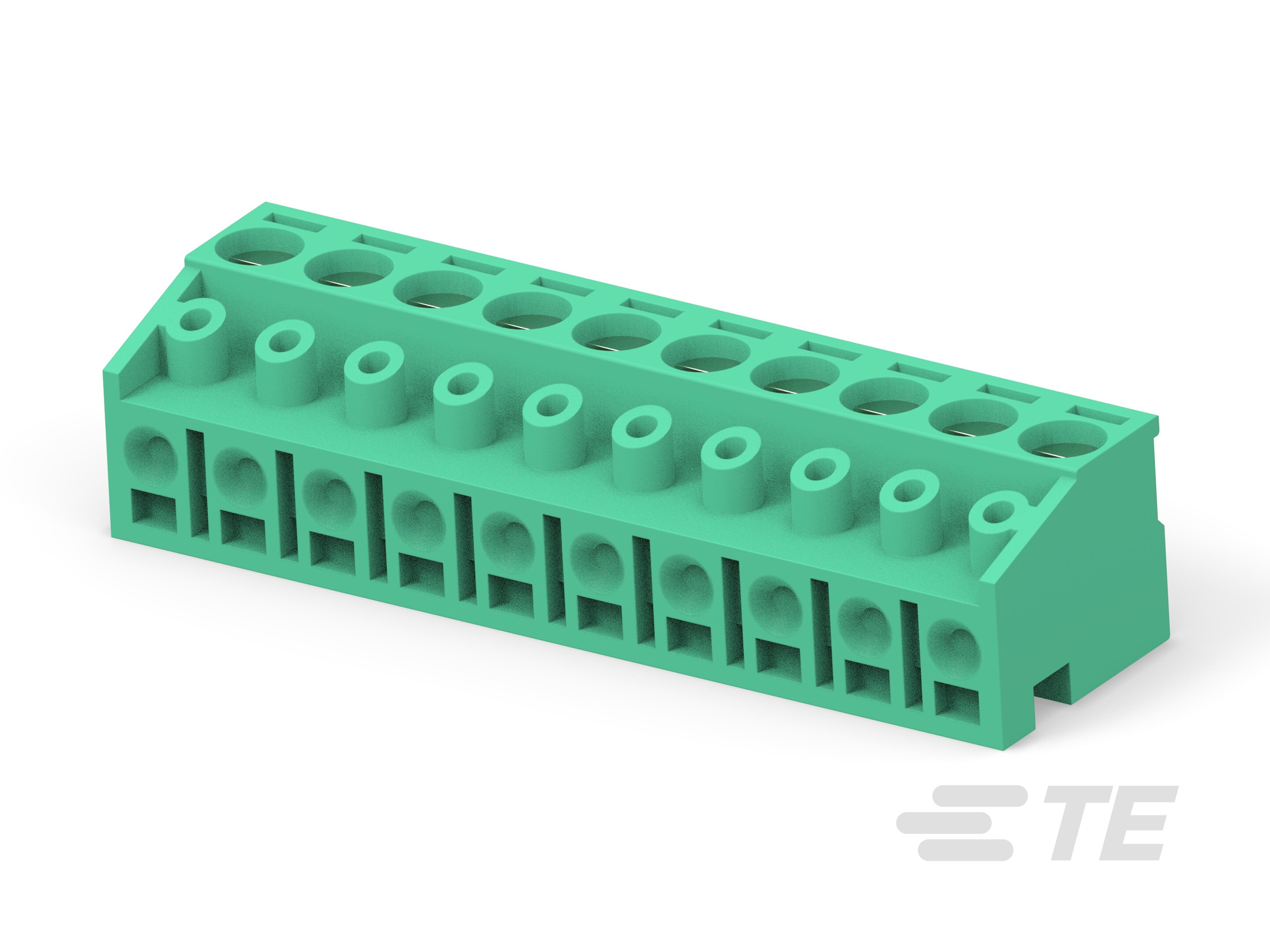

TE Connectivity Raychem Cable Protection 1-282830-0	Tin	6 Lb-In	0.68 Nm	30 AWG	12 AWG	11.5 mm	0.453 in	12 A	10	Plug for Unshrouded Header	10	M3	90 °	UL94 V-0	Screw - Rising Cage Clamp	Side Stacking	7.5 mm	6 mm	-40 °C	110 °C	1	2 mm˛	0.05 mm˛	Free Hanging (In-Line)	300 V	Green	5 mm	0.197 in	Phosphor Bronze
TE Connectivity Raychem Cable Protection 3-282830-0	Tin	6 Lb-In	0.68 Nm	30 AWG	12 AWG	11.5 mm	0.453 in	12 A		Plug for Unshrouded Header	3	M3	90 °	UL94 V-0	Screw - Rising Cage Clamp		7.5 mm	6 mm	-40 °C	110 °C	1			Free Hanging (In-Line)	300 V	Green	5 mm	0.197 in	Phosphor Bronze	0.05 mm²	2 mm²
TE Connectivity Raychem Cable Protection 282830-4	Tin	6 Lb-In	0.68 Nm	30 AWG	12 AWG	11.5 mm	0.453 in	12 A	4	Plug for Unshrouded Header	4	M3	90 °	UL94 V-0	Screw - Rising Cage Clamp	Side Stacking	7.5 mm	6 mm	-40 °C	110 °C	1	2 mm˛	0.05 mm˛	Free Hanging (In-Line)	300 V	Green	5 mm	0.197 in	Phosphor Bronze

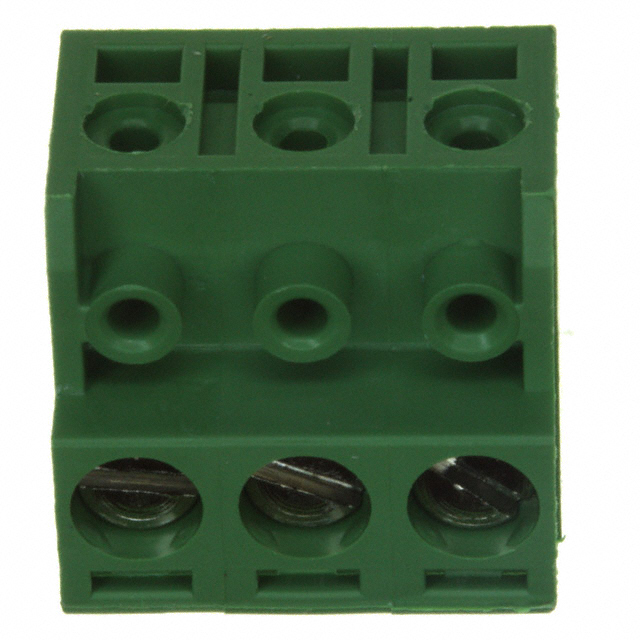

TE Connectivity Raychem Cable Protection 282830-3	Tin	6 Lb-In	0.68 Nm	30 AWG	12 AWG	11.5 mm	0.453 in	12 A		Plug for Unshrouded Header	3	M3	90 °	UL94 V-0	Screw - Rising Cage Clamp	Side Stacking	7.5 mm	6 mm	-40 °C	110 °C	1			Free Hanging (In-Line)	300 V	Green	5 mm	0.197 in	Phosphor Bronze	0.05 mm²	2 mm²

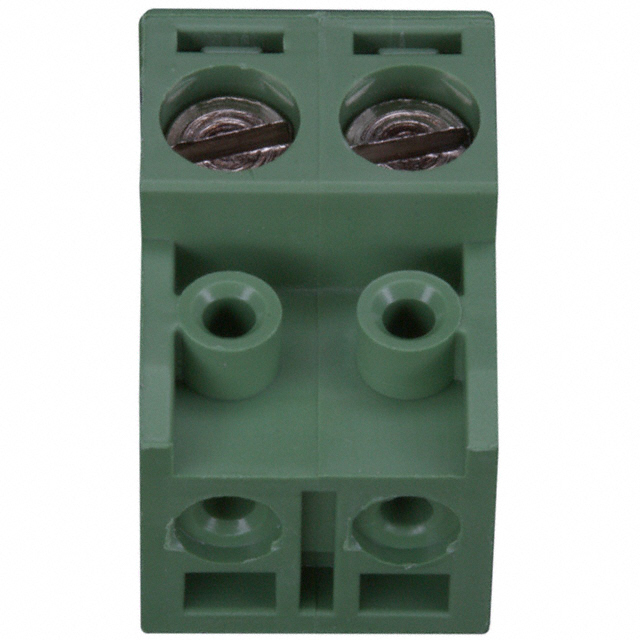

TE Connectivity Raychem Cable Protection 282830-2	Tin	6 Lb-In	0.68 Nm	30 AWG	12 AWG	11.5 mm	0.453 in	12 A	2	Plug for Unshrouded Header	2	M3	90 °	UL94 V-0	Screw - Rising Cage Clamp	Side Stacking	7.5 mm	6 mm	-40 °C	110 °C	1			Free Hanging (In-Line)	300 V	Green	5 mm	0.197 in	Phosphor Bronze	0.05 mm²	2 mm²
