E48SP Series

Catalog

DC DC CONVERTER 12V 240W

Part	Package / Case	Current - Output (Max) [Max]	Type	Efficiency	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Isolation	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Number of Outputs	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Voltage - Output 1	Power (Watts)

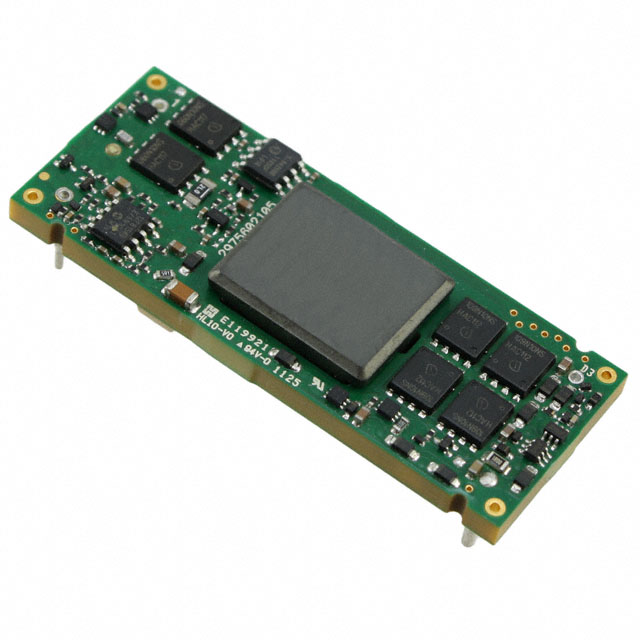

Delta Electronics E48SP12020NRFA	5-DIP Module 1/8 Brick	20 A	Isolated Module	94.5 %	Through Hole	36 V	2250 VDC	ITE (Commercial)	122 °C	-40 C	Active Low Enable	1	OCP OTP OVP Remote On/Off UVLO	0.43 in	0.9 in	2.3 in	10.9 mm	22.9 mm	58.4 mm	75 V	12 V	240 Watts
Delta Electronics E48SP12020NRFB	5-DIP Module 1/8 Brick	20 A	Isolated Module	94.5 %	Through Hole	36 V	2250 VDC	ITE (Commercial)	122 °C	-40 C	Active Low Enable	1	OCP OTP OVP Remote On/Off UVLO	0.43 in	0.9 in	2.3 in	10.9 mm	22.9 mm	58.4 mm	60 V	12 V	240 Watts

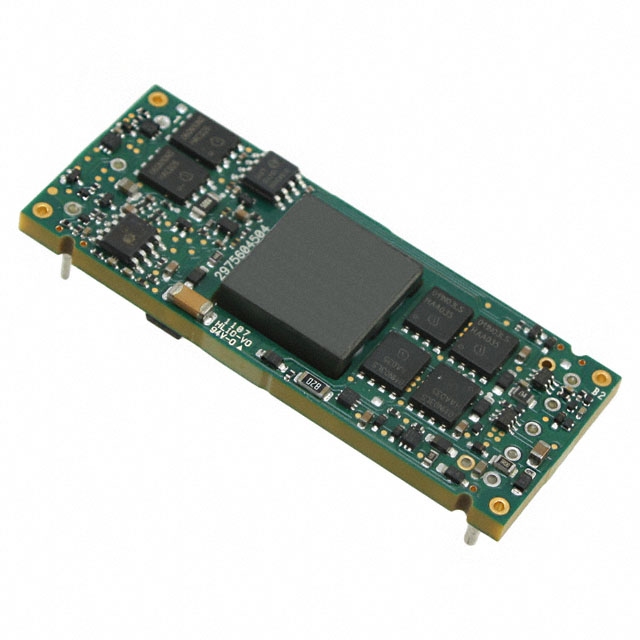

Delta Electronics E48SP3R340NRFA	8-DIP Module 1/8 Brick	40 A	Isolated Module		Through Hole	36 V	2250 VDC	ITE (Commercial)	117 °C	-40 C	Active Low Enable	1	OCP OTP OVP Remote On/Off UVLO	0.43 in	0.9 in	2.3 in	10.9 mm	22.9 mm	58.4 mm	75 V	3.3 V	132 W
