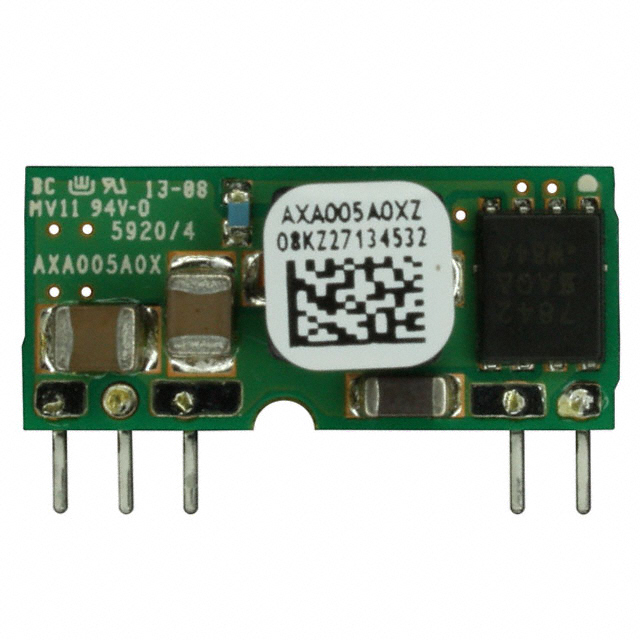

AXA005 Series
Manufacturer: OmniOn Power™
Beta
⌘K
DC DC CONVERTER 0.8-5.5V 27W
| Part | Number of Outputs | Voltage - Input (Max) [Max] | Power (Watts) | Voltage - Output 1 [Min] [custom] | Voltage - Output 1 [Max] [custom] | Control Features | Voltage - Input (Min) [Min] | Efficiency | Features | Mounting Type | Applications | Current - Output (Max) | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | 1 | 14 V | 27 W | 0.8 V | 5.5 V | Active Low Enable | 10 VDC | 89 % | OCP OTP Remote On/Off UVLO | Surface Mount | ITE (Commercial) | 5 A | 85 °C | -40 C | 5-SMD Module | Non-Isolated PoL Module | 0.8 " | 0.35 in | 8.9 mm | 0.29 in | 7.2 mm | 20.3 mm |
OmniOn Power™ | 1 | 14 V | 27 W | 0.8 V | 5.5 V | Active Low Enable | 10 VDC | 89 % | OCP OTP Remote On/Off UVLO | Surface Mount | ITE (Commercial) | 5 A | 85 °C | -40 C | 5-SMD Module | Non-Isolated PoL Module | 0.8 " | 0.35 in | 8.9 mm | 0.29 in | 7.2 mm | 20.3 mm |
 OmniOn Power™ | 1 | 14 V | 27 W | 0.8 V | 5.5 V | Active Low Enable | 10 VDC | 89 % | OCP OTP Remote On/Off UVLO | Through Hole | ITE (Commercial) | 5 A | 85 °C | -40 C | 5-SIP Module | Non-Isolated PoL Module | 0.9 in | 0.26 in | 6.6 mm | 0.4 " | 10.2 mm | 22.9 mm |
OmniOn Power™ | 1 | 14 V | 27 W | 0.8 V | 5.5 V | Active Low Enable | 10 VDC | 89 % | OCP OTP Remote On/Off UVLO | Through Hole | ITE (Commercial) | 5 A | 85 °C | -40 C | 5-SIP Module | Non-Isolated PoL Module | 0.9 in | 0.26 in | 6.6 mm | 0.4 " | 10.2 mm | 22.9 mm |
