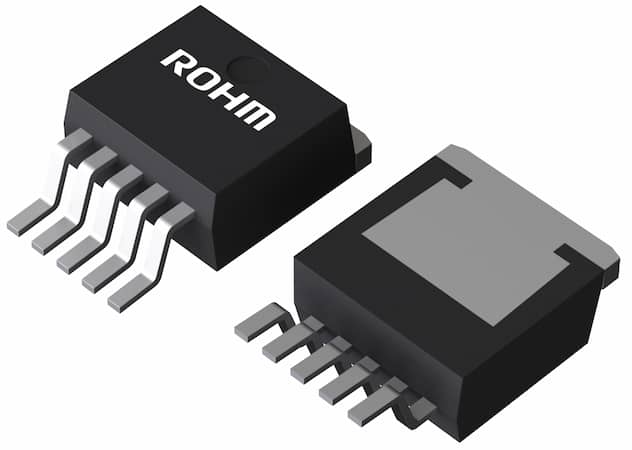

BD00FD0WFP2 Series

2A Variable Output, High-Accuracy LDO Regulator

Catalog

2A Variable Output, High-Accuracy LDO Regulator

Part	Current - Output	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Number of Regulators	Protection Features	Package / Case	Mounting Type	Control Features	Current - Quiescent (Iq)	PSRR	Voltage Dropout (Max) [Max]	Voltage - Input (Max) [Max]	Output Type	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed)
Rohm Semiconductor BD00FD0WFP2-E2	2 A	Positive	-40 °C	105 °C	TO-263-5	1	Over Current Over Temperature Short Circuit	D2PAK TO-263-6 TO-263BA	Surface Mount	Enable	1 mA	55 dB	0.55 V	32 V	Adjustable	18 V	1.5 V

Catalog

2A Variable Output, High-Accuracy LDO Regulator

Description

The BDxxFD0 series are low-saturation regulators. The series’ output voltages are Variable, and fixed type. These series have a built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits and a thermal shutdown circuit that protects the IC from thermal damage due to overloading.
