NHD-0420 Series

Catalog

OLED MODULE 80DIG 20 X 4 PASSIVE

Part	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Operating Temperature [Max]	Operating Temperature [Min]	Character Format [x]	Character Format [y]	Dot Size [y]	Dot Size [x]	Background Color	Display Type	Text Color	Interface	Display Format [x]	Display Format [y]	Display Mode	Number of Characters	Viewing Area [y]	Viewing Area [x]	Voltage - Supply [Max]	Voltage - Supply [Min]	Character Size [y]	Character Size [z]	Backlight	Controller Type	Dot Size [custom]	Dot Size [custom]	Dot Size [custom]	Dot Size [custom]

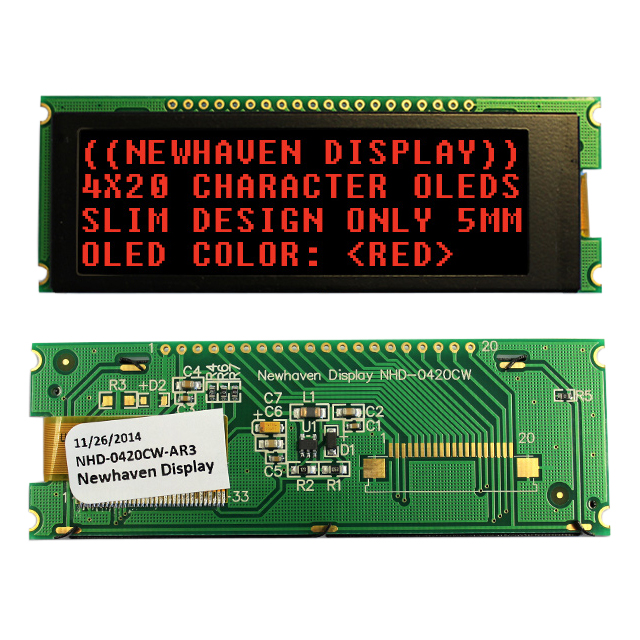

Newhaven Display Intl NHD-0420CW-AR3	31.5 mm	2.5 mm	92 mm	85 °C	-40 C	5 Dots	8 Dots	0.57 mm	0.57 mm	Black	OLED	Red	8-Bit I2C Parallel SPI	20	4	Passive	80	22.82 mm	72.42 mm	5.5 V	2.4 V	2.97 mm	4.77 mm

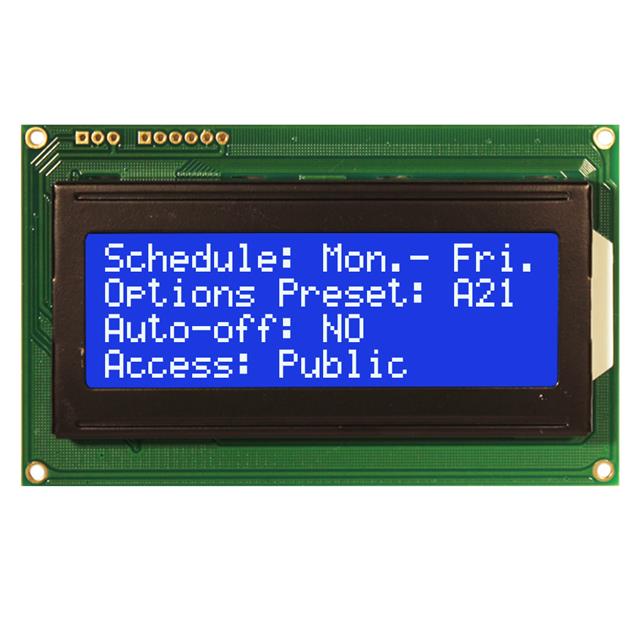

Newhaven Display Intl NHD-0420D3Z-NSW-BBW-V3	60 mm	13.5 mm	98 mm	70 °C	-20 ░C	5 Dots	8 Dots	0.55 mm	0.55 mm	Blue	STN - Super-Twisted Nematic	White	I2C RS-232 SPI	20	4	Transmissive	80	25.2 mm	76 mm	5.5 V	4.7 V			LED - White	PIC16F699

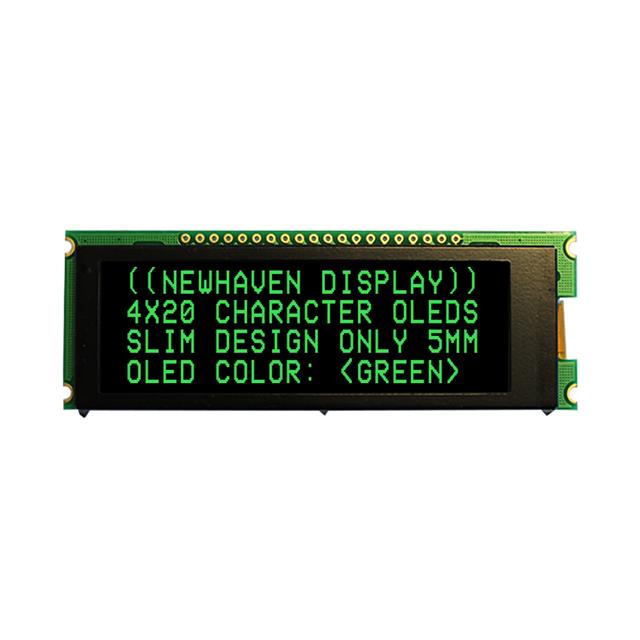

Newhaven Display Intl NHD-0420CW-AG3	31.5 mm	2.5 mm	92 mm	85 °C	-40 C	5 Dots	8 Dots	0.57 mm	0.57 mm	Black	OLED	Green	8-Bit I2C Parallel SPI	20	4	Passive	80	22.82 mm	72.42 mm	5.5 V	2.4 V	2.97 mm	4.77 mm		US2066

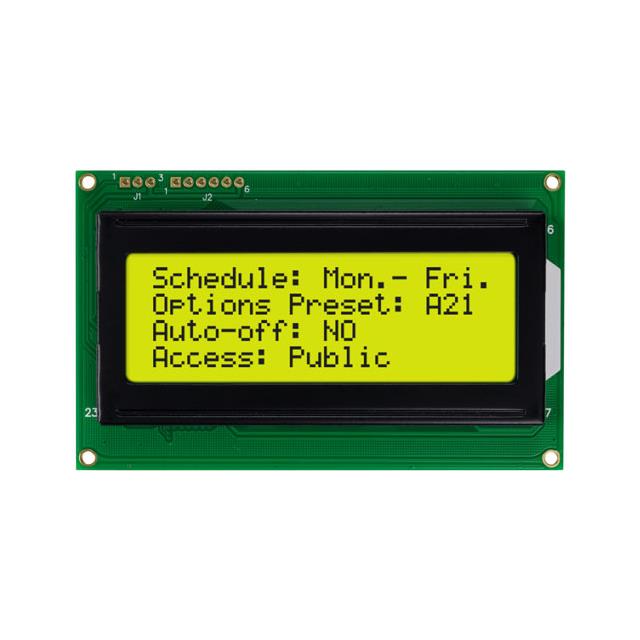

Newhaven Display Intl NHD-0420D3Z-FL-GBW-V3	60 mm	13.5 mm	98 mm	70 °C	-20 ░C	5 Dots	8 Dots	0.55 mm	0.55 mm	Green	STN - Super-Twisted Nematic	Blue	I2C RS-232 SPI	20	4	Transflective	80	25.2 mm	76 mm	5.5 V	4.7 V				PIC16F698

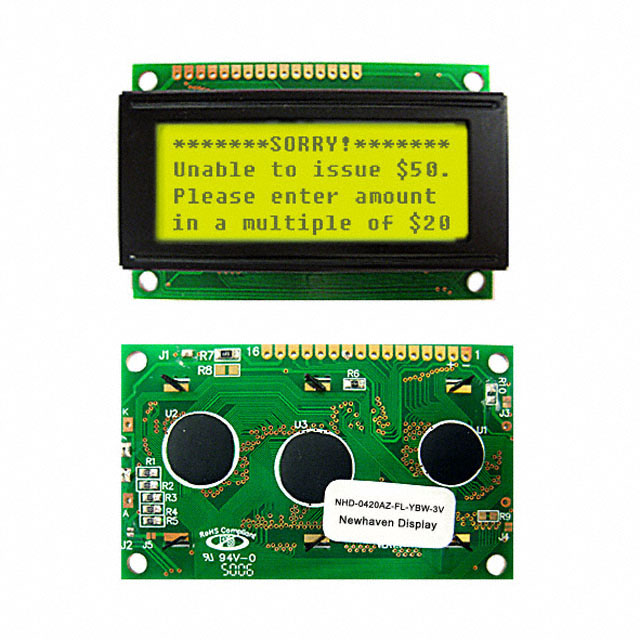

Newhaven Display Intl NHD-0420AZ-FL-YBW-3V	47 mm	14.5 mm	77 mm	70 °C	-20 ░C	5 Dots	8 Dots			Green	STN - Super-Twisted Nematic	Gray	Parallel	20	4	Transflective	80	22 mm	60 mm	3.3 V	2.7 V	2.3 mm	4.03 mm			0.42 mm	0.46 mm

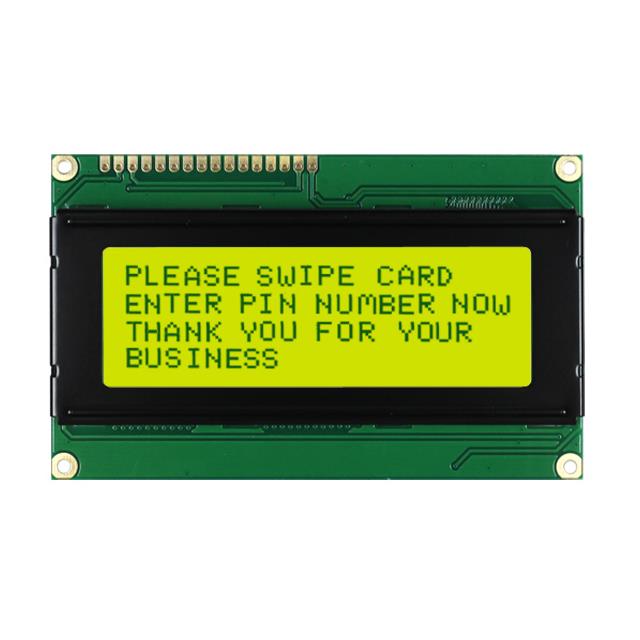

Newhaven Display Intl NHD-0420DZ-FL-YBW	60 mm	13.6 mm	98 mm	70 °C	-20 ░C	5 Dots	8 Dots	0.55 mm	0.55 mm	Green	STN - Super-Twisted Nematic	Gray	Parallel	20	4	Transflective	80	25.2 mm	77 mm	5.5 V	4.5 V				SPLC780D ST7066U
Newhaven Display Intl NHD-0420CW-AY3	31.5 mm	2.5 mm	92 mm	85 °C	-40 C	5 Dots	8 Dots	0.57 mm	0.57 mm	Black	OLED	Yellow	8-Bit I2C Parallel SPI	20	4	Passive	80	22.82 mm	72.42 mm	5.5 V	2.4 V	2.97 mm	4.77 mm		US2066

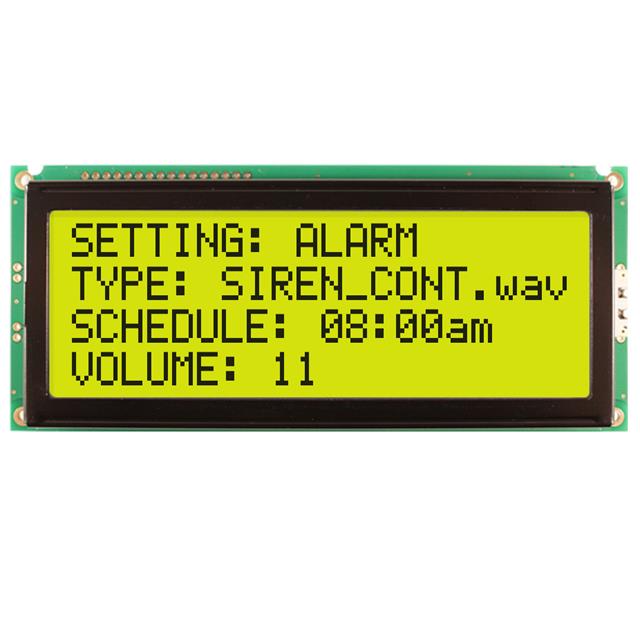

Newhaven Display Intl NHD-0420E2Z-FL-GBW	62.5 mm	14.5 mm	146 mm	70 °C	-20 ░C	5 Dots	8 Dots	1.1 mm	0.92 mm	Green	STN - Super-Twisted Nematic	Blue	Parallel	20	4	Transflective	80	42.5 mm	123 mm	5.5 V	4.7 V	4.84 mm	9.22 mm		KS0066U

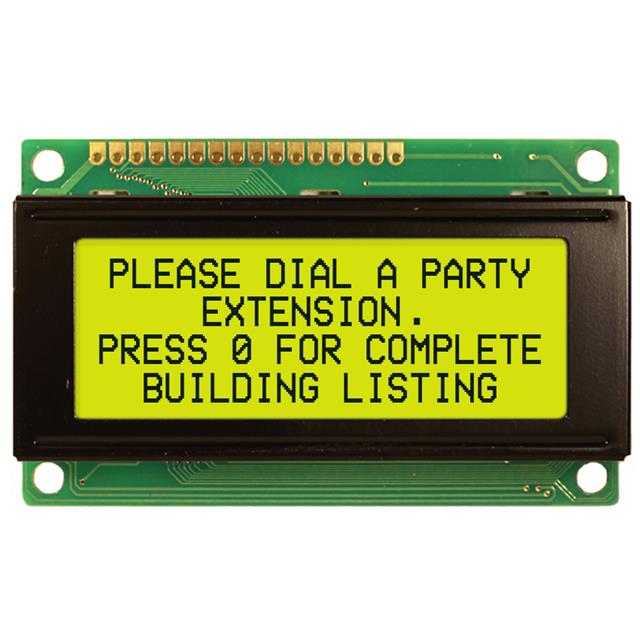

Newhaven Display Intl NHD-0420AZ-FL-GBW-33V3	47 mm	14.5 mm	77 mm	70 °C	-20 ░C	5 Dots	8 Dots			Green	STN - Super-Twisted Nematic	Blue	Parallel	20	4	Transflective	80	22 mm	60 mm	3.6 V	3 V	2.3 mm	4.03 mm		SPLC780D ST7066U	0.42 mm	0.46 mm

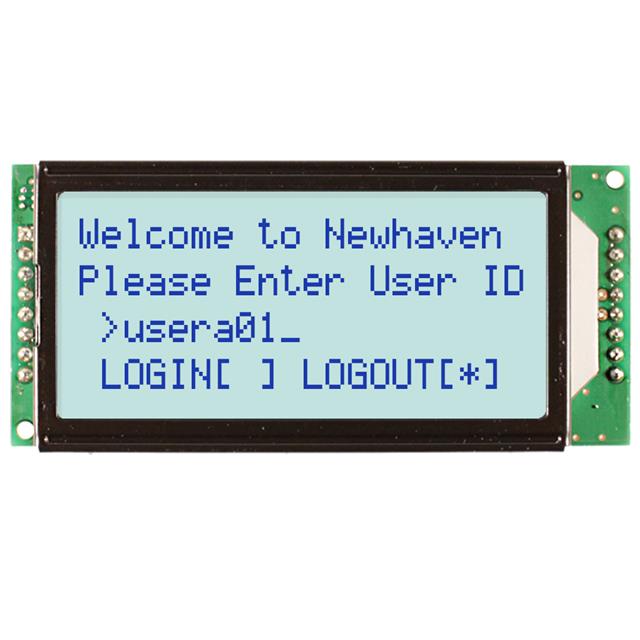

Newhaven Display Intl NHD-0420H1Z-FSW-GBW	36 mm	13 mm	79 mm	70 °C	-20 ░C	5 Dots	8 Dots			White	STN - Super-Twisted Nematic	Gray	Parallel	20	4	Transflective	80	28 mm	60 mm	5.5 V	4.7 V	2.35 mm	5.15 mm	LED - White	SPLC780D ST7066U			0.6 mm	0.43 mm
