CL-B101D Series
Manufacturer: Texmate
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SWITCHBOARD STYLE 0-9999 HZ CIRC
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Relay (Count) | Output Type | Mounting Type | Termination Style | Panel Cutout Shape | Panel Cutout Diameter | Display Characters - Height | Number of Characters Per Row | Type | Display Type | Measuring Type | Voltage - Supply (Range 1 Minimum) | Voltage - Supply (Range 1 Maximum) | Voltage - Supply (Range 2 Minimum) | Voltage - Supply (Range 2 Maximum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

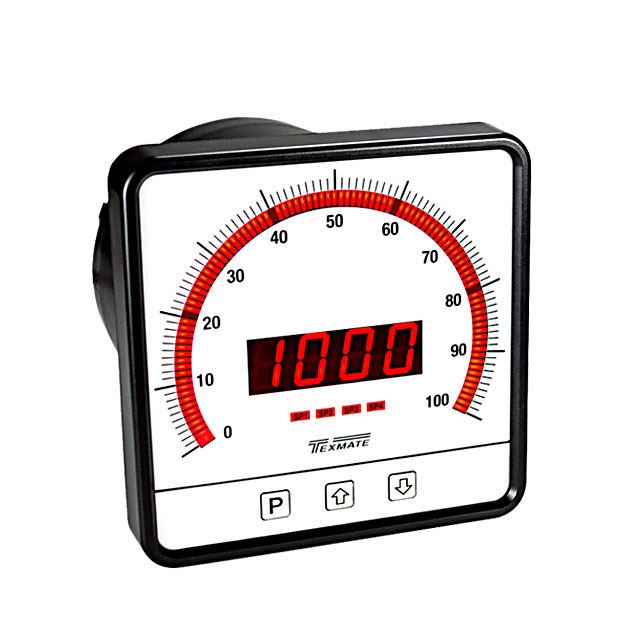

 Texmate | 0 °C | 50 °C | 2 | Analog Relay | Panel Mount | Screw Terminal | Round | 97.77 mm | 0.56 in | 4 characters | Frequency Meter | LED - Red Bar Graph LED - Red Characters | Frequency | 85 VAC | 265 VAC | 95 VDC | 300 VDC |

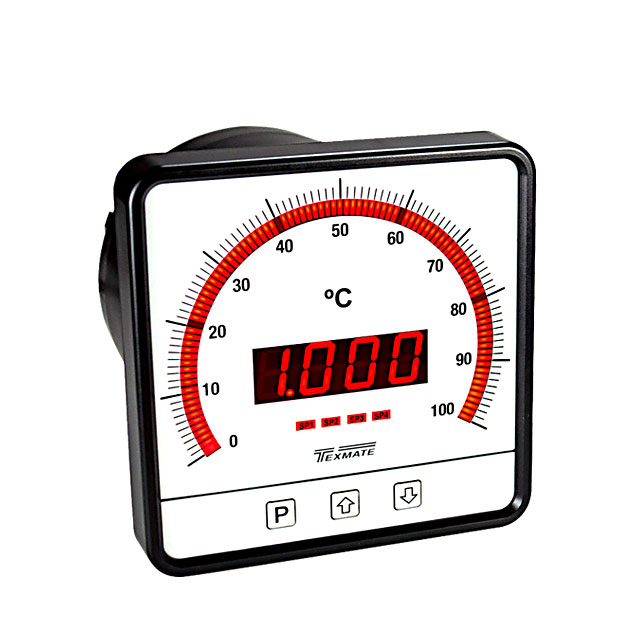

 Texmate | 0 °C | 50 °C | 2 | Analog Relay | Panel Mount | Screw Terminal | Round | 97.77 mm | 0.56 in | 4 characters | Temperature Meter | LED - Red Bar Graph LED - Red Characters | Thermocouple | 85 VAC | 265 VAC | 95 VDC | 300 VDC |
 Texmate | 0 °C | 50 °C | 2 | Analog Relay | Panel Mount | Screw Terminal | Round | 97.77 mm | 0.56 in | 4 characters | Temperature Meter | LED - Red Bar Graph LED - Red Characters | RTD | 85 VAC | 265 VAC | 95 VDC | 300 VDC |
