75022 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

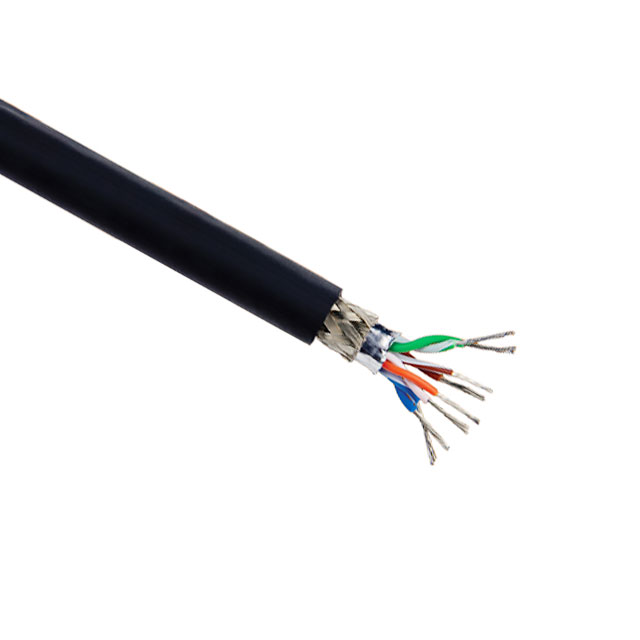

CABLE CAT5E 4COND 24AWG BLK 500'
| Part | Voltage | Cable Type | Conductor Material | Features | Length [x] | Length [x] | Number of Conductors | Jacket (Insulation) Material | Shield Material | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Coverage | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 300 V | Multi-Pair Cat5e | Copper Bare | Biological Compatibility Drain Wire Rip Cord | 500 ' | 152.4 m | 4 | Thermoplastic Elastomer (TPE) | Aluminum Copper Tinned | ISO 10993 | -50 °C | 75 ░C | Polypropylene (PP) | Communication | 0.889 mm | 0.035 in | 70 % 100 % | Braid Foil | 32 AWG | 7 | 8.26 mm | 0.325 in | Black | 24 AWG |
