895-022 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 22POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Contact Material	Read Out	Mounting Type	Number of Positions	Contact Finish	Features	Color	Gender	Termination	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Pitch	Pitch	Termination Rows	Number of Rows

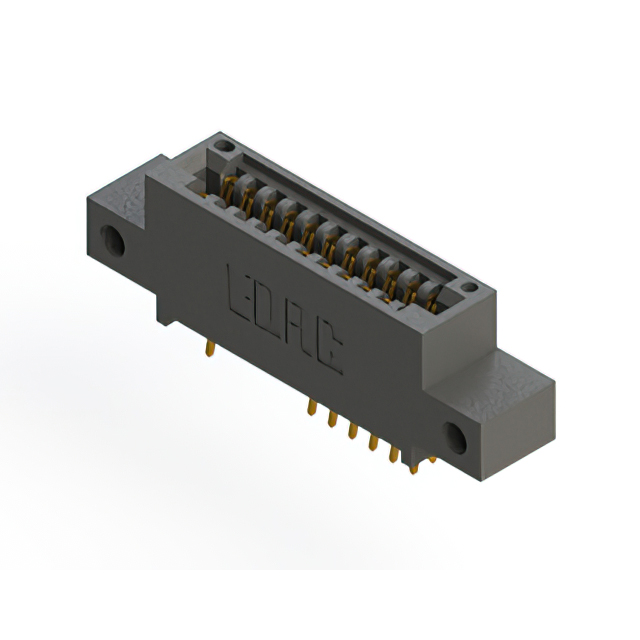

EDAC Inc. 895-022-556-512	Polyphenylene Sulfide (PPS)	2	11	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Copper Alloy	Dual	Board Edge Straddle Mount	22	Gold	Card Extender	Black	Female	Solder	Cantilever	125 °C	-40 C	Non Specified - Dual Edge	Side Mount Opening Unthreaded	0.128 "	3.25 mm	0.1 "	2.54 mm
EDAC Inc. 895-022-542-607	Polyphenylene Sulfide (PPS)		22	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm		Copper Alloy	Single	Through Hole	22	Gold		Black	Female	Wire Wrap	Cantilever	125 °C	-40 C	Non Specified - Single Edge	M3 Threaded Insert Top Mount Opening			0.1 "	2.54 mm	1	1
EDAC Inc. 895-022-559-603	Polyphenylene Sulfide (PPS)		22	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm		Copper Alloy	Single	Right Angle Through Hole	22	Gold		Black	Female	Solder	Cantilever	125 °C	-40 C	Non Specified - Single Edge	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	0.1 "	2.54 mm	1	1
EDAC Inc. 895-022-500-612	Polyphenylene Sulfide (PPS)		22	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm		Copper Alloy	Single	Through Hole	22	Gold		Black	Female	Solder Eyelet(s)	Cantilever	125 °C	-40 C	Non Specified - Single Edge	Side Mount Opening Unthreaded	0.128 "	3.25 mm	0.1 "	2.54 mm	1	1

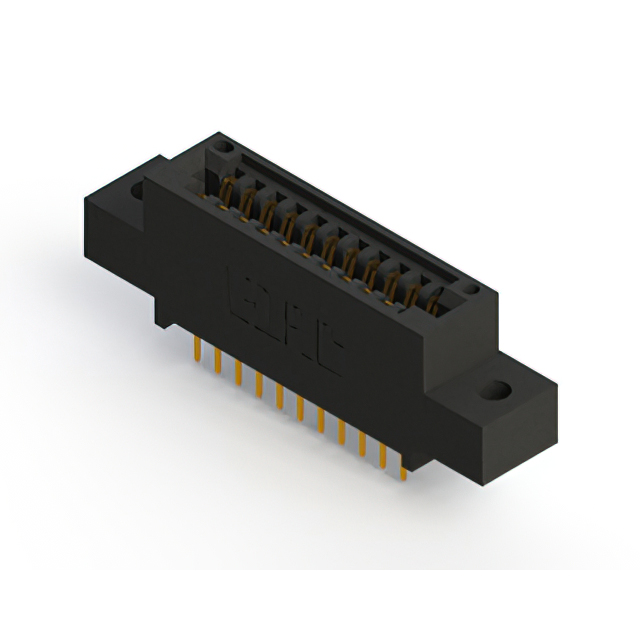

EDAC Inc. 895-022-525-502	Polyphenylene Sulfide (PPS)	2	11	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Copper Alloy	Dual	Through Hole	22	Gold		Black	Female	Solder	Cantilever	125 °C	-40 C	Non Specified - Dual Edge		0.128 "	3.25 mm	0.1 "	2.54 mm

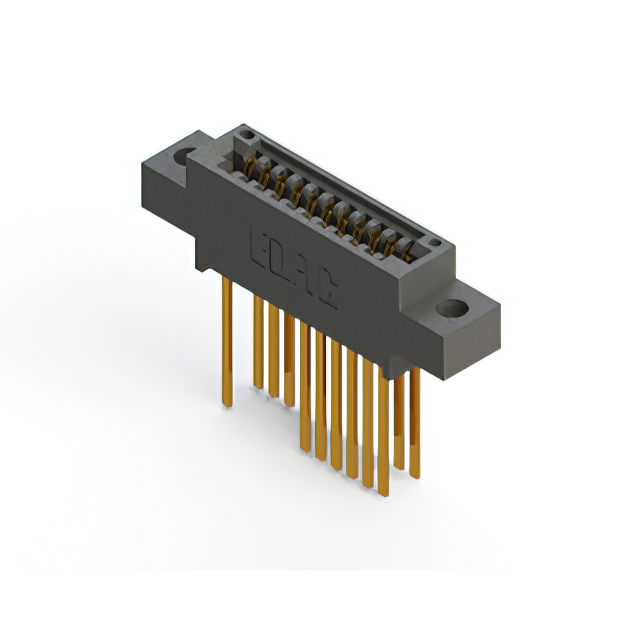

EDAC Inc. 895-022-544-804	Polyphenylene Sulfide (PPS)	2	11	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Copper Alloy	Dual	Through Hole	22	Gold		Black	Female	Wire Wrap	Cantilever	125 °C	-40 C	Non Specified - Dual Edge		0.156 "	3.96 mm	0.1 "	2.54 mm

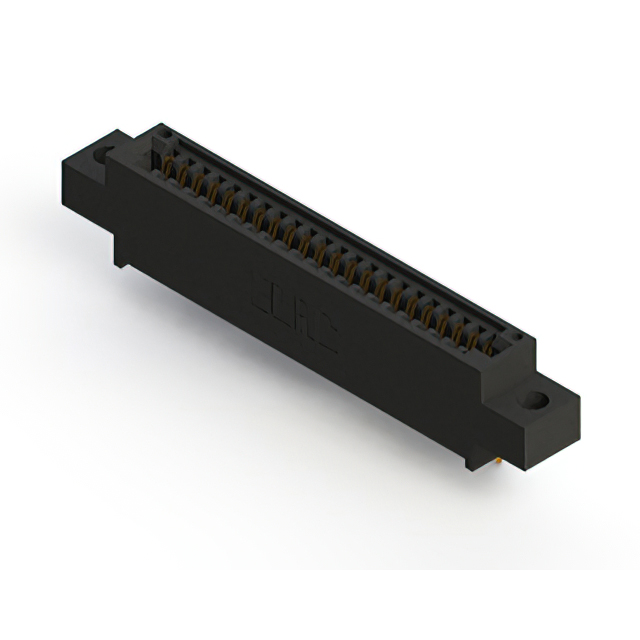

EDAC Inc. 895-022-500-604	Polyphenylene Sulfide (PPS)		22	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm		Copper Alloy	Single	Through Hole	22	Gold		Black	Female	Solder Eyelet(s)	Cantilever	125 °C	-40 C	Non Specified - Single Edge		0.156 "	3.96 mm	0.1 "	2.54 mm	1	1

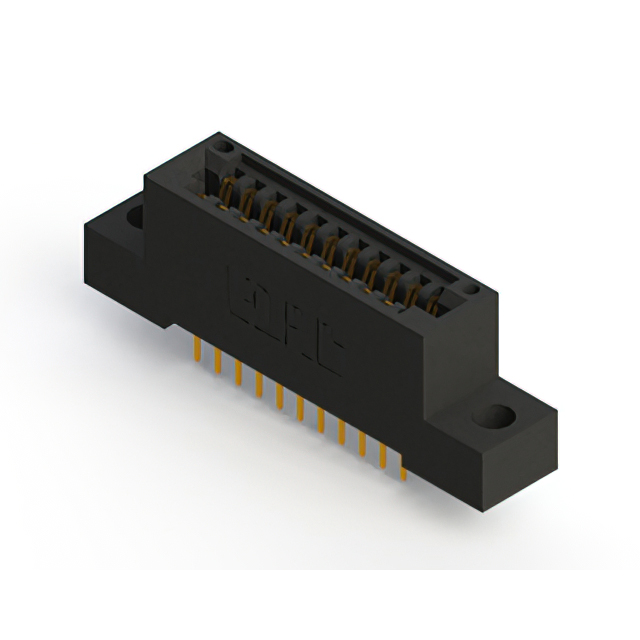

EDAC Inc. 895-022-525-204	Polyphenylene Sulfide (PPS)	2	11	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Copper Alloy	Dual	Through Hole	22	Gold		Black	Female	Solder	Cantilever	125 °C	-40 C	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	0.1 "	2.54 mm

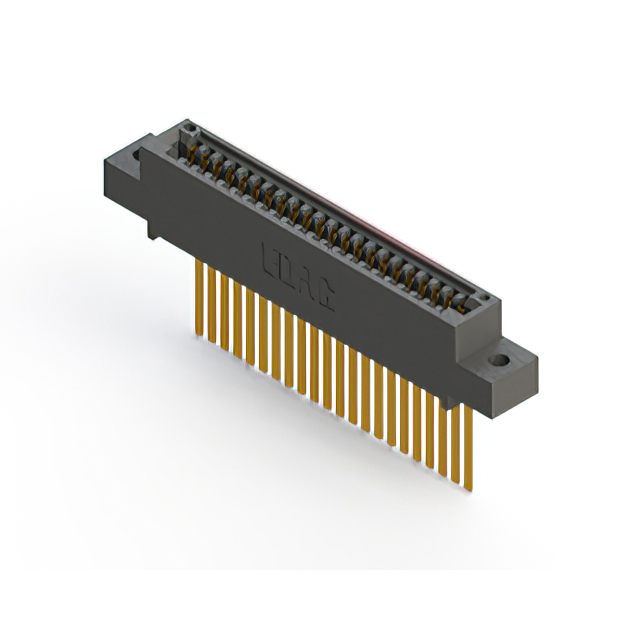

EDAC Inc. 895-022-544-402	Polyphenylene Sulfide (PPS)		22	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm		Copper Alloy	Single	Through Hole	22	Gold		Black	Female	Wire Wrap	Cantilever	125 °C	-40 C	Non Specified - Single Edge		0.128 "	3.25 mm	0.1 "	2.54 mm	1	1

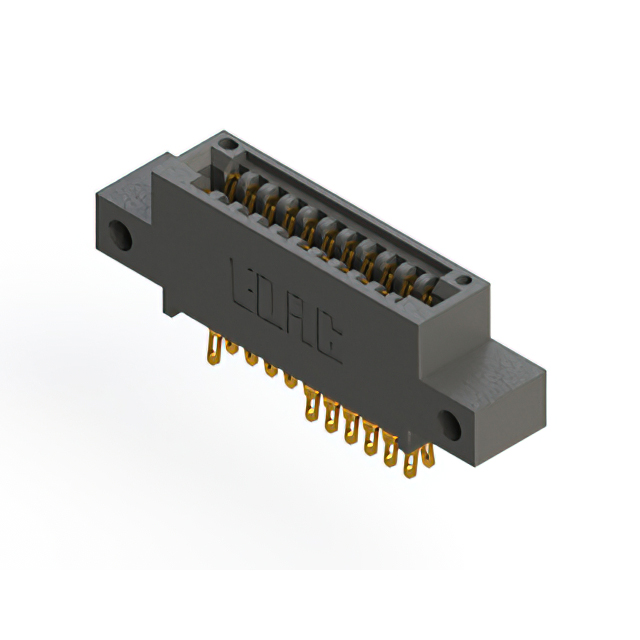

EDAC Inc. 895-022-555-512	Polyphenylene Sulfide (PPS)	2	11	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Copper Alloy	Dual	Board Edge Straddle Mount	22	Gold	Card Extender	Black	Female	Solder	Cantilever	125 °C	-40 C	Non Specified - Dual Edge	Side Mount Opening Unthreaded	0.128 "	3.25 mm	0.1 "	2.54 mm
