054550 Series

Manufacturer: Molex

Catalog

CONN FFC FPC TOP 9POS 0.5MM R/A

Part	Pitch [x]	Pitch [x]	Actuator Material	Flat Flex Type	Connector/Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	FFC, FCB Thickness	Voltage Rating	Termination	Mating Cycles	Current Rating (Amps)	Contact Material	Cable End Type	Mounting Type	Number of Positions	Features	Height Above Board	Height Above Board	Locking Feature	Housing Material	Contact Finish	Actuator Color	Housing Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
Molex 0545500972	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS)	FFC FPC	Contacts Top	85 °C	-40 °C	UL94 V-0	0.3 mm	50 V	Solder	20	0.5 A	Phosphor Bronze	Straight Tapered	Surface Mount Right Angle	9	Solder Retention Zero Insertion Force (ZIF)	0.047 "	1.2 mm	Slide Lock	Liquid Crystal Polymer (LCP)	Gold

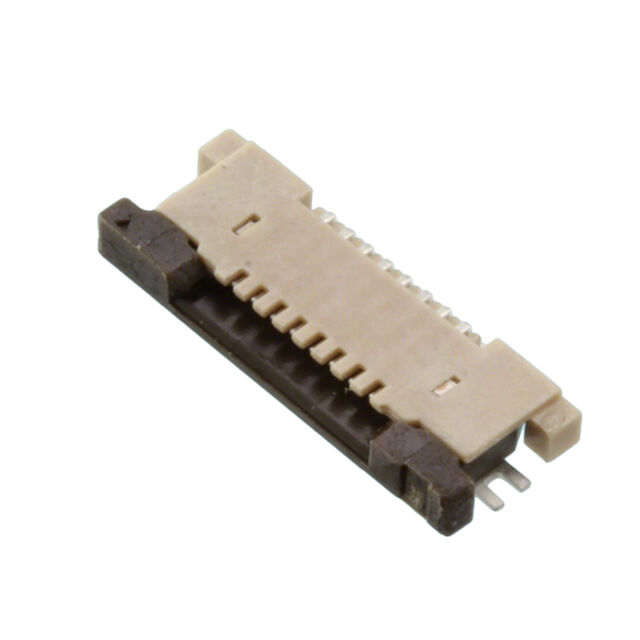

Molex 0545500833	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS) Glass Filled	FFC FPC	Contacts Top	85 °C	-40 °C	UL94 V-0	0.3 mm	50 V	Solder		0.5 A	Phosphor Bronze	Straight Tapered	Surface Mount Right Angle	8	Solder Retention Zero Insertion Force (ZIF)	0.047 "	1.2 mm	Slide Lock	Liquid Crystal Polymer (LCP) Glass Filled	Tin Bismuth	Brown	White	39.4 Áin	1 Ám
Molex 0545502419	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS)	FFC FPC	Contacts Top	85 °C	-20 C	UL94 V-0	0.3 mm	50 V	Solder	20	0.5 A	Phosphor Bronze	Straight Tapered	Surface Mount Right Angle	24	Solder Retention Zero Insertion Force (ZIF)	0.047 "	1.2 mm	Slide Lock	Liquid Crystal Polymer (LCP)	Tin Bismuth			8 çin	0.203 çm
Molex 0545500534	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS) Glass Filled	FFC FPC	Contacts Top	85 °C	-40 °C	UL94 V-0	0.3 mm	50 V	Solder	20	0.5 A	Phosphor Bronze	Straight Tapered	Surface Mount Right Angle		Solder Retention Zero Insertion Force (ZIF)	0.047 "	1.2 mm	Slide Lock	Liquid Crystal Polymer (LCP) Glass Filled	Tin Bismuth	Brown	White	39.4 Áin	1 Ám
Molex 0545502033	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS) Glass Filled	FFC FPC	Contacts Top	85 °C	-40 °C	UL94 V-0	0.3 mm	50 V	Solder		0.5 A	Phosphor Bronze	Straight Tapered	Surface Mount Right Angle	20	Solder Retention Zero Insertion Force (ZIF)	0.047 "	1.2 mm	Slide Lock	Liquid Crystal Polymer (LCP) Glass Filled	Tin Bismuth	Brown	White	39.4 Áin	1 Ám
Molex 0545501371	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS)	FFC FPC	Contacts Top	85 °C	-20 C	UL94 V-0	0.3 mm	50 V	Solder	20	0.5 A	Phosphor Bronze	Straight Tapered	Surface Mount Right Angle	13	Solder Retention Zero Insertion Force (ZIF)	0.047 "	1.2 mm	Slide Lock	Liquid Crystal Polymer (LCP)	Gold
Molex 0545502494	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS)	FFC FPC	Contacts Top	85 °C	-20 C	UL94 V-0	0.3 mm	50 V	Solder	20	0.5 A	Phosphor Bronze	Straight Tapered	Surface Mount Right Angle	24	Solder Retention Zero Insertion Force (ZIF)	0.047 "	1.2 mm	Slide Lock	Liquid Crystal Polymer (LCP)	Tin Bismuth			8 çin	0.203 çm

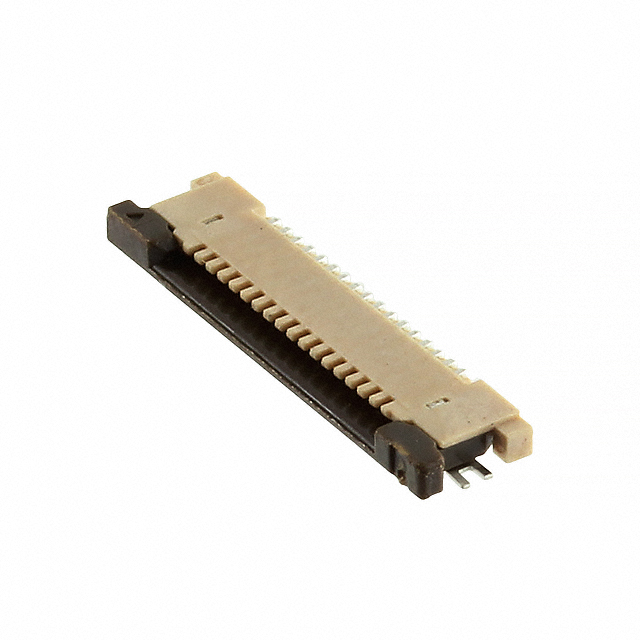

Molex 0545501771	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS)	FFC FPC	Contacts Top	85 °C	-20 C	UL94 V-0	0.3 mm	50 V	Solder	20	0.5 A	Phosphor Bronze	Straight Tapered	Surface Mount Right Angle		Solder Retention Zero Insertion Force (ZIF)	0.047 "	1.2 mm	Slide Lock	Liquid Crystal Polymer (LCP)	Gold
Molex 0545501633	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS) Glass Filled	FFC FPC	Contacts Top	85 °C	-40 °C	UL94 V-0	0.3 mm	50 V	Solder		0.5 A	Phosphor Bronze	Straight Tapered	Surface Mount Right Angle		Solder Retention Zero Insertion Force (ZIF)	0.047 "	1.2 mm	Slide Lock	Liquid Crystal Polymer (LCP) Glass Filled	Tin Bismuth	Brown	White	39.4 Áin	1 Ám	16
Molex 0545500794	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS)	FFC FPC	Contacts Top	85 °C	-20 C	UL94 V-0	0.3 mm	50 V	Solder	20	0.5 A	Phosphor Bronze	Straight Tapered	Surface Mount Right Angle	7	Solder Retention Zero Insertion Force (ZIF)	0.047 "	1.2 mm	Slide Lock	Liquid Crystal Polymer (LCP)	Tin Bismuth			8 çin	0.203 çm
