56S105 Series
Manufacturer: Rosenberger
Beta
⌘K

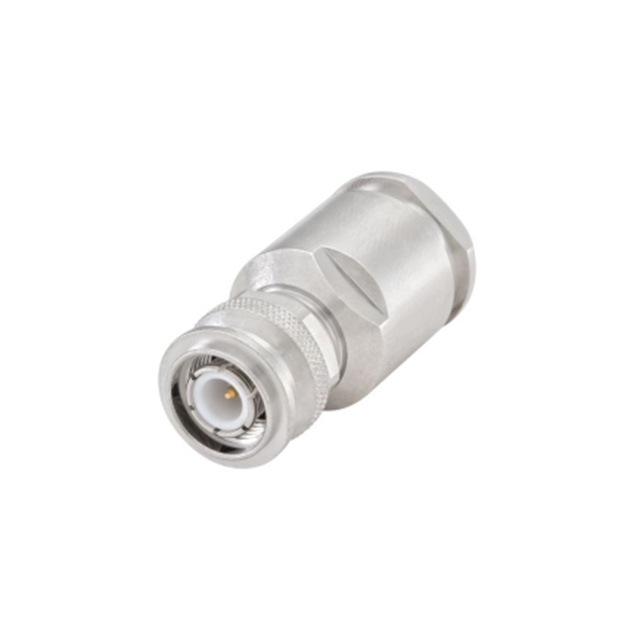

CONN TNC PLUG STR 50OHM SOLDER
| Part | Voltage Rating | Dielectric Material | Center Contact Plating | Body Finish | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Material | Housing Color | Center Contact Material | Contact Termination | Number of Ports | Mounting Type | Connector Style | Fastening Type | Frequency - Max [Max] | Connector Type | Shield Termination | Cable Group | Impedance | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 V | Polytetrafluoroethylene (PTFE) | Gold | White Bronze | 1 | -65 ░C | 165 °C | 500 | Brass | Silver | Brass | Solder | 1 | Free Hanging (In-Line) | TNC | Threaded | 10 GHz | Plug Male Pin | Clamp | 214 RG-213 | 50 Ohms | IP63 - Dust Tight Water Resistant |
