895-084 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 84POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Card Type	Gender	Read Out	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Flange Feature	Contact Finish	Contact Type	Number of Rows [custom]	Color	Termination	Pitch	Pitch	Number of Positions/Bay/Row	Number of Positions [custom]	Card Thickness [Max]	Card Thickness [Min]	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 895-084-523-808	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	Dual	Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Gold	Cantilever	2	Black	Solder	0.1 "	2.54 mm	42	84	0.07 in 1.78 mm	0.054 in 1.37 mm

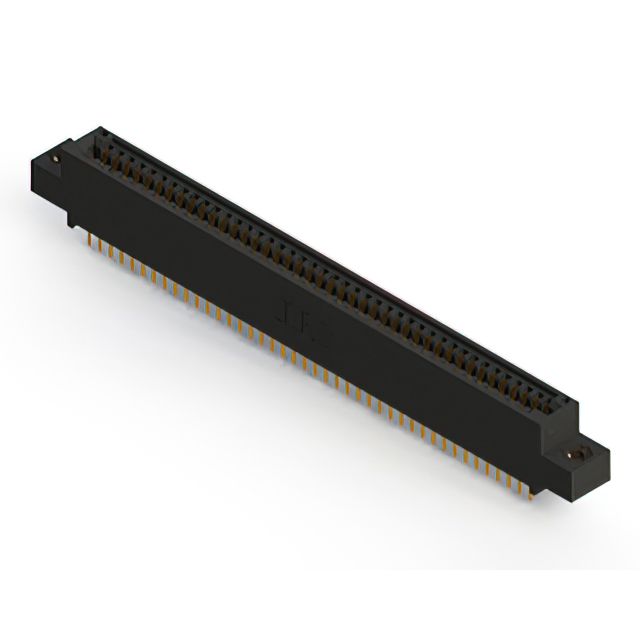

EDAC Inc. 895-084-525-508	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	Dual	Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Gold	Cantilever	2	Black	Solder	0.1 "	2.54 mm	42	84	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 895-084-560-507	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	Dual	Board Edge Straddle Mount	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy	M3 Threaded Insert Top Mount Opening	Gold	Cantilever	2	Black	Solder	0.1 "	2.54 mm	42	84	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender
EDAC Inc. 895-084-555-208	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	Dual	Board Edge Straddle Mount	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Gold	Cantilever	2	Black	Solder	0.1 "	2.54 mm	42	84	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender

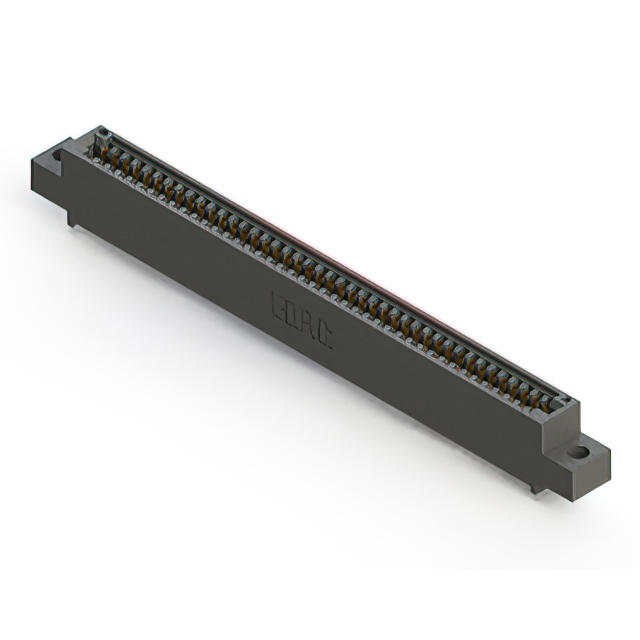

EDAC Inc. 895-084-556-504	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	Dual	Board Edge Straddle Mount	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy		Gold	Cantilever	2	Black	Solder	0.1 "	2.54 mm	42	84	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender	0.156 "	3.96 mm
EDAC Inc. 895-084-544-201	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	Dual	Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy		Gold	Cantilever	2	Black	Wire Wrap	0.1 "	2.54 mm	42	84	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 895-084-560-802	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	Dual	Board Edge Straddle Mount	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy		Gold	Cantilever	2	Black	Solder	0.1 "	2.54 mm	42	84	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender	0.128 "	3.25 mm
EDAC Inc. 895-084-523-204	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	Dual	Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy	Flush Mount Top Opening Unthreaded	Gold	Cantilever	2	Black	Solder	0.1 "	2.54 mm	42	84	0.07 in 1.78 mm	0.054 in 1.37 mm		0.156 "	3.96 mm
EDAC Inc. 895-084-544-803	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	Dual	Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy	Floating Bobbin Top Mount Opening	Gold	Cantilever	2	Black	Wire Wrap	0.1 "	2.54 mm	42	84	0.07 in 1.78 mm	0.054 in 1.37 mm		0.116 "	2.95 mm
EDAC Inc. 895-084-524-201	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Female	Dual	Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy		Gold	Cantilever	2	Black	Solder	0.1 "	2.54 mm	42	84	0.07 in 1.78 mm	0.054 in 1.37 mm
