3136-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

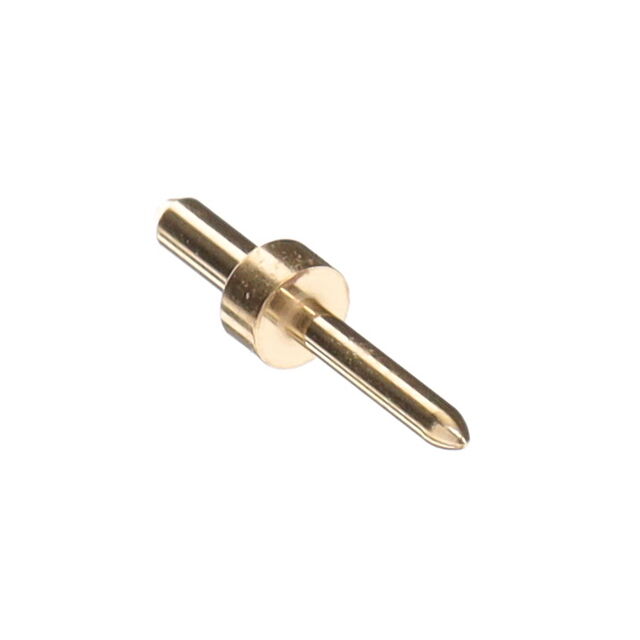

CONN PC PIN CIRC .030DIA GOLD
| Part | Length - Overall | Length - Overall | Board Thickness [custom] | Board Thickness [custom] | Contact Finish Thickness | Contact Finish Thickness | Termination | Mounting Type | Length - Below Flange [x] | Length - Below Flange [x] | Contact Finish | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Terminal Style | Length - Above Flange | Length - Above Flange | Terminal Type | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Insulation | Pin Size - Above Flange [diameter] | Pin Size - Above Flange |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 8.38 mm | 0.33 in | 0.094 in | 2.39 mm | 0.25 Ám | 10 Áin | Solder | Through Hole | 0.18 " | 4.57 mm | Gold | 0.03 in | 0.76 mm | Double End | 0.11 in | 2.79 mm | PC Pin | Brass Alloy | 0.078 " | 1.98 mm | 0.043 in | 1.09 mm | Non-Insulated | 0.04 in | 1.02 mm |
 Mill-Max Manufacturing Corp. | 8.38 mm | 0.33 in | 0.094 in | 2.39 mm | 5.08 Ám | 200 Áin | Solder | Through Hole | 0.18 " | 4.57 mm | Tin | 0.03 in | 0.76 mm | Double End | 0.11 in | 2.79 mm | PC Pin | Brass Alloy | 0.078 " | 1.98 mm | 0.043 in | 1.09 mm | Non-Insulated | 0.04 in | 1.02 mm |
Mill-Max Manufacturing Corp. | 8.38 mm | 0.33 in | 0.094 in | 2.39 mm | 5.08 Ám | 200 Áin | Solder | Through Hole | 0.18 " | 4.57 mm | Tin-Lead | 0.03 in | 0.76 mm | Double End | 0.11 in | 2.79 mm | PC Pin | Brass Alloy | 0.078 " | 1.98 mm | 0.043 in | 1.09 mm | Non-Insulated | 0.04 in | 1.02 mm |
Mill-Max Manufacturing Corp. | 8.38 mm | 0.33 in | 0.094 in | 2.39 mm | 0.51 µm | 20 µin | Solder | Through Hole | 0.18 " | 4.57 mm | Gold | 0.03 in | 0.76 mm | Double End | 0.11 in | 2.79 mm | PC Pin | Brass Alloy | 0.078 " | 1.98 mm | 0.043 in | 1.09 mm | Non-Insulated | 0.04 in | 1.02 mm |
