782100 Series

Catalog

SMPS TRANSFORMER, TOROIDAL CONVERTER, 4 KV, 5V

Part	Inductance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	For Use With/Related Products	Size / Dimension
Murata Electronics 782100/53VC	260 µH	0.36 in	9.14 mm	0.385 "	9.77 mm	Through Hole	6.35 mm	0.25 in	PE22100

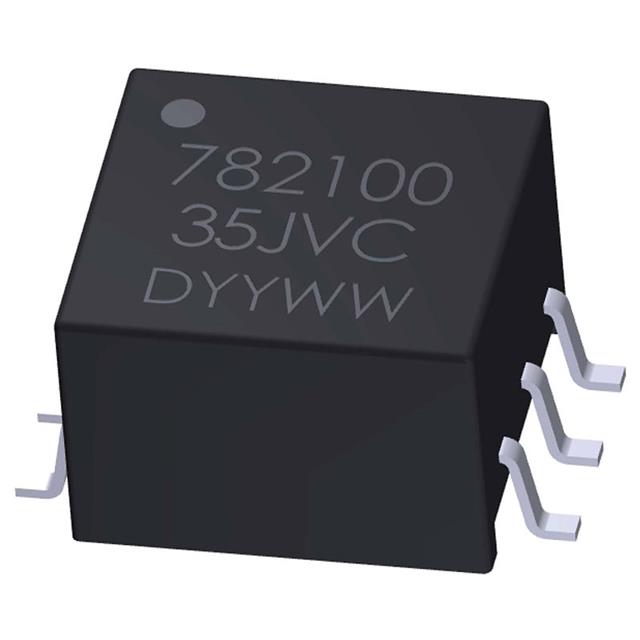

Murata Electronics 782100/35JVC	203 µH		9 mm		12.7 mm	Surface Mount	6.35 mm	0.25 in	PE22100	0.354 in 12.7 mm

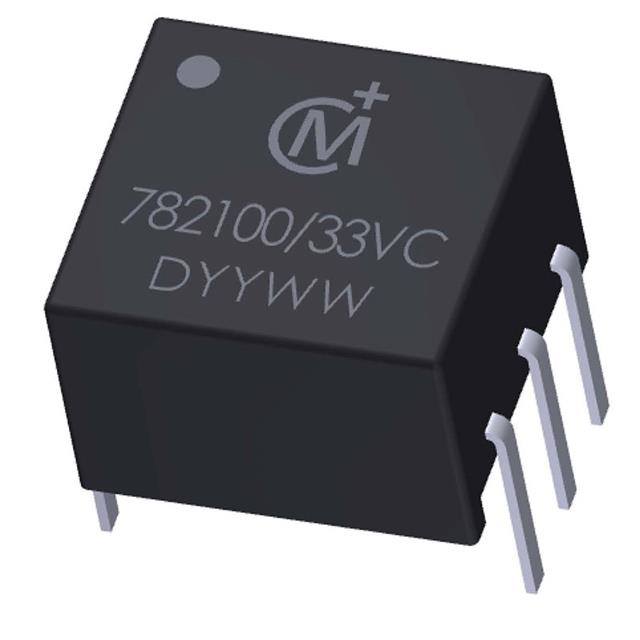

Murata Electronics 782100/33VC	310 µH	0.36 in	9.14 mm	0.385 "	9.77 mm	Through Hole	6.35 mm	0.25 in	PE22100
Murata Electronics 782100/55JVC-R		0.354 in	9 mm	0.375 in	9.52 mm	Surface Mount	6.35 mm	0.25 in
Murata Electronics 782100/35JVC-R	203 µH		9 mm		12.7 mm	Surface Mount	6.35 mm	0.25 in	PE22100	0.354 in 12.7 mm
Murata Electronics 782100/55JVC	335 µH		9 mm		12.7 mm	Surface Mount	6.35 mm	0.25 in	PE22100	0.354 in 12.7 mm
