8312 Series
Manufacturer: Belden Inc.
Beta
⌘K

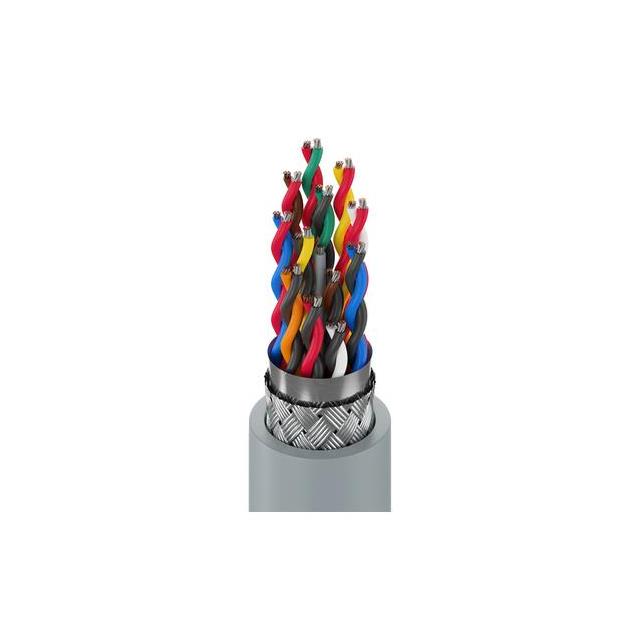

MULTI-PAIR 25COND 22AWG
| Part | Shield Material | Shield Coverage | Length | Length | Shield Type | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Jacket Color | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Conductor Material | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 152.4 m | 500 ft | Braid Foil | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Multi-Pair | 1.016 mm | 0.04 in | 22 AWG | UL Style 2464 | 80 °C | -30 ░C | 300 VDC | Chrome | Poly-Vinyl Chloride (PVC) | 11.56 mm | 0.455 in | 25 | Copper Tinned | Computer |
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 304.8 m | 1000 ft | Braid Foil | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Multi-Pair | 1.016 mm | 0.04 in | 22 AWG | UL Style 2464 | 80 °C | -30 ░C | 300 VDC | Chrome | Poly-Vinyl Chloride (PVC) | 11.56 mm | 0.455 in | 25 | Copper Tinned | Computer |
