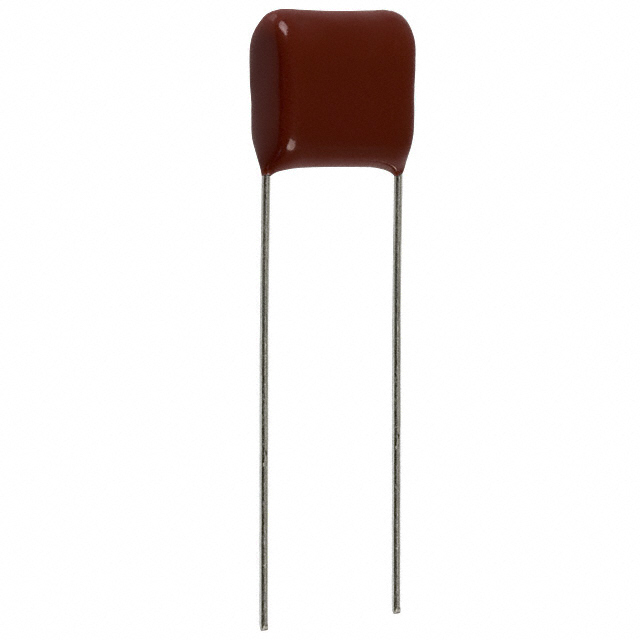

ECQ-E4683 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 0.068UF 10% 400VDC RAD

Part	Package / Case	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Tolerance	Voltage Rating - DC	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Dielectric Material	Lead Spacing	Lead Spacing	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECQ-E4683RKF	Radial	General Purpose	12 mm	5.4 mm	0.472 in	0.213 "	-40 C	105 ░C	PC Pins	10 %	400 V	0.068 µF	0.61 in	15.5 mm	Polyester Metallized	0.394 in	10 mm	Through Hole
Panasonic Electronic Components ECQ-E4683RJF	Radial	General Purpose	12 mm	5.4 mm	0.472 in	0.213 "	-40 C	105 ░C	PC Pins	5 %	400 V	0.068 µF	0.61 in	15.5 mm	Polyester Metallized	0.394 in	10 mm	Through Hole
Panasonic Electronic Components ECQ-E4683JFB	Radial	General Purpose	12 mm	5.4 mm	0.472 in	0.213 "	-40 C	105 ░C	PC Pins	5 %	400 V	0.068 µF	0.61 in	15.5 mm	Polyester Metallized	0.394 in	10 mm	Through Hole
Panasonic Electronic Components ECQ-E4683KFW	Radial	General Purpose	12 mm	5.4 mm	0.472 in	0.213 "	-40 C	105 ░C	PC Pins	10 %	400 V	0.068 µF	0.61 in	15.5 mm	Polyester Metallized	0.394 in	10 mm	Through Hole
Panasonic Electronic Components ECQ-E4683KF	Radial	General Purpose	12 mm	5.4 mm	0.472 in	0.213 "	-40 C	105 ░C	PC Pins	10 %	400 V	0.068 µF			Polyester Metallized	0.394 in	10 mm	Through Hole	11.5 mm	0.453 in
Panasonic Electronic Components ECQ-E4683JFW	Radial	General Purpose	12 mm	5.4 mm	0.472 in	0.213 "	-40 C	105 ░C	PC Pins	5 %	400 V	0.068 µF	0.61 in	15.5 mm	Polyester Metallized	0.394 in	10 mm	Through Hole
Panasonic Electronic Components ECQ-E4683JF9	Radial	General Purpose	12 mm	5.4 mm	0.472 in	0.213 "	-40 C	105 ░C	PC Pins	5 %	400 V	0.068 µF	0.61 in	15.5 mm	Polyester Metallized	0.197 "	5 mm	Through Hole
