SMRR7116C Series

Catalog

HYPER-MINIATURE DIP ROTARY SWITCHES

Part	Height Above Board	Height Above Board	Number of Positions	Washable	Actuator Type	Circuit	Actuator Level	Voltage Rating	Electrical Life	Pitch [x]	Pitch	Pitch [x]	Mechanical Life	Contact Finish	Current Rating (Amps)	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Length [x]	Length [x]

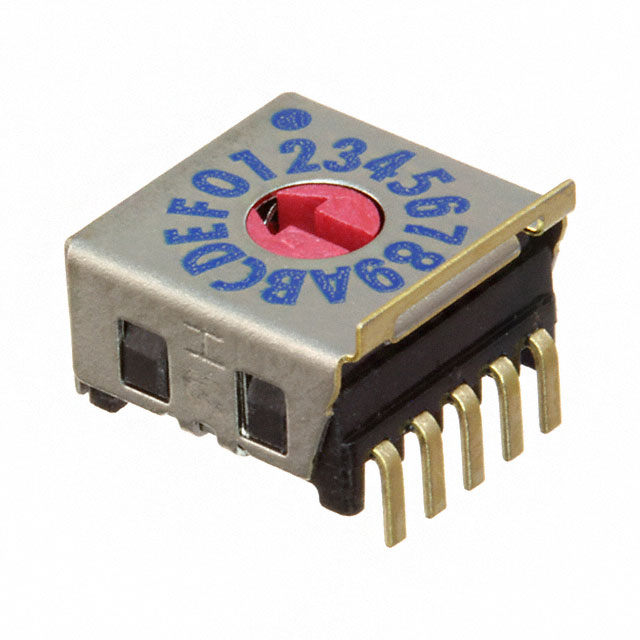

Nidec Components Corporation SMRR7116C-1	0.319 in	8.1 mm	16		Rotary for Tool	Hexadecimal Complement	Flush Recessed	15 VDC	10000 Cycles	0.1 in	Full	2.54 mm	10000 Steps	Gold	30 mA	Gull Wing	-25 °C	85 °C	Surface Mount Right Angle	7.5 mm	0.295 in
Nidec Components Corporation SMRR7116C-1E	0.319 in	8.1 mm	16		Rotary for Tool	Hexadecimal Complement	Flush Recessed	15 VDC	10000 Cycles	0.1 in	Full	2.54 mm	10000 Steps	Gold	30 mA	Gull Wing	-25 °C	85 °C	Surface Mount Right Angle	7.5 mm	0.295 in
