MS3106E24 Series

Catalog

CONN PLUG MALE 24P SILV SLDR CUP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Orientation [z]	Contact Finish - Mating	Shell Material	Voltage Rating	Color	Grade	Primary Material	Connector Type	Shell Finish	Ingress Protection	Features	Current Rating (Amps)	Fastening Type	Qualification	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Mounting Type	Orientation	Voltage Rating [custom]	Voltage Rating [custom]	Shell Size - Insert	Contact Material	Applications	Insert Material	Backshell Material, Plating	Shielding	Cable Opening	Cable Opening	Orientation [x]
ITT Cannon, LLC MS3106E24-28PZ	-55 C	125 °C	24	Z	Silver	Aluminum Alloy	200 VAC 250 V	Olive Drab	Military	Metal	Plug Male Pins	Olive Drab Cadmium	Environment Resistant	Cable Clamp Coupling Nut	22 A	Threaded	MIL-DTL-5015	24	28	Free Hanging (In-Line)
ITT Cannon, LLC MS3106E24-28SWF187	-55 C	125 °C	24		Silver	Aluminum Alloy	200 VAC 250 V	Olive Drab	Military	Metal	Plug Female Sockets	Olive Drab Cadmium	Environment Resistant	Cable Clamp Coupling Nut	22 A	Threaded	MIL-DTL-5015	24	28	Free Hanging (In-Line)	W
ITT Cannon, LLC MS3106E24-2S	-55 C	125 °C	7		Silver	Aluminum Alloy		Olive Drab	Military	Metal	Plug Female Sockets	Olive Drab Cadmium	Environment Resistant	Cable Clamp Coupling Nut	41 A	Threaded	MIL-DTL-5015			Free Hanging (In-Line)	N (Normal)	1250 VDC	900 VAC	24-2
ITT Cannon, LLC MS3106E24-5PF187	-55 C	125 °C	16		Silver	Aluminum Alloy	500 VAC 700 VDC	Olive Drab	Military	Metal	Plug Male Pins	Olive Drab Cadmium	Environment Resistant	Cable Clamp Coupling Nut	22 A	Threaded	MIL-DTL-5015	24	5	Free Hanging (In-Line)	N (Normal)
ITT Cannon, LLC MS3106E24-11PWF187	-55 C	125 °C	9		Silver	Aluminum Alloy	500 VAC 700 VDC	Olive Drab	Military	Metal	Plug Male Pins	Olive Drab Cadmium	Environment Resistant	Cable Clamp Coupling Nut		Threaded	MIL-DTL-5015			Free Hanging (In-Line)	W			24-11
ITT Cannon, LLC MS3106E24-11P	-55 C	125 °C	9		Silver	Aluminum Alloy	500 VAC 700 VDC	Olive Drab	Military	Metal	Plug Male Pins	Olive Drab Cadmium	Environment Resistant	Cable Clamp Coupling Nut		Threaded	MIL-DTL-5015			Free Hanging (In-Line)	N (Normal)			24-11

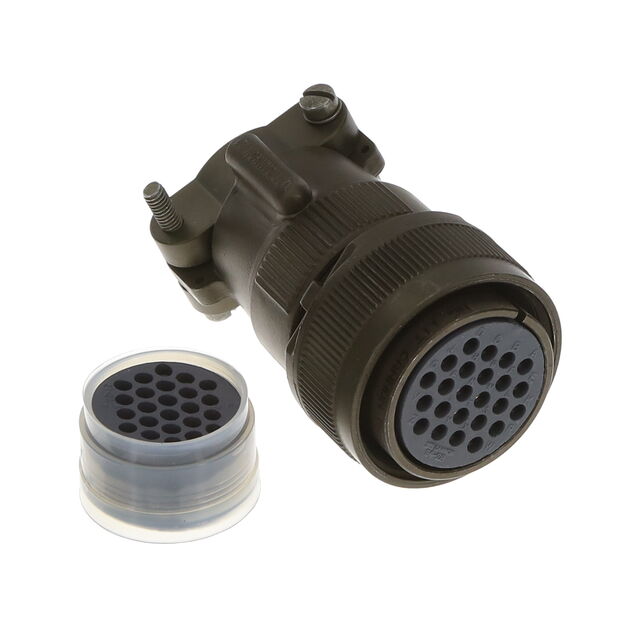

ITT Cannon, LLC MS3106E24-28S	-55 C	125 °C	24		Silver	Aluminum Alloy	200 VAC 250 V	Olive Drab	Military	Metal	Plug Female Sockets	Olive Drab Cadmium Olive Drab Chromate over Cadmium	Environment Resistant	Backshell Cable Clamp Coupling Nut	22 A	Threaded	MIL-5015 MIL-DTL-5015	24	28	Free Hanging (In-Line)	N (Normal)				Copper Alloy	Marine Military	Neoprene	Aluminum Alloy Olive Drab Chromate over Cadmium	Unshielded	0.781 in	19.84 mm
ITT Cannon, LLC MS3106E24-28PXF187	-55 C	125 °C	24		Silver	Aluminum Alloy	200 VAC 250 V	Olive Drab	Military	Metal	Plug Male Pins	Olive Drab Cadmium	Environment Resistant	Cable Clamp Coupling Nut	22 A	Threaded	MIL-DTL-5015	24	28	Free Hanging (In-Line)												X
ITT Cannon, LLC MS3106E24-5PW	-55 C	125 °C	16		Silver	Aluminum Alloy	500 VAC 700 VDC	Olive Drab	Military	Metal	Plug Male Pins	Olive Drab Cadmium	Environment Resistant	Cable Clamp Coupling Nut	22 A	Threaded	MIL-DTL-5015	24	5	Free Hanging (In-Line)	W
