LHS-02 Series
Manufacturer: Adam Tech
Beta
⌘K

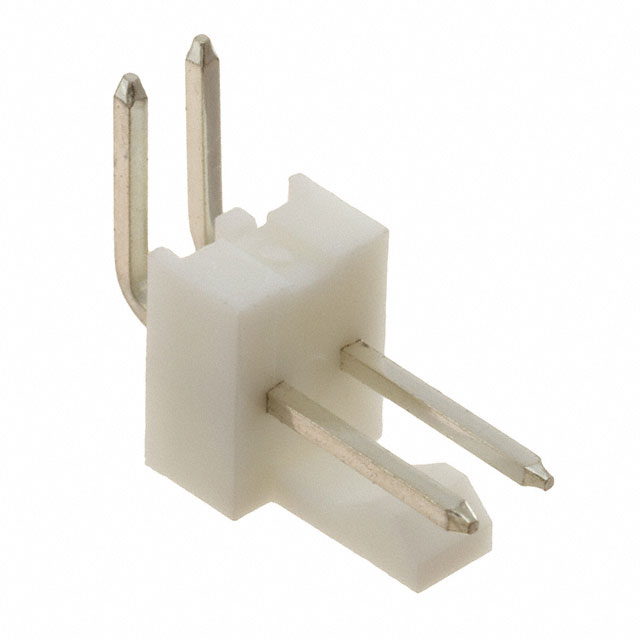

CONN HEADER R/A 2POS 2.54MM
| Part | Insulation Color | Mounting Type | Contact Length - Mating | Contact Length - Mating | Material Flammability Rating | Number of Rows | Insulation Material | Shrouding | Connector Type | Current Rating (Amps) | Contact Finish - Post | Termination | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Voltage Rating | Number of Positions Loaded | Number of Positions | Contact Material | Contact Type | Contact Length - Post | Contact Length - Post | Insulation Height [z] | Insulation Height [z] | Style | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | White | Right Angle Through Hole | 6.7 mm | 0.264 in | UL94 V-0 | 1 | Nylon 6/6 Polyamide (PA66) | Shrouded - 1 Wall | Header | 3 A | Tin | Solder | Square | 85 °C | -25 °C | Friction Lock | 250 VAC | All | 2 | Brass | Male Pin | 0.13 " | 3.3 mm | 0.252 " | 6.4 mm | Board to Cable/Wire | 0.1 " | 2.54 mm |
