PTC27 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 27POS 2.54MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Connector Type	Number of Positions	Contact Type	Current Rating (Amps)	Number of Positions Loaded	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Material	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Shape	Termination	Shrouding	Material Flammability Rating	Insulation Color	Insulation Height	Insulation Height	Fastening Type	Number of Rows	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Contact Length - Post [custom]	Contact Length - Post [custom]	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Overall Contact Length [x]	Overall Contact Length [x]
Sullins Connector Solutions PTC27SAGN	100 çin	2.54 çm	0.1 "	2.54 mm	Header	27	Male Pin	3 A	All	Polyester Thermoplastic	0.72 "	18.29 mm	Copper Alloy	0.23 in	5.84 mm	Through Hole	Square	Solder	Unshrouded	UL94 V-0	Black	0.1 in	2.54 mm	Push-Pull	1	Board to Board Cable	2.54 µm	100 µin	26.67 mm	1.05 in	Tin
Sullins Connector Solutions PTC27DAFN	100 çin	2.54 çm	0.1 "	2.54 mm	Header	54	Male Pin	3 A	All	Polyester Thermoplastic			Copper Alloy	0.23 in	5.84 mm	Through Hole	Square	Solder	Unshrouded	UL94 V-0	Black	0.1 in	2.54 mm	Push-Pull		Board to Board Cable	2.54 µm	100 µin	24.13 mm	0.95 in	Tin	15.75 mm	0.62 "	2	0.1 in	2.54 mm
Sullins Connector Solutions PTC27DACN	100 çin	2.54 çm	0.1 "	2.54 mm	Header	54	Male Pin	3 A	All	Polyester Thermoplastic	0.32 in	8.13 mm	Copper Alloy	0.23 in	5.84 mm	Through Hole	Square	Solder	Unshrouded	UL94 V-0	Black	0.1 in	2.54 mm	Push-Pull		Board to Board Cable	2.54 µm	100 µin	16.51 mm	0.65 in	Tin			2	0.1 in	2.54 mm
Sullins Connector Solutions PTC27DBCN	100 çin	2.54 çm	0.1 "	2.54 mm	Header	54	Male Pin	3 A	All	Polyester Thermoplastic	0.32 in	8.13 mm	Copper Alloy	0.23 in	5.84 mm	Right Angle Through Hole	Square	Solder	Unshrouded	UL94 V-0	Black			Push-Pull		Board to Board Cable	2.54 µm	100 µin			Tin			2	0.1 in	2.54 mm	6.1 mm	0.24 in
Sullins Connector Solutions PTC27SFAN	100 çin	2.54 çm	0.1 "	2.54 mm	Header	27	Male Pin	3 A	All	Polyester Thermoplastic	0.12 in	3.05 mm	Copper Alloy	0.318 in	8.08 mm	Through Hole	Square	Solder	Unshrouded	UL94 V-0	Black	0.1 in	2.54 mm	Push-Pull	1	Board to Board Cable	2.54 µm	100 µin			Tin								13.67 mm	0.538 in

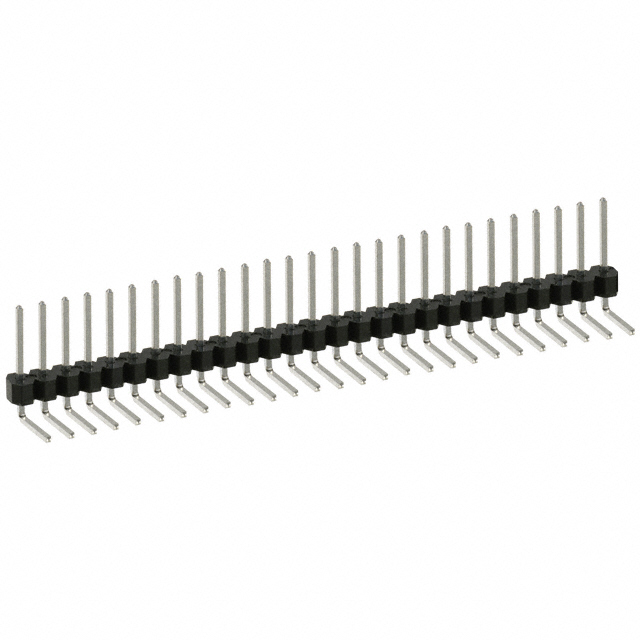

Sullins Connector Solutions PTC27SGBN	100 çin	2.54 çm	0.1 "	2.54 mm	Header	27	Male Pin	3 A	All	Polyester Thermoplastic	0.22 in	5.58 mm	Copper Alloy	0.318 in	8.08 mm	Right Angle Through Hole	Square	Solder	Unshrouded	UL94 V-0	Black	0.14 in	3.56 mm	Push-Pull	1	Board to Board Cable	2.54 µm	100 µin			Tin
Sullins Connector Solutions PTC27DABN	100 çin	2.54 çm	0.1 "	2.54 mm	Header	54	Male Pin	3 A	All	Polyester Thermoplastic	0.23 "	5.84 mm	Copper Alloy	0.23 in	5.84 mm	Through Hole	Square	Solder	Unshrouded	UL94 V-0	Black	0.1 in	2.54 mm	Push-Pull		Board to Board Cable	2.54 µm	100 µin	14.22 mm	0.56 in	Tin			2	0.1 in	2.54 mm
Sullins Connector Solutions PTC27SFBN	100 çin	2.54 çm	0.1 "	2.54 mm	Header	27	Male Pin	3 A	All	Polyester Thermoplastic	0.22 in	5.58 mm	Copper Alloy	0.318 in	8.08 mm	Through Hole	Square	Solder	Unshrouded	UL94 V-0	Black	0.1 in	2.54 mm	Push-Pull	1	Board to Board Cable	2.54 µm	100 µin	16.21 mm	0.638 in	Tin
Sullins Connector Solutions PTC27DAAN	100 çin	2.54 çm	0.1 "	2.54 mm	Header	54	Male Pin	3 A	All	Polyester Thermoplastic	0.12 in	3.05 mm	Copper Alloy	0.23 in	5.84 mm	Through Hole	Square	Solder	Unshrouded	UL94 V-0	Black	0.1 in	2.54 mm	Push-Pull		Board to Board Cable	2.54 µm	100 µin			Tin			2	0.1 in	2.54 mm			11.43 mm	0.45 in
Sullins Connector Solutions PTC27SBDN	100 çin	2.54 çm	0.1 "	2.54 mm	Header	27	Male Pin	3 A	All	Polyester Thermoplastic	0.42 in	10.67 mm	Copper Alloy	0.23 in	5.84 mm	Right Angle Through Hole	Square	Solder	Unshrouded	UL94 V-0	Black	0.14 in	3.56 mm	Push-Pull	1	Board to Board Cable	2.54 µm	100 µin			Tin
