5707 Series

Catalog

CONNECTOR: AC SUPPLY; SOCKET; MALE; 4A; 250VAC; C14 (E); 5707

Part	Voltage Rating - Appliance Inlet	Features	Termination	Termination	Termination	Ingress Protection	Filter Type	Connector Type	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Style	Current Rating - Appliance Inlet	Number of Positions	Current Rating - Filter	Fuse Holder, Drawer	Mounting Type	Material Flammability Rating	Panel Thickness	Panel Thickness
SCHURTER Inc. 5707.0403.313.21	250 VAC	Rear Side Mount Shielded V-Lock Notch	6.3 mm	Quick Connect	0.25 "	IP65	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades	CCC cULus ENEC	33.5 mm	30.5 mm	IEC 320-C18	4 A	2	4 A	Twin Fused	Flange Panel Mount	UL94 V-0	0.118 "	3 mm

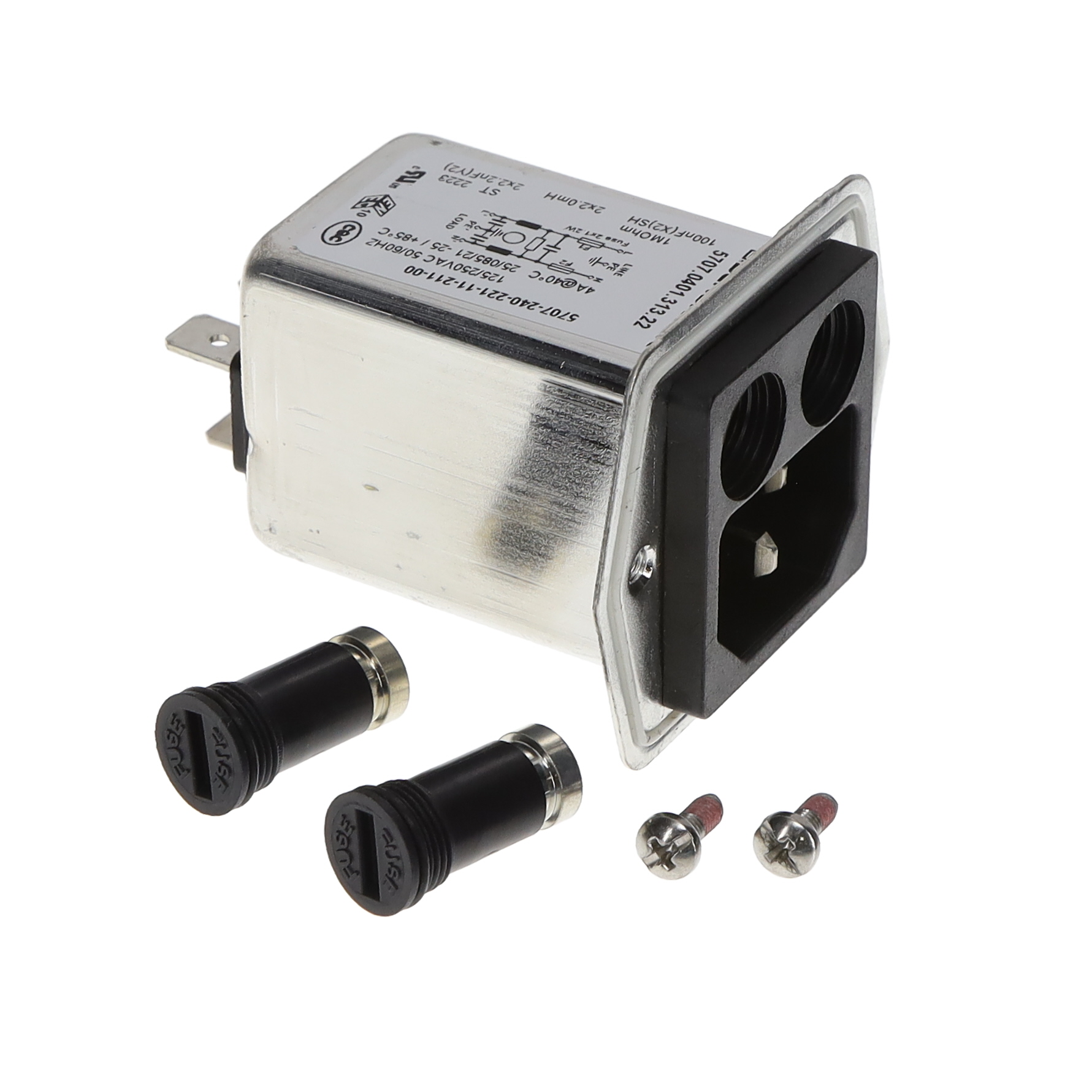

SCHURTER Inc. 5707.0401.313.22	250 VAC	Shielded	6.3 mm	Quick Connect	0.25 "	IP54	Unfiltered - Commercial	Receptacle Male Blades	cURus ENEC	30.5 mm	33.5 mm	IEC 320-C14	8 A			Fuse Holder	Flange Panel Mount	UL94 V-0	0.118 "	3 mm
SCHURTER Inc. 5707.0603.312.03	250 VAC	Shielded	6.3 mm	Quick Connect	0.25 "	IP65 - Dust Tight Water Resistant	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades	cURus ENEC	32.2 mm	29.2 mm	IEC 320-C18	6 A	2	6 A	Twin Fused	Flange Panel Mount	UL94 V-0	0.118 "	3 mm
SCHURTER Inc. 5707.0201.312.01

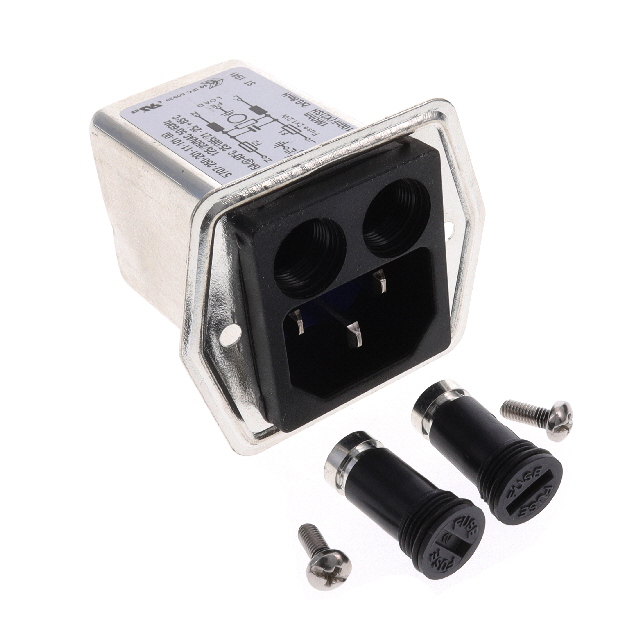

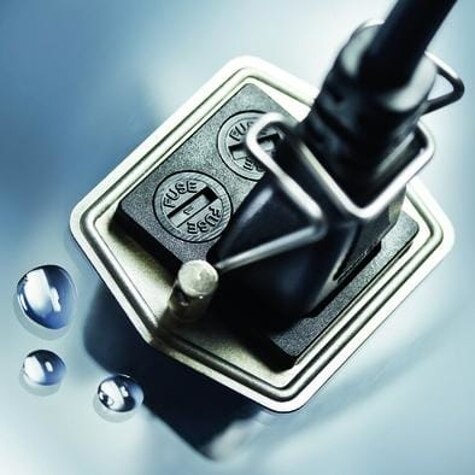

SCHURTER Inc. 5707.0603.312.01	250 VAC	Shielded	6.3 mm	Quick Connect	0.25 "	IP65 - Dust Tight Water Resistant	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades	cURus ENEC	32.2 mm	29.2 mm	IEC 320-C18	6 A	2	6 A	Twin Fused	Flange Panel Mount	UL94 V-0	0.118 "	3 mm
SCHURTER Inc. 5707.0101.312	250 VAC	Shielded	6.3 mm	Quick Connect	0.25 "	IP65 - Dust Tight Water Resistant	Filtered (EMI RFI) - Commercial	Receptacle Male Blades	cULus ENEC	32.2 mm	36 mm	IEC 320-C14	1 A		1 A	Fuse Holder	Flange Panel Mount	UL94 V-0
SCHURTER Inc. 5707.0103.312	250 VAC	Shielded	6.3 mm	Quick Connect	0.25 "	IP65 - Dust Tight Water Resistant	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades	cULus ENEC	32.2 mm	36 mm	IEC 320-C14	1 A		1 A	Fuse Holder	Flange Panel Mount	UL94 V-0
SCHURTER Inc. 5707.0803.313.21	250 VAC	Rear Side Mount Shielded V-Lock Notch	6.3 mm	Quick Connect	0.25 "	IP65	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades	CCC cULus ENEC	33.5 mm	30.5 mm	IEC 320-C18	8 A	2	8 A	Twin Fused	Flange Panel Mount	UL94 V-0	0.118 "	3 mm
SCHURTER Inc. 5707.0205.312.01	250 VAC	Front Side Mount	6.3 mm	Quick Connect	0.25 "	IP65	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades	CCC cULus ENEC	32.2 mm	29.2 mm	IEC 320-C18	2 A	2	2 A	Twin Fused	Flange Panel Mount	UL94 V-0	0.118 "	3 mm
SCHURTER Inc. 5707.0803.312	250 VAC	Shielded	6.3 mm	Quick Connect	0.25 "	IP65 - Dust Tight Water Resistant	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades	cULus ENEC	32.2 mm	36 mm	IEC 320-C14	8 A		8 A	Fuse Holder	Flange Panel Mount	UL94 V-0
