EV8 Series

Catalog

TERMINALS INSULATED VINYL RING TERMINAL FOR WIRE R

Part	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges	Width - Outer Edges	Wire Gauge	Stud/Tab Size	Termination	Contact Material	Terminal Type	Insulation	Color	Contact Finish	Thickness	Thickness	Features	Mounting Type	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Material - Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Width - Outer Edges [x]	Width - Outer Edges [x]
Panduit Corp EV8-12R-Q	1.64 in	41.66 mm	20.07 mm	0.79 in	8 AWG	0.5 Stud	Crimp	Copper	Circular	Insulated	Red	Tin	1.19 mm	0.047 "	Brazed Seam	Free Hanging (In-Line)

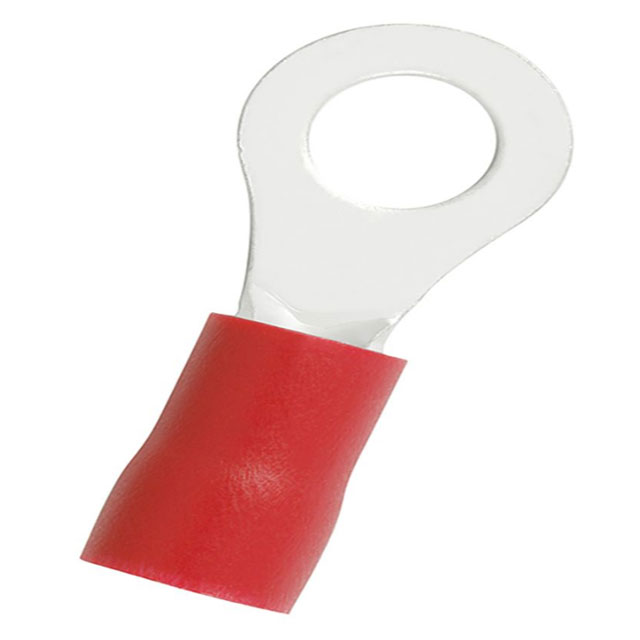

Panduit Corp EV8-56R-Q	1.5 "	38.1 mm			8 AWG	0.3125 Stud	Crimp	Copper	Circular	Insulated	Red	Tin	1.19 mm	0.047 "	Brazed Seam	Free Hanging (In-Line)	0.318 "	8.08 mm	Vinyl	14.99 mm	0.59 in

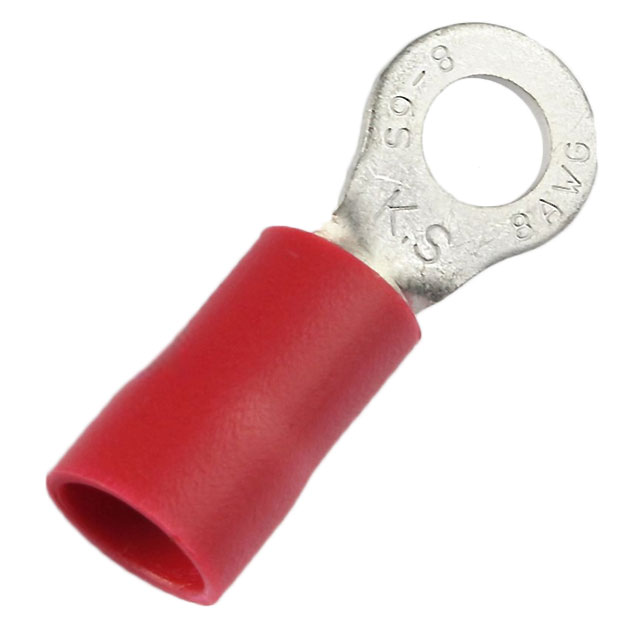

Panduit Corp EV8-14R-Q	1.26 "	32 mm			8 AWG	0.25 Stud	Crimp	Copper	Circular	Insulated	Red	Tin	1.19 mm	0.047 "	Brazed Seam	Free Hanging (In-Line)	0.318 "	8.08 mm	Vinyl			0.47 in	11.94 mm

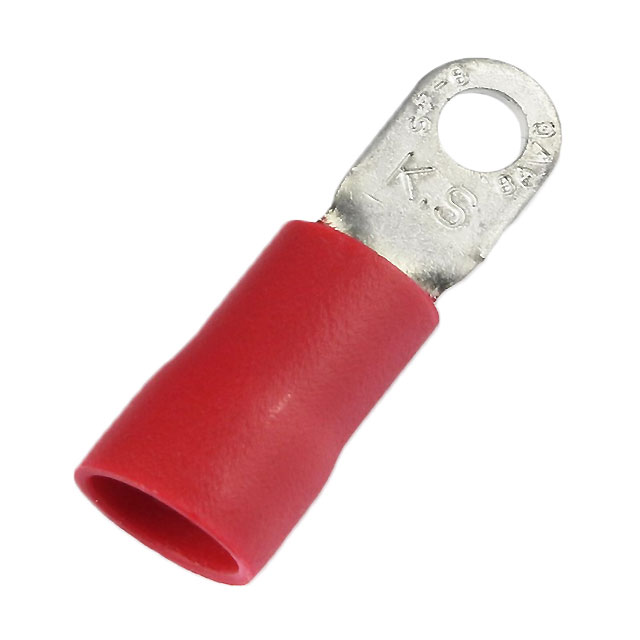

Panduit Corp EV8-8R-Q	1.18 in	29.97 mm	7.87 mm	0.31 in	8 AWG	8 Stud	Crimp	Copper	Circular	Insulated	Red	Tin	1.19 mm	0.047 "	Brazed Seam	Free Hanging (In-Line)	0.318 "	8.08 mm	Vinyl
