09KR121 Series
Manufacturer: Rosenberger
Beta
⌘K

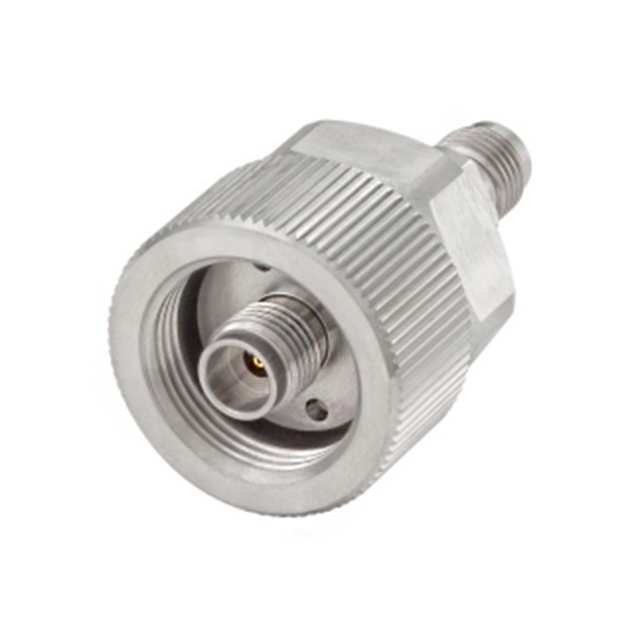

PRECISION 2.40 TESTPORT ADAPTER
| Part | Mating Cycles | Center Contact Material | Insertion Loss | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Dielectric Material | Adapter Series | Convert From (Adapter End) | Convert From (Adapter End) | Style | Frequency - Max [Max] | Conversion Type | Convert To (Adapter End) [custom] | Center Contact Plating | Adapter Type | Mounting Type | Impedance | Center Gender | Convert To (Adapter End) | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 | Beryllium Copper | 0.35 dB | 85 °C | -40 C | Stainless Steel | Polyetheretherketone (PEEK) | RPC-2.40 to RPC-2.40 | APC-2.4 Female Socket Jack OS-50 | 2.4 mm | Straight | 50 GHz | Same Series | 2.4 mm | Gold | Plug to Jack | Free Hanging (In-Line) | 50 Ohms | |||
 Rosenberger | 500 | Beryllium Copper | 0.35 dB | 85 °C | -40 C | Stainless Steel | Polyetheretherketone (PEEK) | RPC-2.40 to RPC-2.40 | APC-2.4 Female Socket Jack OS-50 | 2.4 mm | Straight | 50 GHz | Same Series | Gold | Jack to Jack | Free Hanging (In-Line) | 50 Ohms | Female to Female | 2.4 mm | (APC-2.4 OS-50) Jack Female Socket |
