RFD-4 Series
Manufacturer: RF Industries
Beta
⌘K
4.3/10 FEMALE-N MALE
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Dielectric Material | Center Contact Material | Convert From (Adapter End) | Conversion Type | Style | Impedance | Adapter Type | Convert To (Adapter End) | Mounting Type | Frequency - Max [Max] | Adapter Series | Center Contact Plating | Adapter Series [Max] | Adapter Series [Min] | Center Gender | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

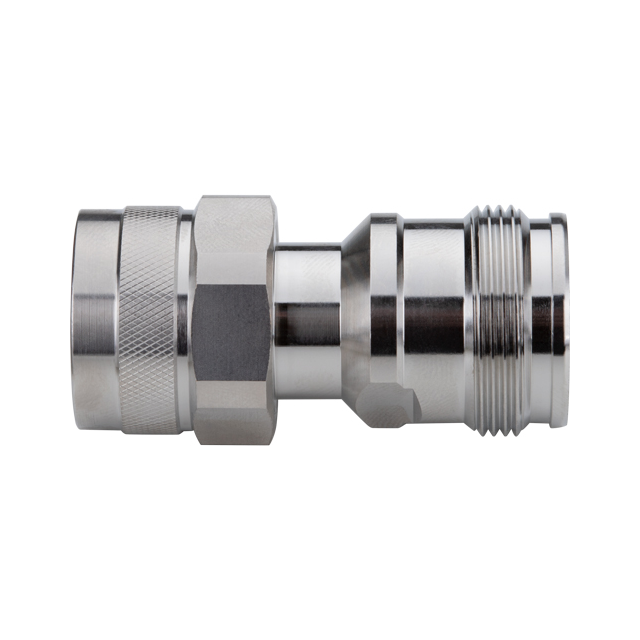

 RF Industries | White Bronze | -40 C | 155 C | Brass | Polytetrafluoroethylene (PTFE) | Phosphor Bronze | N Plug Male Pin | Between Series | Straight | 50 Ohms | Plug to Jack | 4.3/10 Jack Female Socket | Free Hanging (In-Line) | 6000 MHz | N to 4.3/10 | Silver | ||||

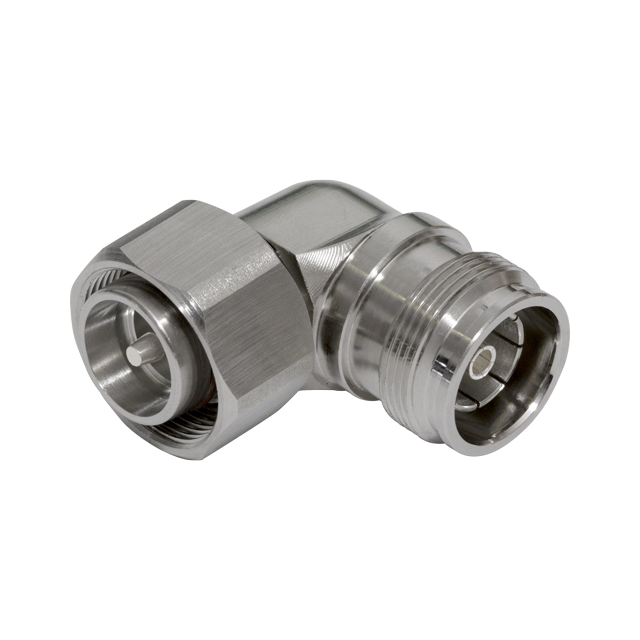

 RF Industries | White Bronze | -40 C | 155 C | Brass | Polytetrafluoroethylene (PTFE) | Beryllium Copper | 4.3/10 Plug Male Pin | Same Series | Right Angle | 50 Ohms | Plug to Jack | 4.3/10 Jack Female Socket | Free Hanging (In-Line) Right Angle | 6000 MHz | Silver | 4.3/10 | 4.3/10 | |||

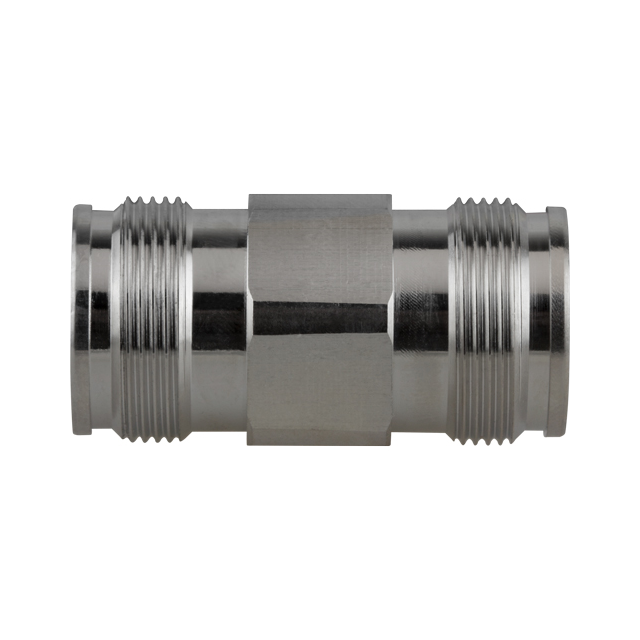

 RF Industries | White Bronze | -40 C | 155 C | Brass | Polytetrafluoroethylene (PTFE) | Beryllium Copper | 4.3/10 Jack Female Socket | Same Series | Straight | 50 Ohms | Jack to Jack | 4.3/10 Jack Female Socket | Free Hanging (In-Line) | 6000 MHz | Silver | 4.3/10 | 4.3/10 | Female to Female | ||

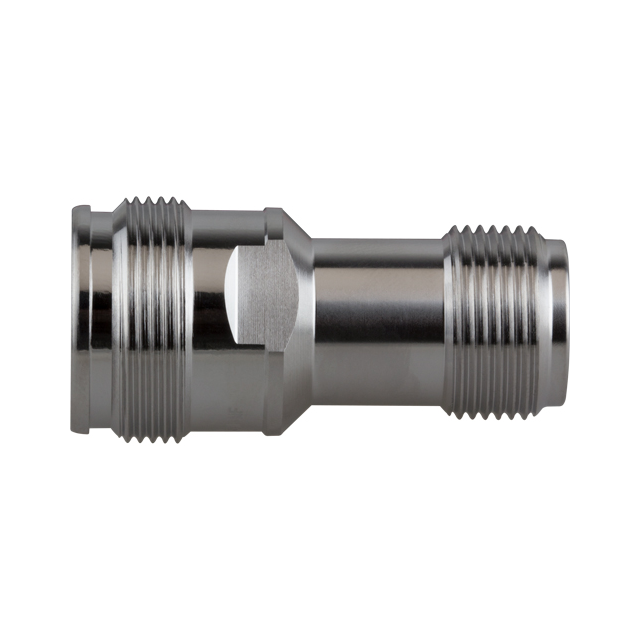

 RF Industries | White Bronze | -40 C | 155 C | Brass | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Female Socket N Jack | Between Series | Straight | 50 Ohms | Jack to Jack | 4.3/10 Jack Female Socket | Free Hanging (In-Line) | 6000 MHz | N to 4.3/10 | Silver | Female to Female | |||

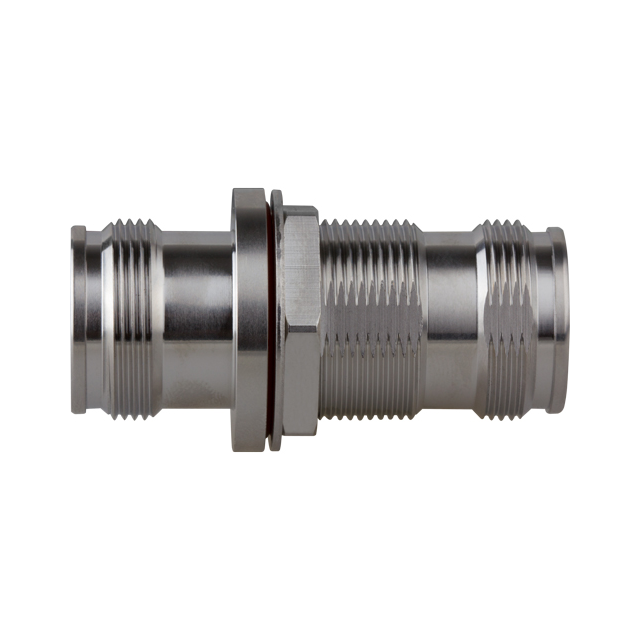

 RF Industries | White Bronze | -40 C | 155 C | Brass | Polytetrafluoroethylene (PTFE) | Beryllium Copper | 4.3/10 Jack Female Socket | Same Series | Straight | 50 Ohms | Jack to Jack | 4.3/10 Jack Female Socket | Panel Mount | 6000 MHz | Silver | 4.3/10 | 4.3/10 | Female to Female | Bulkhead | |

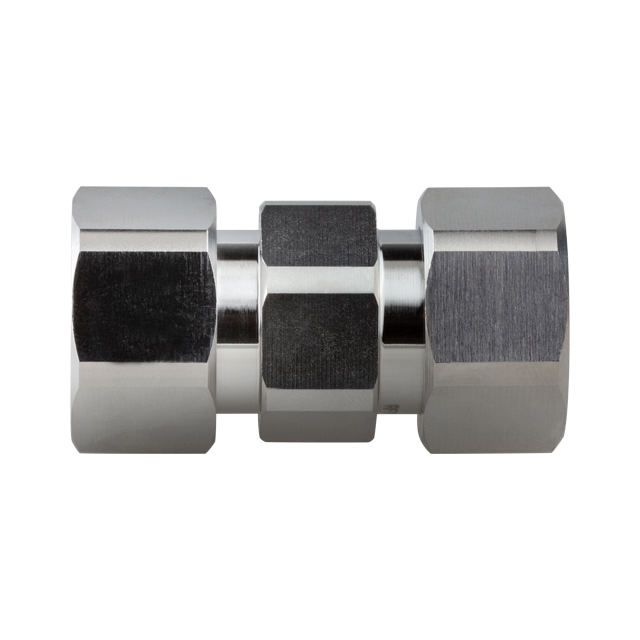

 RF Industries | White Bronze | -40 C | 155 C | Brass | Polytetrafluoroethylene (PTFE) | Brass | 4.3/10 Plug Male Pin | Same Series | Straight | 50 Ohms | Plug to Plug | 4.3/10 Plug Male Pin | Free Hanging (In-Line) | 6000 MHz | Silver | 4.3/10 | 4.3/10 | Male to Male |
