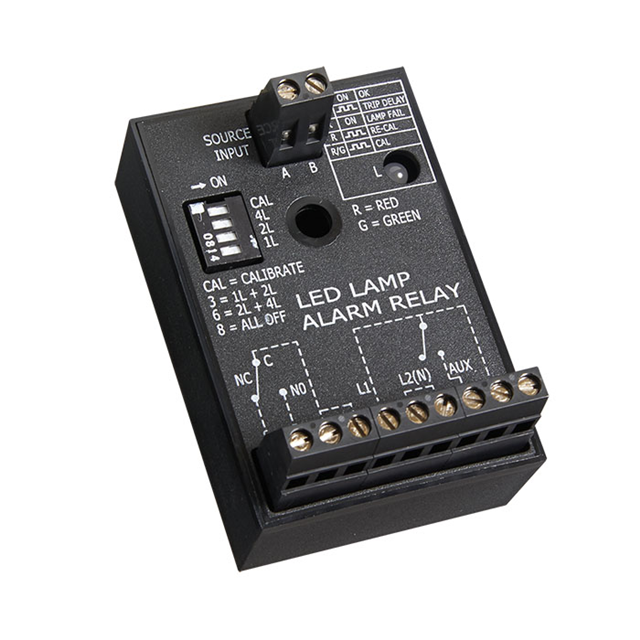

SCR9L Series

Catalog

RELAY TIME DELAY LED LAMP ALARM

Part	Trip Range [Max]	Trip Range [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating @ Voltage	Type	Trip Status	Mounting Type	Delay Time	Delay Time
Littelfuse/Commercial Vehicle Products SCR9L	8 A	0.15 A	120 VAC/DC	230 VAC	-40 °C	60 °C	10 A 30 VDC 240 VAC	Current Sensing AC	Energized High/Low	Chassis Mount	Fixed	10 Sec

• Self calibrating

• Failsafe beacon monitoring

• Number of lamps monitored is switch selectable up to 8

• Universal voltage 120 to 230VAC

• Isolated, 10A, SPDT alarm output contacts

• LED indication

• Fully encapsulated
