2048 Series

Manufacturer: Oupiin

Catalog

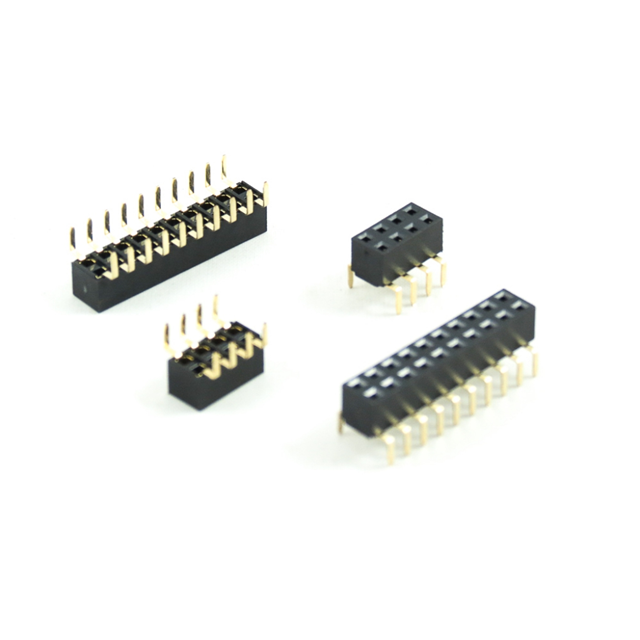

PCB SOCKET, DOUBLE ROW, 14 PIN,

Part	Contact Material	Contact Shape	Contact Finish Thickness - Post	Insulation Material	Contact Type	Fastening Type	Contact Finish - Post	Mounting Type	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Number of Positions	Termination	Connector Type	Current Rating (Amps)	Number of Rows
Oupiin 2048-2X07G00EU	Copper Alloy	Square	Flash	Glass Filled Polyester Thermoplastic	Female Socket	Push-Pull	Gold	Through Hole	0.197 "	5 mm	0.126 "	3.2 mm	All	0.1 "	2.54 mm	UL94 V-0	2	-55 C	105 ░C	Flash	0.1 in	2.54 mm	Gold	14	Solder	Socket	2 A
Oupiin 2048-2X13G00DU					Female Socket	Push-Pull	Gold	Through Hole	0.197 "	5 mm	0.126 "	3.2 mm	All	0.1 "	2.54 mm	UL94 V-0	2	-55 C	105 ░C	Flash	0.1 in	2.54 mm	Gold	26	Solder	Socket	2 A
Oupiin 2048-2X10G00EU	Copper Alloy	Square	Flash	Glass Filled Polyester Thermoplastic	Female Socket	Push-Pull	Gold	Through Hole	0.197 "	5 mm	0.126 "	3.2 mm	All	0.1 "	2.54 mm	UL94 V-0	2	-55 C	105 ░C	Flash	0.1 in	2.54 mm	Gold	20	Solder	Socket	2 A
Oupiin 2048-2X03G00EU	Copper Alloy	Square	Flash	Glass Filled Polyester Thermoplastic	Female Socket	Push-Pull	Gold	Through Hole	0.197 "	5 mm	0.126 "	3.2 mm	All	0.1 "	2.54 mm	UL94 V-0	2	-55 C	105 ░C	Flash	0.1 in	2.54 mm	Gold	6	Solder	Socket	2 A

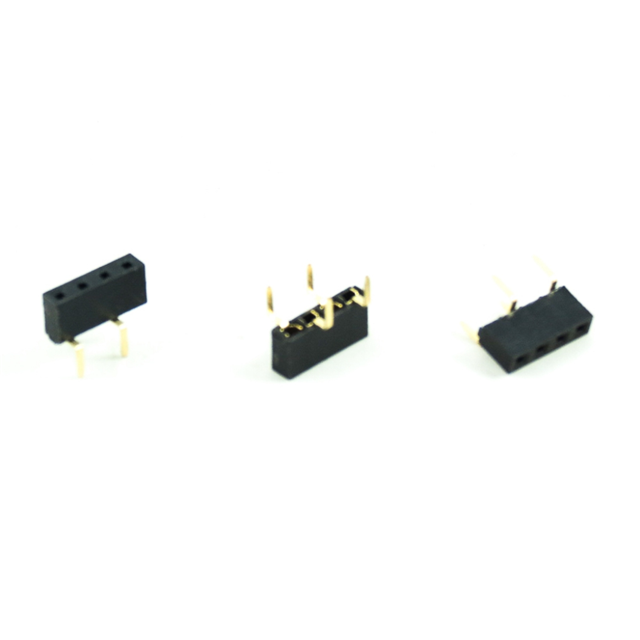

Oupiin 2048-1X03G00BU	Copper Alloy	Square	Flash	Glass Filled Polyester Thermoplastic	Female Socket	Push-Pull	Gold	Through Hole	0.197 "	5 mm	0.126 "	3.2 mm	All	0.1 "	2.54 mm	UL94 V-0		-55 C	105 ░C	Flash			Gold		Solder	Socket	2 A	1
