HD20 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACT SPDT 0.003A 12V
| Part | Voltage Rating - DC | Differential Travel | Differential Travel | Operating Force | Release Force | Pretravel | Pretravel | Current Rating (Amps) | Actuator Type | Electrical Life | Operating Position | Operating Position | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Termination Style | Ingress Protection | Mechanical Life | Circuit | Switch Function | Overtravel | Overtravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

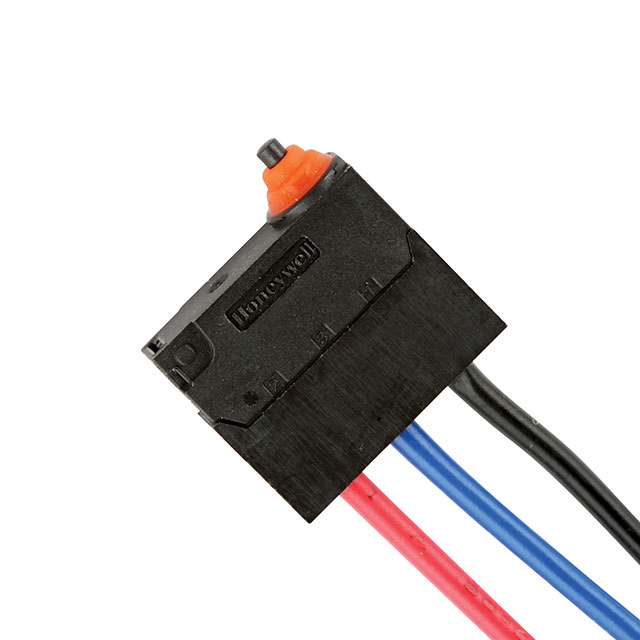

 Honeywell Sensing and Productivity Solutions | 12 V | 0.012 " | 0.3 mm | 130 gf | 13 gf | 0.03 in | 0.8 mm | 3 mA | Round (Pin Plunger) | 10000 Cycles | 3.1 mm | 0.122 in | 85 °C | -20 C | Chassis Mount | Wire Leads | IP67 - Dust Tight Waterproof | 500000 Cycles | SPDT | On-Mom | 0.79 mm | 0.031 in |
Honeywell Sensing and Productivity Solutions | 12 V | 0.025 in | 0.6 mm | 200 gf | 25 gf | 0.138 in | 3.5 mm | 3 mA | Lever Simulated Roller | 10000 Cycles | 6.8 mm | 0.268 " | 125 °C | -40 °C | Chassis Mount | Solder Lug | IP00 | 500000 Cycles | SPDT | On-Mom | 1.8 mm | 0.07 in |
