322374 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

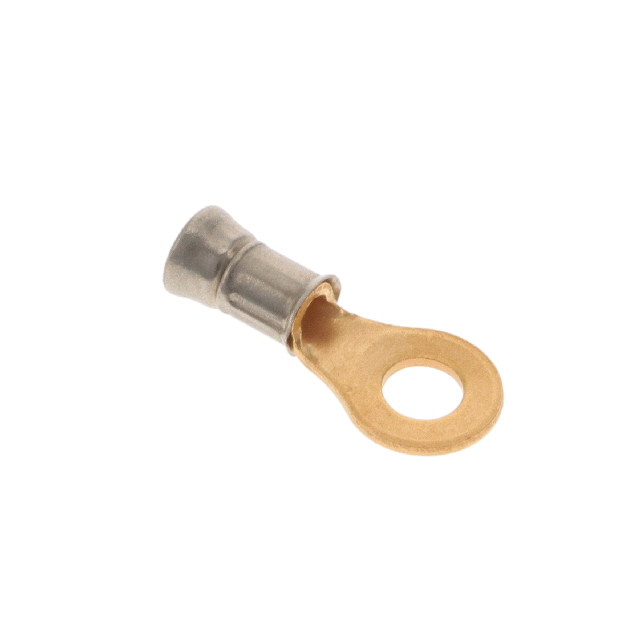

CONN RING CIRC 14-16AWG #8 CRIMP
| Part | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Terminal Type | Insulation | Length - Overall [x] | Length - Overall [x] | Features | Width - Outer Edges [x] | Width - Outer Edges [x] | Thickness | Thickness | Termination | Stud/Tab Size | Mounting Type | Contact Finish | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.12 in | 0.17 in | 4.32 mm | 3.05 mm | Circular | Non-Insulated | 20.6 mm | 0.811 in | Serrated Termination | 0.343 in | 8.71 mm | 0.031 in | 0.79 mm | Crimp | 8 Stud | Free Hanging (In-Line) | Gold | Copper |
