0367-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RECEPT PIN .045-.065" .040"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Termination	Tail Diameter [diameter]	Tail Diameter	Tail Diameter [diameter]	Socket Depth	Socket Depth	Contact Finish	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Material
Mill-Max Manufacturing Corp. 0367-0-15-01-23-14-10-0	-55 C	125 °C	Standard Tail	0.125 in	3.18 mm	1.02 mm	0.04 in	0.285 in	7.24 mm	0.045 "	1.65 mm	0.065 "	1.14 mm	Press-Fit	0.81 mm	Square	0.032 in	0.14 in	3.56 mm	Gold	2.24 mm	0.088 "	0.25 Ám	10 Áin	Beryllium Copper
Mill-Max Manufacturing Corp. 0367-0-15-80-23-14-10-0	-55 C	125 °C	Standard Tail	0.125 in	3.18 mm	1.02 mm	0.04 in	0.285 in	7.24 mm	0.045 "	1.65 mm	0.065 "	1.14 mm	Press-Fit	0.81 mm	Square	0.032 in	0.14 in	3.56 mm	Gold	2.24 mm	0.088 "	0.25 Ám	10 Áin	Beryllium Copper

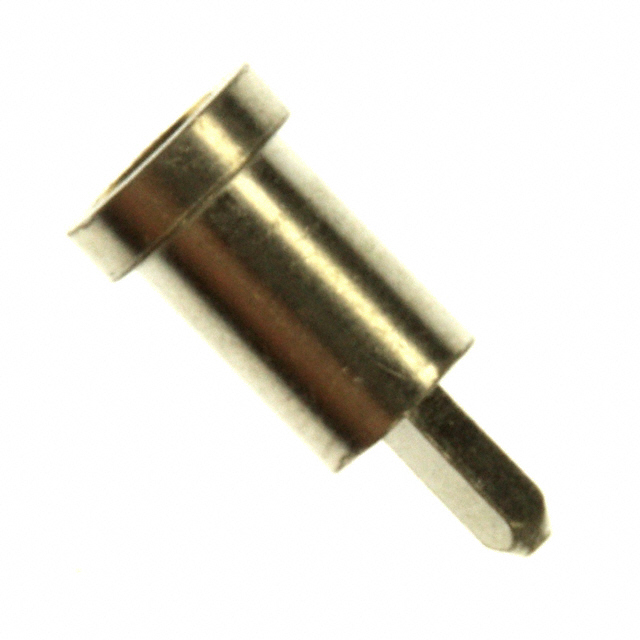

Mill-Max Manufacturing Corp. 0367-0-15-01-23-27-10-0	-55 C	125 °C	Standard Tail	0.125 in	3.18 mm	1.02 mm	0.04 in	0.285 in	7.24 mm	0.045 "	1.65 mm	0.065 "	1.14 mm	Press-Fit	0.81 mm	Square	0.032 in	0.14 in	3.56 mm	Gold	2.24 mm	0.088 "	0.76 Ám	30 Áin	Beryllium Copper
Mill-Max Manufacturing Corp. 0367-0-15-80-23-27-10-0	-55 C	125 °C	Standard Tail	0.125 in	3.18 mm	1.02 mm	0.04 in	0.285 in	7.24 mm	0.045 "	1.65 mm	0.065 "	1.14 mm	Press-Fit	0.81 mm	Square	0.032 in	0.14 in	3.56 mm	Gold	2.24 mm	0.088 "	0.76 Ám	30 Áin	Beryllium Copper

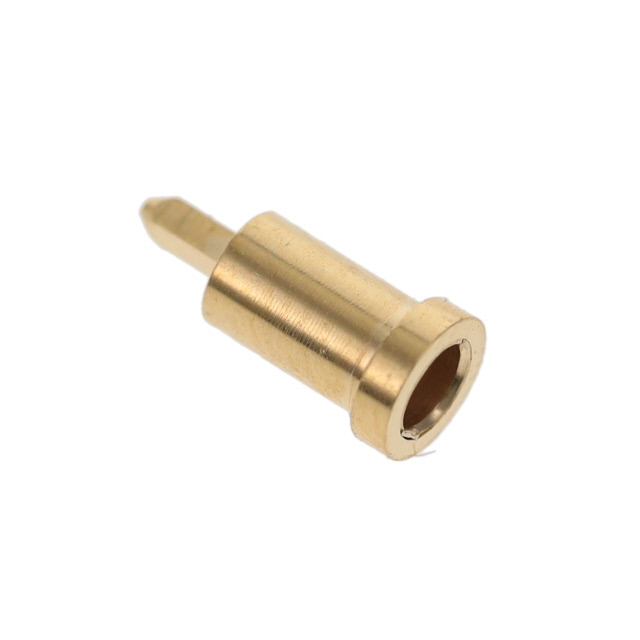

Mill-Max Manufacturing Corp. 0367-0-15-15-23-27-10-0	-55 C	125 °C	Standard Tail	0.125 in	3.18 mm	1.02 mm	0.04 in	0.285 in	7.24 mm	0.045 "	1.65 mm	0.065 "	1.14 mm	Press-Fit	0.81 mm	Square	0.032 in	0.14 in	3.56 mm	Gold	2.24 mm	0.088 "	0.76 Ám	30 Áin	Beryllium Copper
