A2E250 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
AC AXIAL FAN
| Part | Material - Blade | Current Rating (Amps) | Fan Type | Width [x] | Termination | Ingress Protection | Size / Dimension | Size / Dimension [diameter] | Voltage - Rated | Air Flow | Air Flow | Bearing Type | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | RPM | Static Pressure | Static Pressure | Features | Approval Agency | Power (Watts) | Width | Width [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

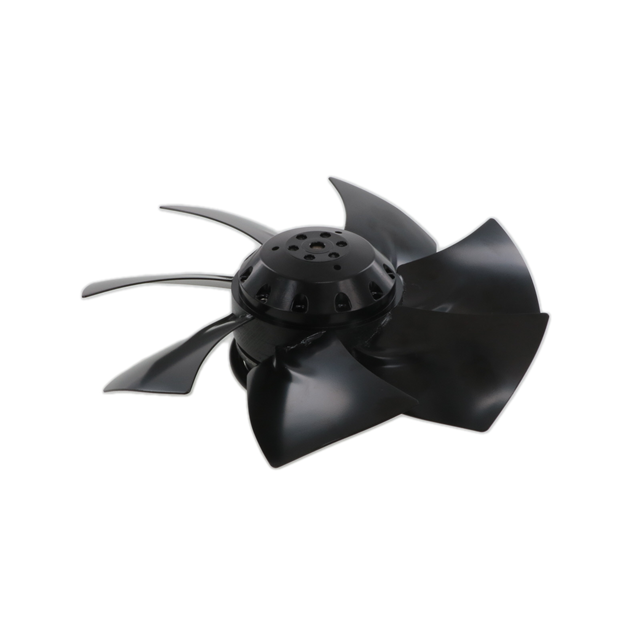

 ebm-papst Inc. | Steel | 660 mA | Tubeaxial | 75.5 mm | 4 Wire Leads | IP44 | Round | 251 mm | 230 VAC | 1072 CFM | 30.02 m³/min | Ball | 50 °C | -25 °C | -25 °C | 50 °C | 2600 RPM | 0.341 in H2O | 85 Pa | Capacitor Thermal Overload Protector (TOP) | CCC CE EAC | 150 W | ||

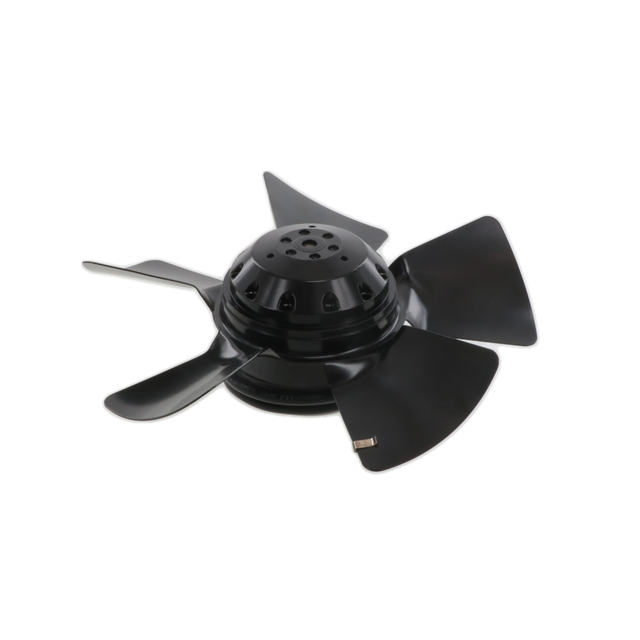

 ebm-papst Inc. | Steel | 660 mA | Tubeaxial | 4 Wire Leads | IP44 | Round | 251 mm | 230 VAC | 1160.3 CFM | 32.49 m³/min | Ball | 50 °C | -25 °C | -25 °C | 50 °C | 2600 RPM | 0.341 in H2O | 85 Pa | Capacitor Thermal Overload Protector (TOP) | CE EAC | 150 W | 74 mm | ||

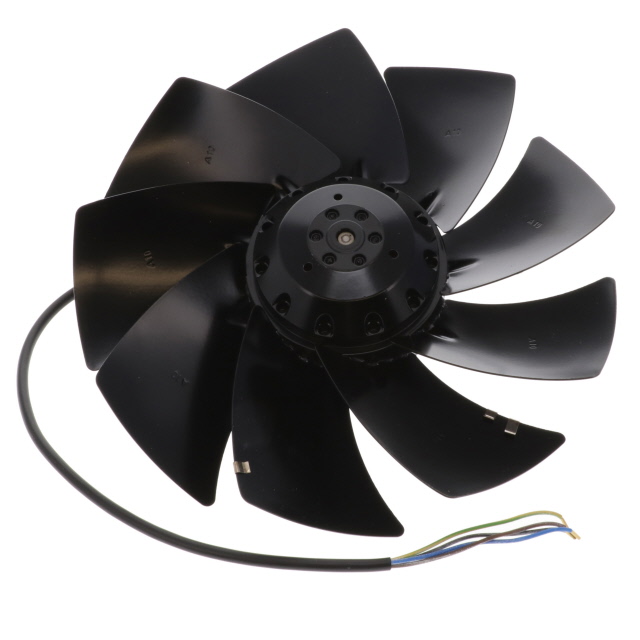

 ebm-papst Inc. | Steel | 1.02 A | Tubeaxial | 4 Wire Leads with Splice Terminals | IP44 | Round | 250 mm | 115 VAC | Ball | -25 °C | 80 °C | 2500 RPM | 0.602 in H2O | 150 Pa | Capacitor Thermal Overload Protector (TOP) | CE CSA UL | 115 W | 84.5 mm |
