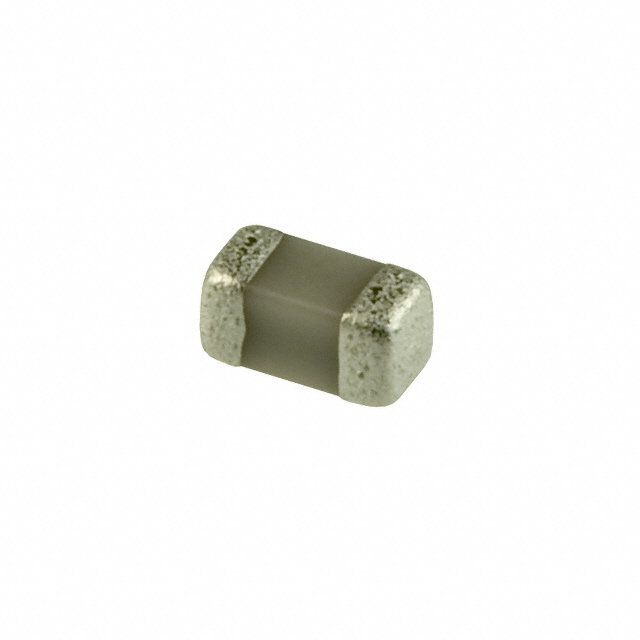

ECJ-1VC Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP CER 10PF 100V C0G/NP0 0603

Part	Capacitance	Applications	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Temperature Coefficient	Voltage - Rated	Thickness (Max) [Max] [z]	Thickness (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Tolerance
Panasonic Electronic Components ECJ-1VC2A100D	10 pF	General Purpose	MLCC Surface Mount	0.031 in	1.6 mm	0.8 mm	0.063 "	0.5 pF	C0G NP0	100 V	0.035 in	0.9 mm	-55 C	125 °C	1608 Metric	0603
Panasonic Electronic Components ECJ-1VC1H391J	390 pF	General Purpose	MLCC Surface Mount	0.031 in	1.6 mm	0.8 mm	0.063 "	5 %	C0G NP0	50 VDC	0.035 in	0.9 mm	-55 C	125 °C	1608 Metric	0603
Panasonic Electronic Components ECJ-1VC1H560J	56 pF	General Purpose	MLCC Surface Mount	0.031 in	1.6 mm	0.8 mm	0.063 "	5 %	C0G NP0	50 VDC	0.035 in	0.9 mm	-55 C	125 °C	1608 Metric	0603
Panasonic Electronic Components ECJ-1VC1H100D	10 pF	General Purpose	MLCC Surface Mount	0.031 in	1.6 mm	0.8 mm	0.063 "	0.5 pF	C0G NP0	50 VDC	0.035 in	0.9 mm	-55 C	125 °C	1608 Metric	0603
Panasonic Electronic Components ECJ-1VC1H080D	8 pF	General Purpose	MLCC Surface Mount	0.031 in	1.6 mm	0.8 mm	0.063 "	0.5 pF	C0G NP0	50 VDC	0.035 in	0.9 mm	-55 C	125 °C	1608 Metric	0603
Panasonic Electronic Components ECJ-1VC1H221J	220 pF	General Purpose	MLCC Surface Mount	0.031 in	1.6 mm	0.8 mm	0.063 "		C0G NP0	50 VDC	0.035 in	0.9 mm	-55 C	125 °C	1608 Metric	0603	Ý5%
Panasonic Electronic Components ECJ-1VC2A470J	47 pF	General Purpose	MLCC Surface Mount	0.031 in	1.6 mm	0.8 mm	0.063 "	5 %	C0G NP0	100 V	0.035 in	0.9 mm	-55 C	125 °C	1608 Metric	0603
Panasonic Electronic Components ECJ-1VC1H060D	6 pF	General Purpose	MLCC Surface Mount	0.031 in	1.6 mm	0.8 mm	0.063 "	0.5 pF	C0G NP0	50 VDC	0.035 in	0.9 mm	-55 C	125 °C	1608 Metric	0603
Panasonic Electronic Components ECJ-1VC1H050C	5 pF	General Purpose	MLCC Surface Mount	0.031 in	1.6 mm	0.8 mm	0.063 "	0.25 pF	C0G NP0	50 VDC	0.035 in	0.9 mm	-55 C	125 °C	1608 Metric	0603
Panasonic Electronic Components ECJ-1VC1H010C	1 pF	General Purpose	MLCC Surface Mount	0.031 in	1.6 mm	0.8 mm	0.063 "	0.25 pF	C0G NP0	50 VDC	0.035 in	0.9 mm	-55 C	125 °C	1608 Metric	0603
