R12549 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMA / SQUARE FLANGE PLUG RECEPTA
| Part | Body Material | Mating Cycles | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Connector Type | Center Contact Material | Contact Termination | Features | Connector Style | Number of Ports | Shield Termination | Frequency - Max [Max] | Fastening Type | Housing Color | Mounting Type | Mounting Feature | Impedance | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

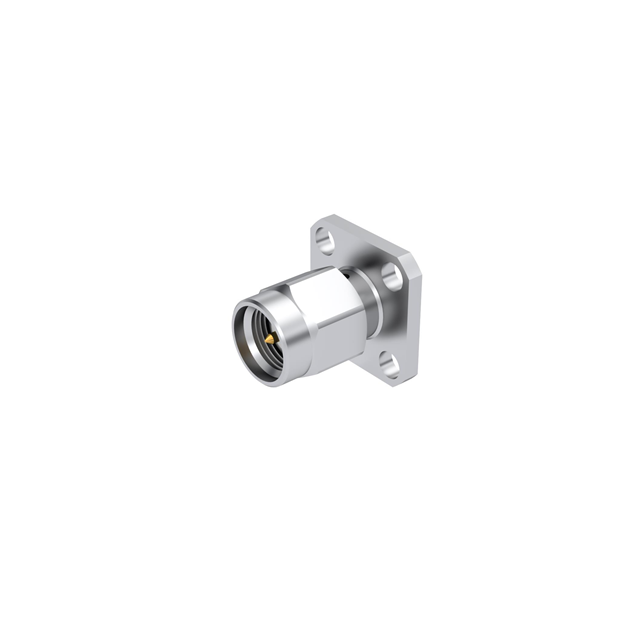

 Radiall USA, Inc. | Stainless Steel | 500 | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 V | Plug Male Pin | Beryllium Copper | Solder | Extended Insulation | SMA | 1 | Solder | 18 GHz | Threaded | Silver | Panel Mount Through Hole | Flange | 50 Ohms | |

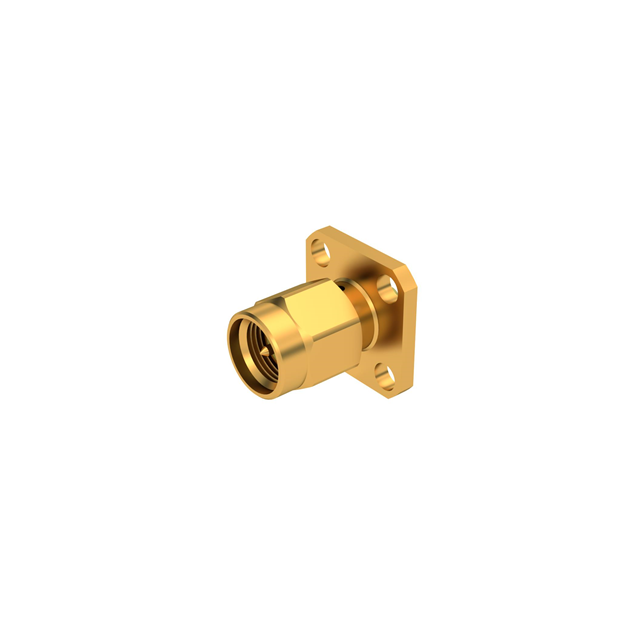

 Radiall USA, Inc. | Stainless Steel | 500 | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 V | Plug Male Pin | Beryllium Copper | Solder | Extended Insulation | SMA | 1 | Solder | 18 GHz | Threaded | Gold | Panel Mount Through Hole | Flange | 50 Ohms | Gold |

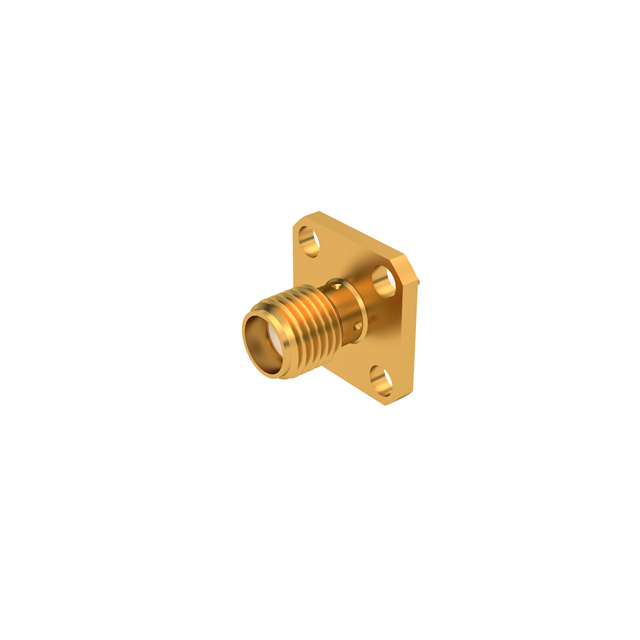

 Radiall USA, Inc. | Stainless Steel | 500 | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 V | Female Socket Jack | Beryllium Copper | Solder | Extended Insulation | SMA | 1 | Solder | 18 GHz | Threaded | Gold | Panel Mount Through Hole | Flange | 50 Ohms | Gold |
Radiall USA, Inc. | Stainless Steel | 500 | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 V | Female Socket Jack | Beryllium Copper | Solder | Extended Insulation | SMA | 1 | Solder | 18 GHz | Threaded | Gold | Panel Mount Through Hole | Flange | 50 Ohms | Gold |

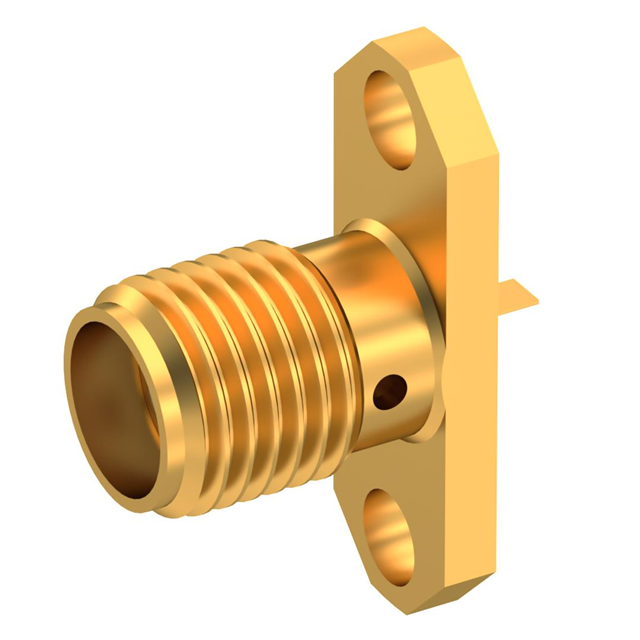

Radiall USA, Inc. | Stainless Steel | 500 | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 V | Female Socket Jack | Beryllium Copper | Solder Tab | SMA | 1 | Solder | 18 GHz | Threaded | Gold | Panel Mount Through Hole | Flange | 50 Ohms | Gold | |
 Radiall USA, Inc. | Stainless Steel | 500 | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 V | Female Socket Jack | Beryllium Copper | Solder Tab | SMA | 1 | Solder | 18 GHz | Threaded | Gold | Panel Mount Through Hole | Flange | 50 Ohms | Gold | |
 Radiall USA, Inc. | Stainless Steel | 500 | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 V | Plug Male Pin | Beryllium Copper | Solder | Extended Insulation | SMA | 1 | Solder | 18 GHz | Threaded | Gold | Panel Mount Through Hole | Flange | 50 Ohms | Gold |
