G-INS-M12 Series

Catalog

CABLE GLANDS, STRAIN RELIEFS & CORD GRIPS G-INS-M12-S68N- NNES-S

Part	Includes	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max]	Thread Length	Thread Length	Type	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Thread Size	Ingress Protection	Material

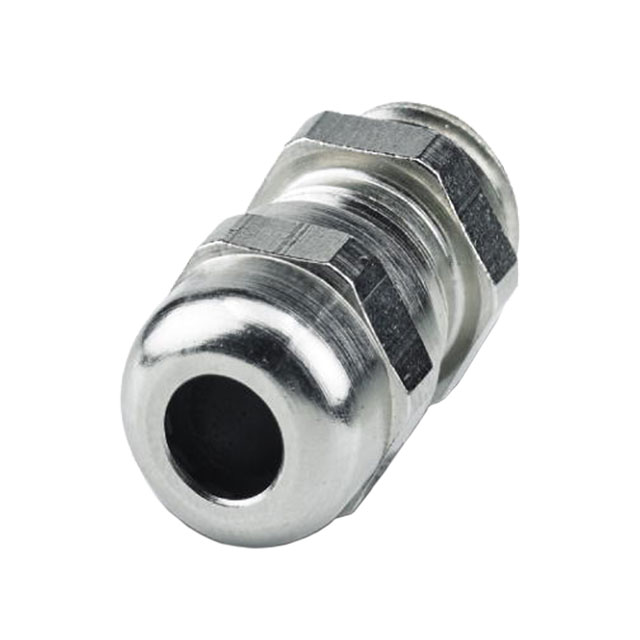

Phoenix Contact 1411160	O-Ring Seal	6.5 mm	0.256 in	6 mm	0.236 in	Cable Gland	Silver	3 mm	0.118 in	-40 C	100 °C	M12	IP66 IP68 IP69	Brass Nickel Plated

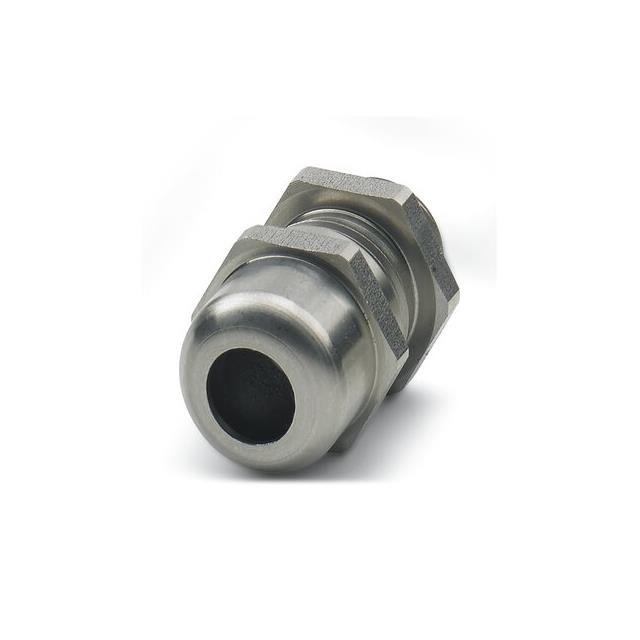

Phoenix Contact 1424541	O-Ring Seal	6.5 mm	0.256 in	6 mm	0.236 in	Cable Gland	Silver	3 mm	0.118 in	-40 C	100 °C	M12x1.5	IP66 IP68 IP69	Stainless Steel
