470047YY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

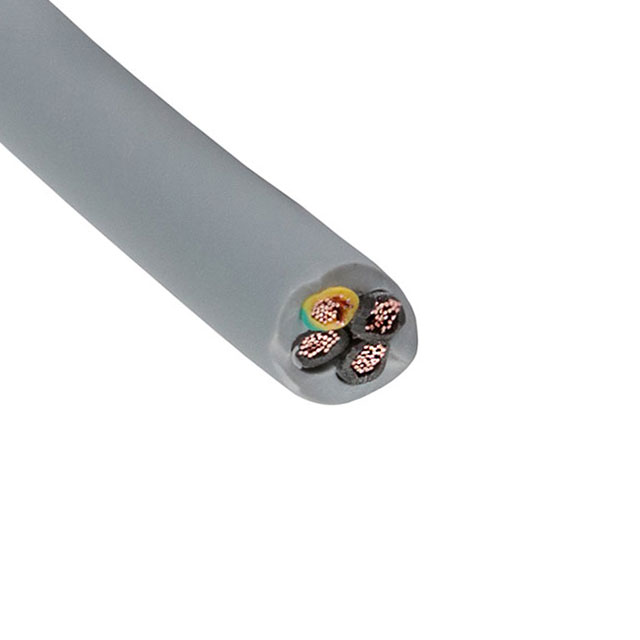

MULTICONDUCTOR CABLE, PRO-MET®, YY CONTROL, UNSHIELDED, 4 CONDUCTOR, 19 AWG, 0.75 MM², 328 FT
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Conductor Material | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Number of Conductors | Conductor Insulation | Voltage | Wire Gauge | Jacket Color | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 0.243 " | 6.17 mm | Chemical Resistant Oil Resistant UV Resistant | Copper Bare | Poly-Vinyl Chloride (PVC) | 0.007 in | 30 | 0.73 mm | 0.0287 in | Multi-Conductor | 4 | Poly-Vinyl Chloride (PVC) | 300 V | 19 AWG | Gray | 100 m | 328.1 ft | -40 °C | 80 C |
