2213611 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
MINI HERM ASSY WITH POSTS - SELE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Features | Contact Material | Number of Positions | Housing Color | Mounting Type | Voltage Rating | Housing Material | Pitch [x] | Pitch [x] | Current Rating (Amps) | Connector Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

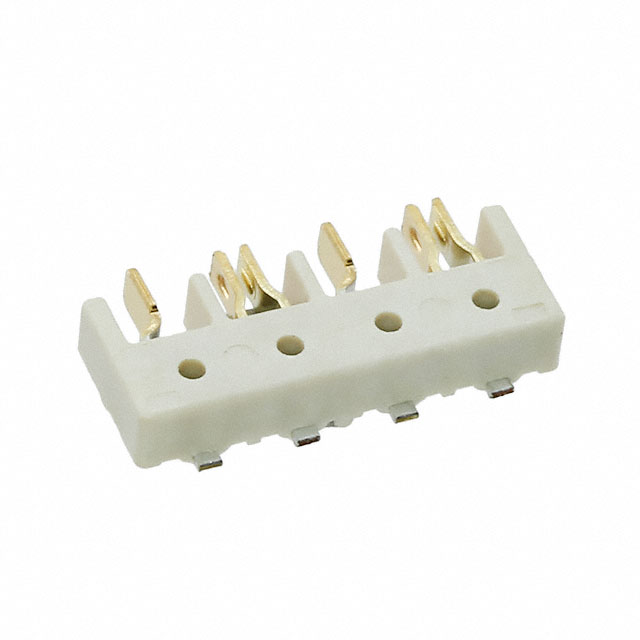

 TE Connectivity Raychem Cable Protection | -40 °C | 105 ░C | Solder | Board Guide | Brass Copper Alloy | 4 | Natural | Board Edge Right Angle Surface Mount | 300 VDC | Thermoplastic | 3 mm | 0.118 in | 3 A | Blade and Receptacle Hermaphroditic | Gold |

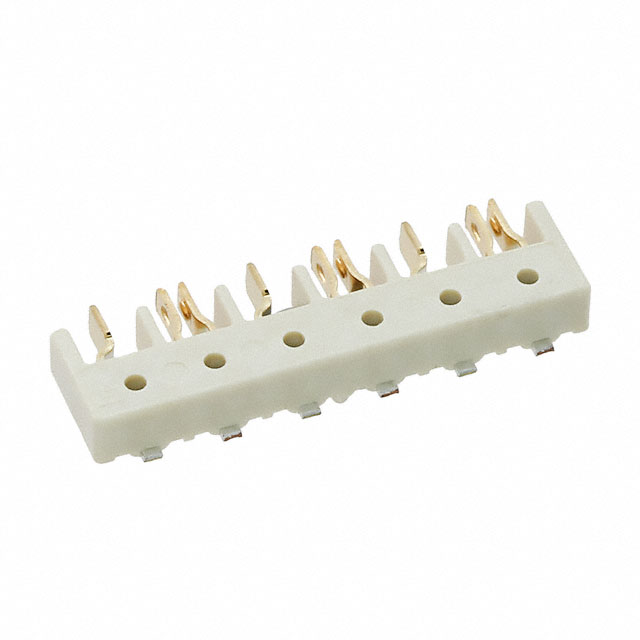

 TE Connectivity Raychem Cable Protection | -40 °C | 105 ░C | Solder | Board Guide | Brass Copper Alloy | 6 | Natural | Board Edge Right Angle Surface Mount | 300 VDC | Thermoplastic | 3 mm | 0.118 in | 3 A | Blade and Receptacle Hermaphroditic | Gold |
 TE Connectivity Raychem Cable Protection | -40 °C | 105 ░C | Solder | Board Guide | Brass Copper Alloy | 2 | Natural | Board Edge Right Angle Surface Mount | 300 VDC | Thermoplastic | 3 mm | 0.118 in | 3 A | Blade and Receptacle Hermaphroditic | Gold |
